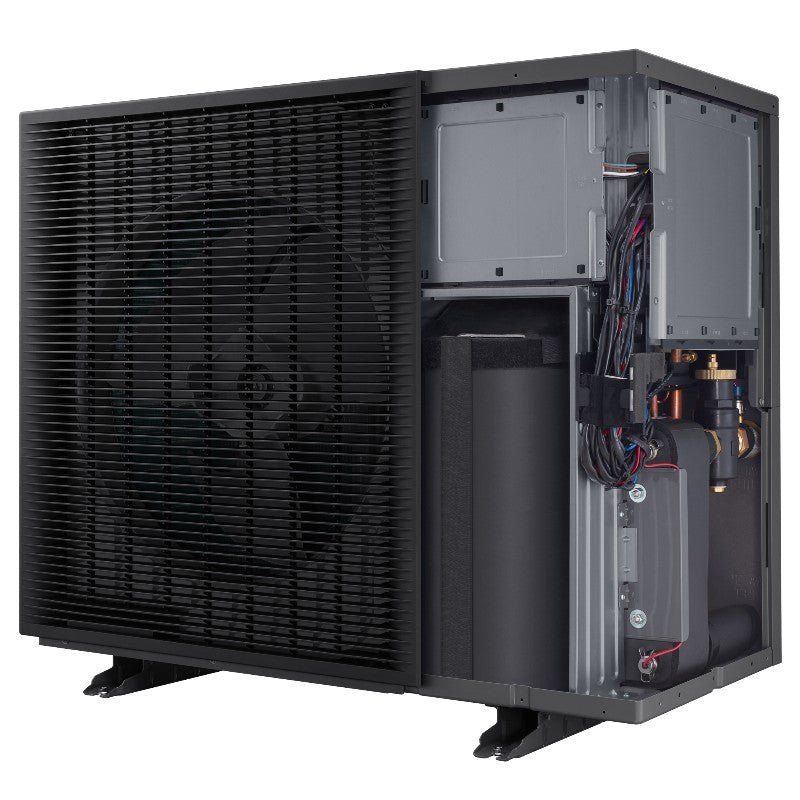

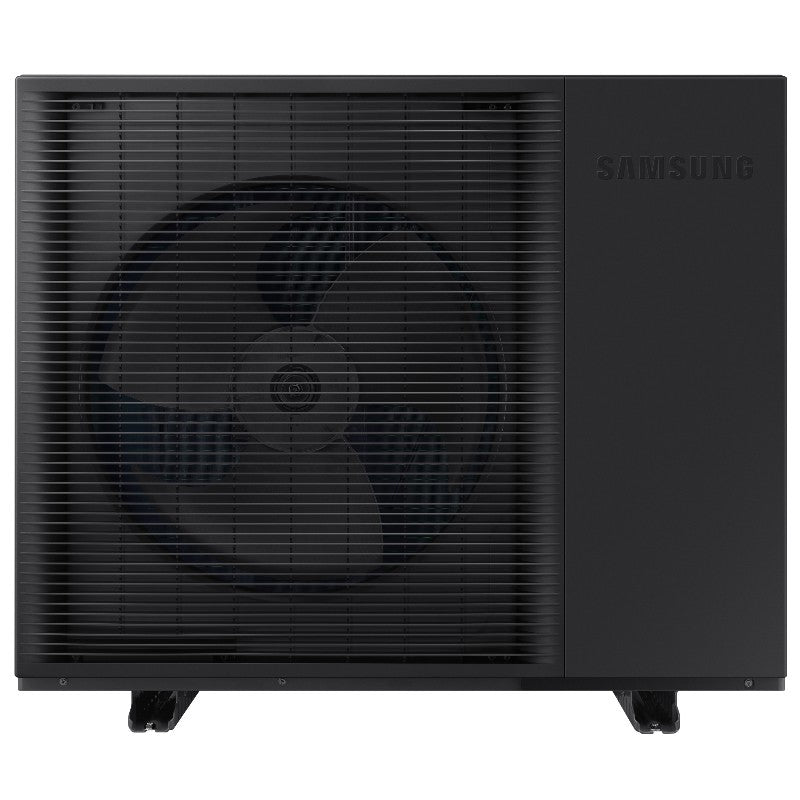

Experience the reliability and efficiency of the Samsung 16kW Gen 7 R290 Heat Pump. This single-fan monobloc unit is the first in the Samsung range to use the lower GWP refrigerant, R290. Samsung's heat pumps are known for their strong performance in the UK and come with a 7-year warranty upon completion of their training.

The use of R290 ensures a longer shelf life for this unit, especially when compared to the R32 range which is due to be phased out in 2026. These units offer flexible installation options, compatible with both pre-plumbed cylinders and standard DHW tanks. If you opt for this, you can also install the new MIM control board, featuring a standard wifi controller.

Keep in mind, as a standalone heat pump, you will need to purchase all additional components separately to the outdoor unit.

*For more information on the MIM-EN control board and compatible pre-plumbed cylinders, please contact the Heat Team.*

Heat Pump Specifications
- Nominal capacity: 16.00kW
- Output at W45/A-2: 14.61kW
- Power input W35/A-7: 5.52kW
- Compressor type: Rotary
- Refrigerant type: R290
- Refrigerant volume: 1.25kg
- Nominal flow rate: 46.20 L/m
- Minimum water volume: 50 L

Product Details
- Product code: AE160CXYDEK/EU
- Max flow temp: 75°C
- Min operating temp: -25°C
- Max operating temp: 35°C
- Electrical supply: 220-240V
- Sound power level: 65 dB(A)
- Water In/Out: BSPP 1" male
- Product Dimensions (H x W x D): 1018mm x 1270mm x 530mm
- Net weight: 140kg
- Shipping weight: 160kg

MCS Listed SCOPs
- @35°C: 4.57
- @40°C: 4.29
- @45°C: 4.00
- @50°C: 3.72
- @55°C: 3.43
- @60°C: 3.12
- @65°C: 2.81

This heat pump requires the additonal purchase of "Samsung Mono Gen 6 Control Kit". This is available in the add on section or by searching our product section.

Samsung Mono R290 1Phase Manufacturers Installation Manual
