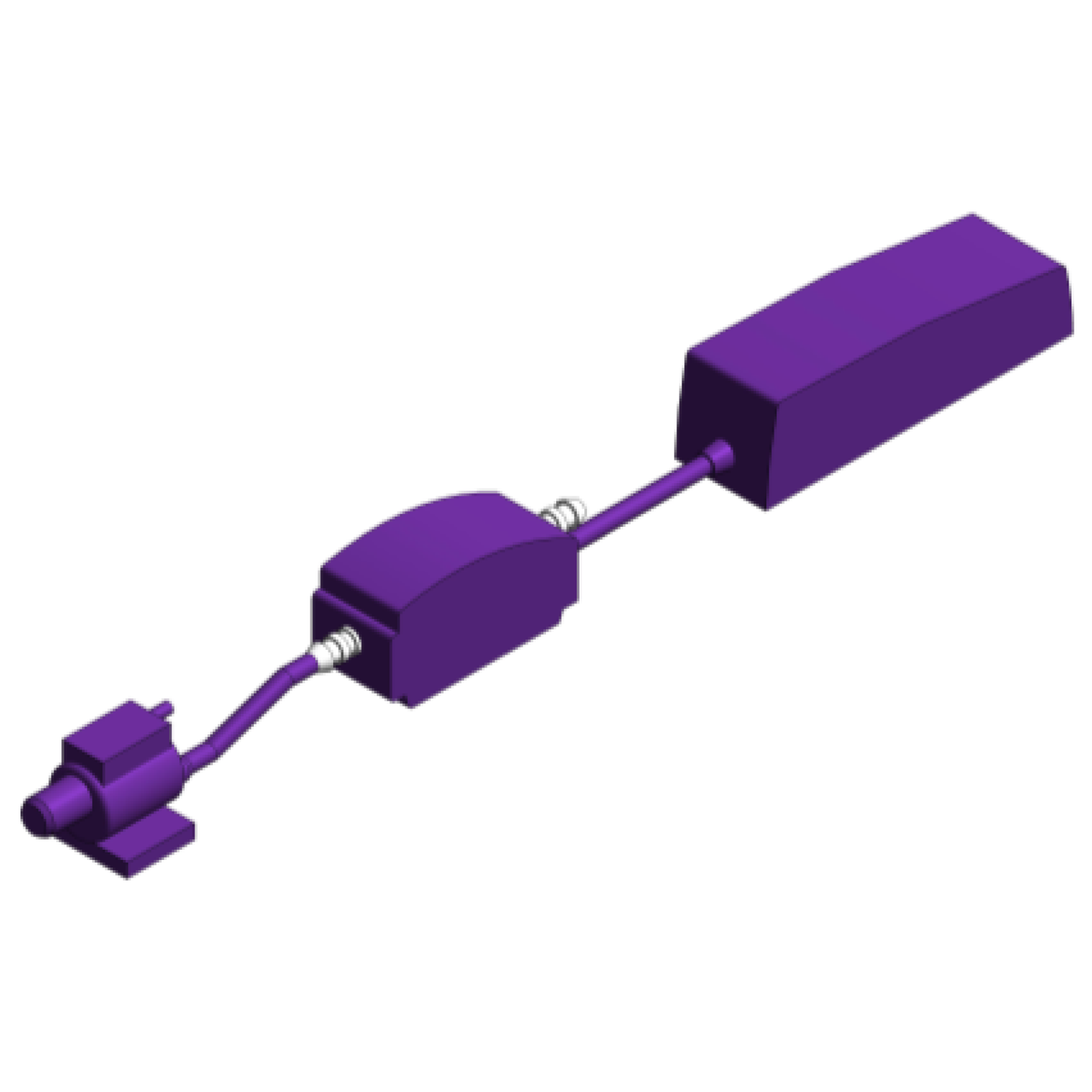

Aspen Micro-v i4 Intelligent Condensate Pump (FP1200)

The Aspen Micro-v i4 is a compact, on-demand condensate removal pump for air conditioning units. It adjusts its switching levels and motor speed to the flow of condensate, so it only runs when it needs to, and it is small enough to install directly inside the indoor unit.

• Suitable for units up to 19.3kW (66,000 Btu/h)
• High wall split, ducted, floor-standing and chassis units
• 19 dB(A) at 1m, with soft start and stop
• Floatless water sensor, no breather tube needed
• Universal voltage power supply (100-250 VAC, 50/60 Hz)
• Self-priming, fully potted, thermal protection, IP24
• Can be mounted in multiple orientations, with a visual indicator to confirm correct installation

What's included

• Water sensor with 850mm interface cable, plug and removable bracket
• Adaptive pump with 1m interface cable and 1m of 6mm ID violet tube (anti-siphon fitted)
• Universal voltage power supply with 200mm plug-and-play fly lead and 1.4m power cable
• Pump bracket and sleeve
• 1A fuse, inline filter, 90° elbow drain connector and fixing kit
• Installation manual

Specification and price

Options

Aspen's suggested accessories for this pump are the FP2002 rubber adaptor, FP2006 90° long arm bend and FP2038 tube to soil stack adaptor. For an elbow-mounted pump hidden in trunking, see the Aspen Silent+ Mini Lime.

Installation and compliance

Install to Aspen's instructions and the indoor unit manufacturer's requirements. The pump needs a permanent mains supply, so the electrical connection should be made by a competent person in line with BS 7671. Wire the safety switch to the unit's alarm or cut-out circuit where possible, and run the discharge to a suitable drain.

Delivery and collection

Free UK delivery on orders over £50, £4.99 on orders under £50. Free collection from our Lincoln unit, usually ready within 24 hours.
