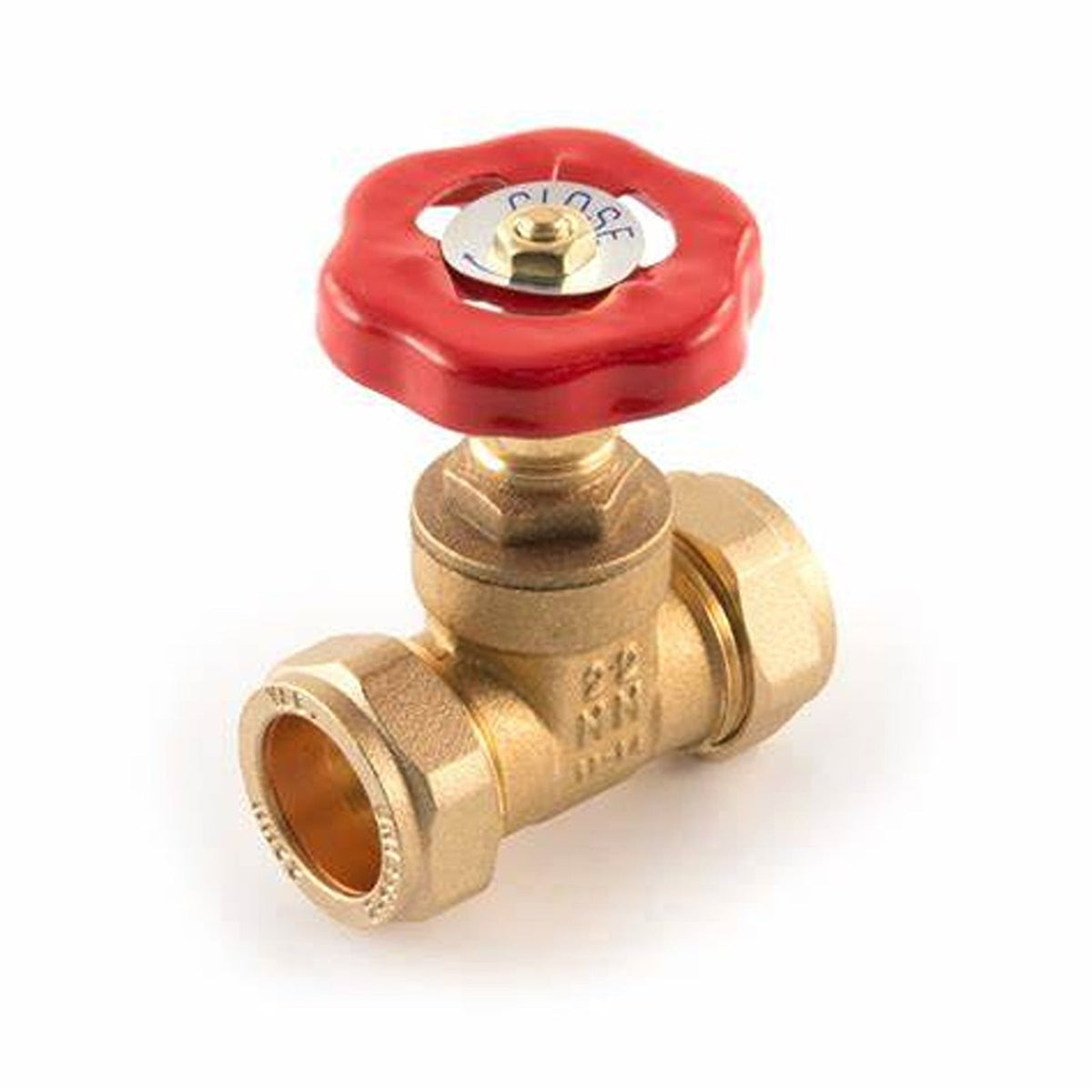

Brass Gate Valve – Compression x Compression (15mm, 22mm, 28mm)

A brass wheelhead gate valve with compression connections on both ends, for isolating sections of copper pipework on water and heating systems. Choose 15mm, 22mm or 28mm from the size options.

• Brass body with compression nuts and olives on both ends
• Connects directly to 15mm, 22mm or 28mm copper tube
• Wheelhead handle, turned to open and close
• Gate design gives low flow restriction when fully open
• Stocked at our Lincoln warehouse

What's included

1 x brass gate valve in the size selected, with compression nuts and olives fitted.

Sizes and prices

Options

Select the size from the options above. For gas isolation use a gas-rated valve such as our yellow handled gas lever ball valve; this gate valve is not for gas.

Installation and compliance

Fit to clean, square-cut copper tube to BS EN 1057 and tighten compression joints as you would any compression fitting. Gate valves are intended for isolation (fully open or fully closed), not for regulating flow. Work on water supply and heating systems should be carried out by a competent person in line with the Water Supply (Water Fittings) Regulations and Building Regulations.

Delivery and collection

Free UK delivery on orders over £50, £4.99 on orders under £50. Free collection from our Lincoln unit (Leafbridge Business Park, LN6 9WG), usually ready within 24 hours.
