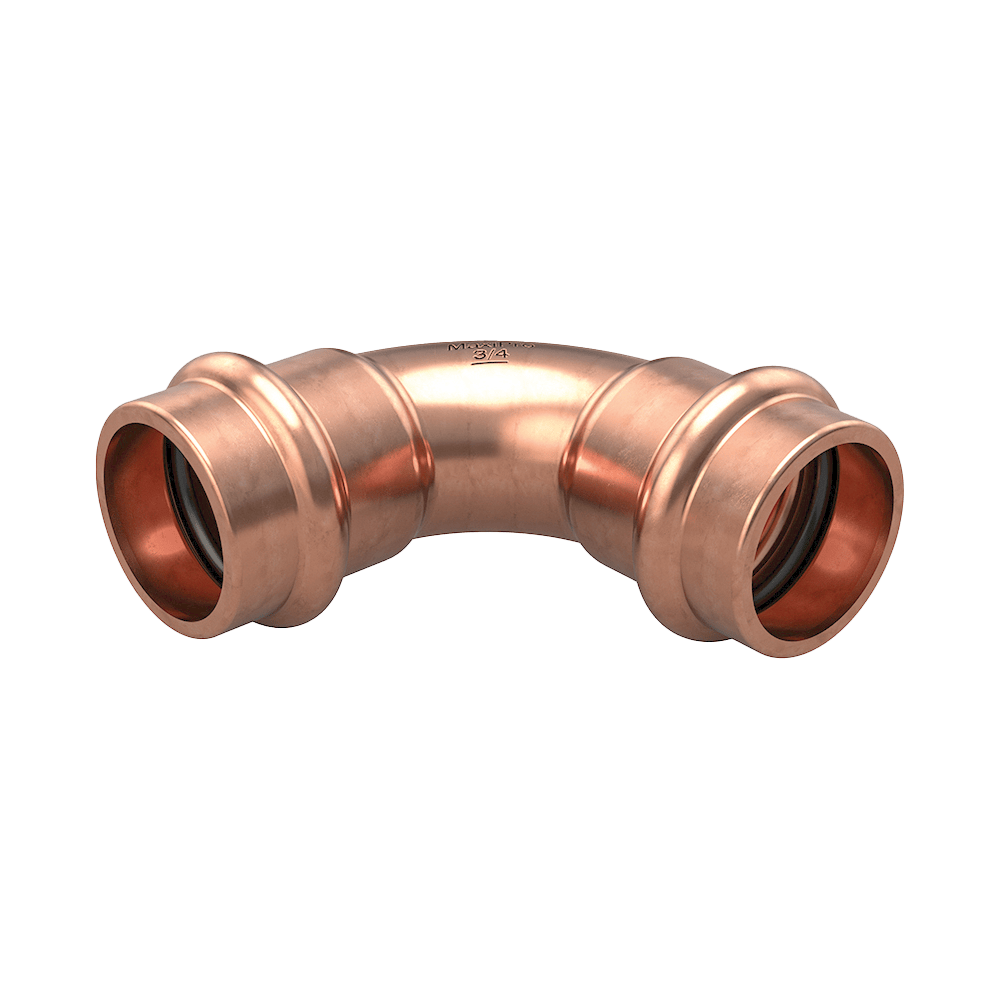

Conex Bänninger >B< MaxiPro 90° Elbow

A flame-free 90° press elbow from the Conex Bänninger >B< MaxiPro range, for joining imperial (inch) refrigeration-grade copper tube on air conditioning, heat pump and refrigeration pipework. Pressing replaces brazing, so there is no hot work, no nitrogen purge and no fire risk on site. Sold individually.

Key points

• Copper 90° bend with press ends both sides, for 1/4", 3/8", 1/2" and 5/8" OD ACR copper tube
• Maximum operating pressure 48 bar (700 psi), suitable for high-pressure refrigerants such as R32 and R410A (see the MaxiPro refrigerants table for the full approved list)
• Operating temperature -40°C to +120°C
• HNBR sealing O-ring
• No flame, brazing or hot-work permit needed

What's included

1 x MaxiPro 90° elbow in the size selected. (Conex Bänninger bags these in 5s or 3s; we sell them individually.)

Specification and prices

Options

Choose the tube size from the Size option above. Both ends are the same size.

Installation and compliance

MaxiPro fittings must be pressed with a MaxiPro-approved press tool and the correct MaxiPro jaws; check the tool compatibility information in the technical brochure before use. Tube must be clean, deburred, fully inserted and marked to the correct insertion depth, as set out in the installation instructions. Work on refrigerant circuits must be carried out by an F-Gas certified engineer, and the system pressure and leak tested before charging.

Delivery and collection

Free UK delivery on orders over £50, £4.99 under £50. Free collection from our Lincoln unit (Leafbridge Business Park, LN6 9WG), usually ready within 24 hours.

Manufacturer datasheet is in the PDF downloads at the bottom of this page.
