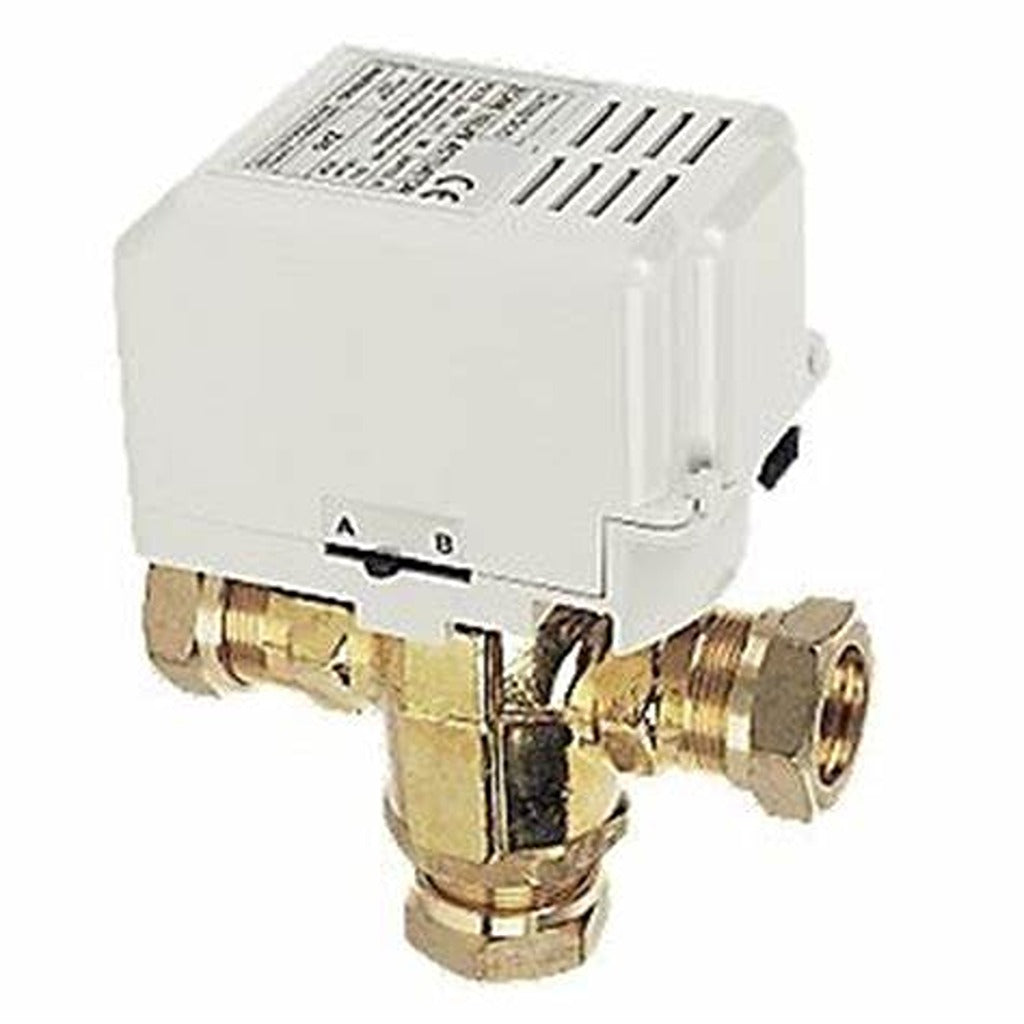

Drayton ZA3 3 Port Motorised Diverter Valve 22mm

A 22mm 3 port motorised diverter valve from Drayton (part number 27102, formerly listed as ZA3/679-3). It switches flow between the heating and hot water circuits in a Y-plan style system, sending flow to port A when the motor is energised and returning to port B under spring return. The snap-on actuator can be removed without draining the system.

Key points

• 22mm compression connections, forged brass body
• 230V a.c. motor, approximately 5 W
• Energise to open port A, spring return to port B
• Motor run time 12 seconds, spring return 6 seconds
• Snap-on, replaceable actuator and motor
• Manual lever and valve position indicator
• 100% tight shut-off
• Industry-standard wiring, so it replaces most makes of diverter valve

What's included

• 1 x Drayton 22mm 3 port diverter valve body with ZA3 actuator fitted

Specification

Installation and compliance

Fit in line with the Drayton installation instructions and BS 7671 for the electrical connection. Electrical work should be carried out by a competent person and the system should be commissioned in line with Building Regulations Part L.
