Inta 28mm Automatic Bypass Valve (Straight or Angled)
£20.99
Taxes included.
Free Shipping
On orders over £100* (On Select Products)
Secure Payment
100% secure checkout
Easy Returns
30-day return policy
Pickup available at F3 Castings Way, Leafbridge, Castings Way, Lincoln
Usually ready in 24 hours

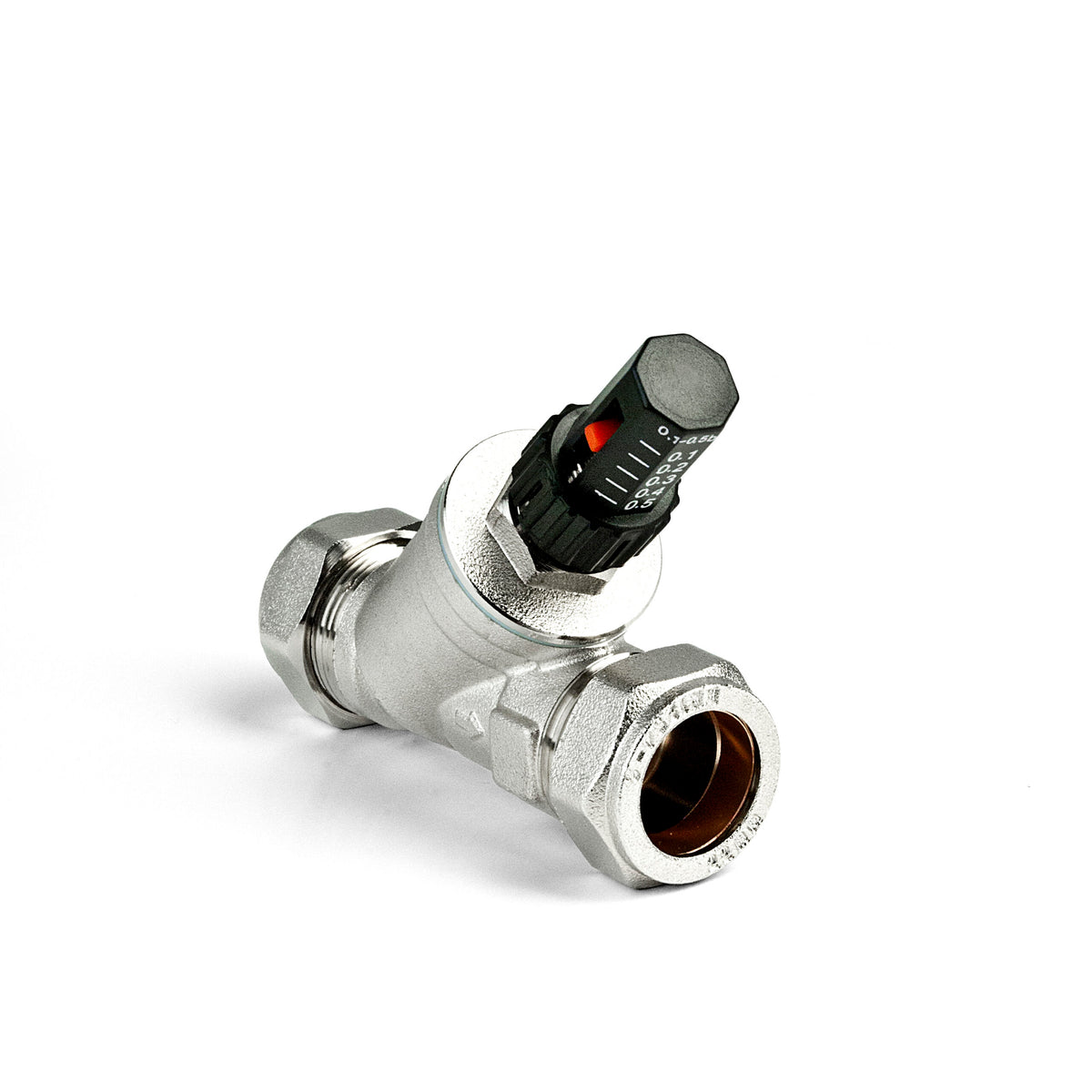

Inta 28mm Automatic Bypass Valve
The Inta automatic bypass valve is a differential pressure valve for wet heating systems. It opens automatically as system pressure rises when thermostatic radiator valves or zone valves close, so water keeps circulating through the boiler or heat pump and the pump isn't left running against a closed head. The opening point is set on a visual dial on the valve body. Choose the straight (in-line) ABPS28CP or the angled (90°) ABPA28CP to suit your pipe run.
Key points
- Automatic differential pressure bypass, no electrical connection needed
- Adjustable setting 0.1 to 0.5 bar with a visual dial
- Stabilises circulation, flow rate and pump pressure
- Protects the pump and maintains minimum flow through the heat source
- 28mm compression connections, straight or angled pattern
What's included
- 1 x Inta 28mm automatic bypass valve in your chosen style
Specification and price
| Style | Inta code | Connections | Price (inc VAT) |
|---|---|---|---|
| Straight | ABPS28CP | 28mm compression | £20.99 |
| Angled | ABPA28CP | 28mm compression | £22.99 |
| Differential pressure range | 0.1 to 0.5 bar |
| Flow capacity | 1 to 5 m³/h |
| Max inlet pressure (dynamic) | 10 bar |
| Max inlet temperature | 100°C |
Options
Select Straight for an in-line fit or Angled for a 90° fit using the Style selector. A 22mm version is also made by Inta; ask us if you need it.
Installation and compliance
Fit across the flow and return between the pump and the first TRV or zone valve, in line with the flow direction marked on the valve, and set the dial to the differential pressure from your system calculation. Install to the manufacturer's instructions and the boiler or heat pump manufacturer's minimum flow requirements. Installation should be carried out by a competent heating engineer.
Delivery and collection
Free UK delivery on orders over £50; £4.99 on orders under £50. Free collection from our Lincoln unit (Leafbridge Business Park, LN6 9WG), usually ready within 24 hours.
Manufacturer datasheet is in the PDF downloads at the bottom of this page.
