LK 527 Heat Pump 3 Way Diverter Valve Set 35mm (KVS 25)
£279.99
Taxes included.
Free Shipping
On orders over £100* (On Select Products)
Secure Payment
100% secure checkout
Easy Returns
30-day return policy
Pickup available at F3 Castings Way, Leafbridge, Castings Way, Lincoln
Usually ready in 24 hours

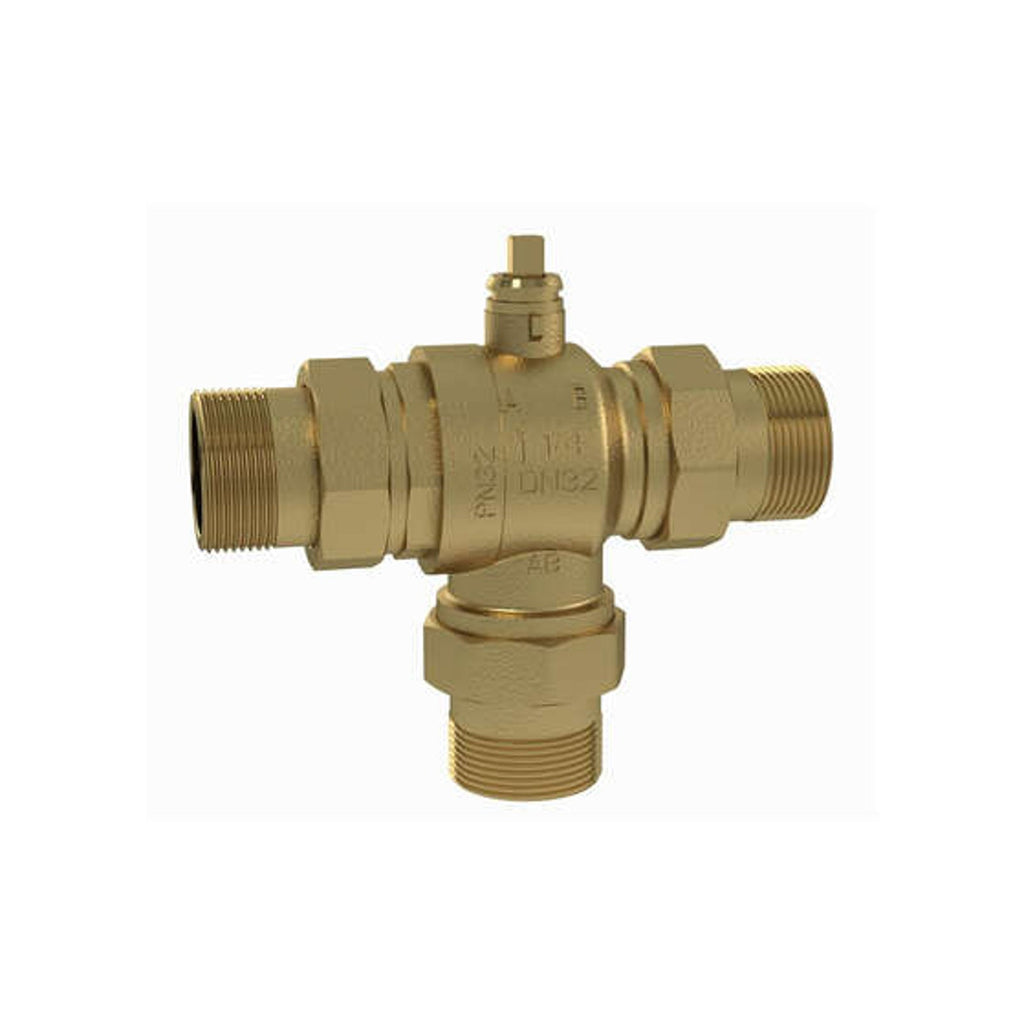

LK 527 Heat Pump 3 Way Diverter Valve Set – KVS 25 for 35mm Primaries

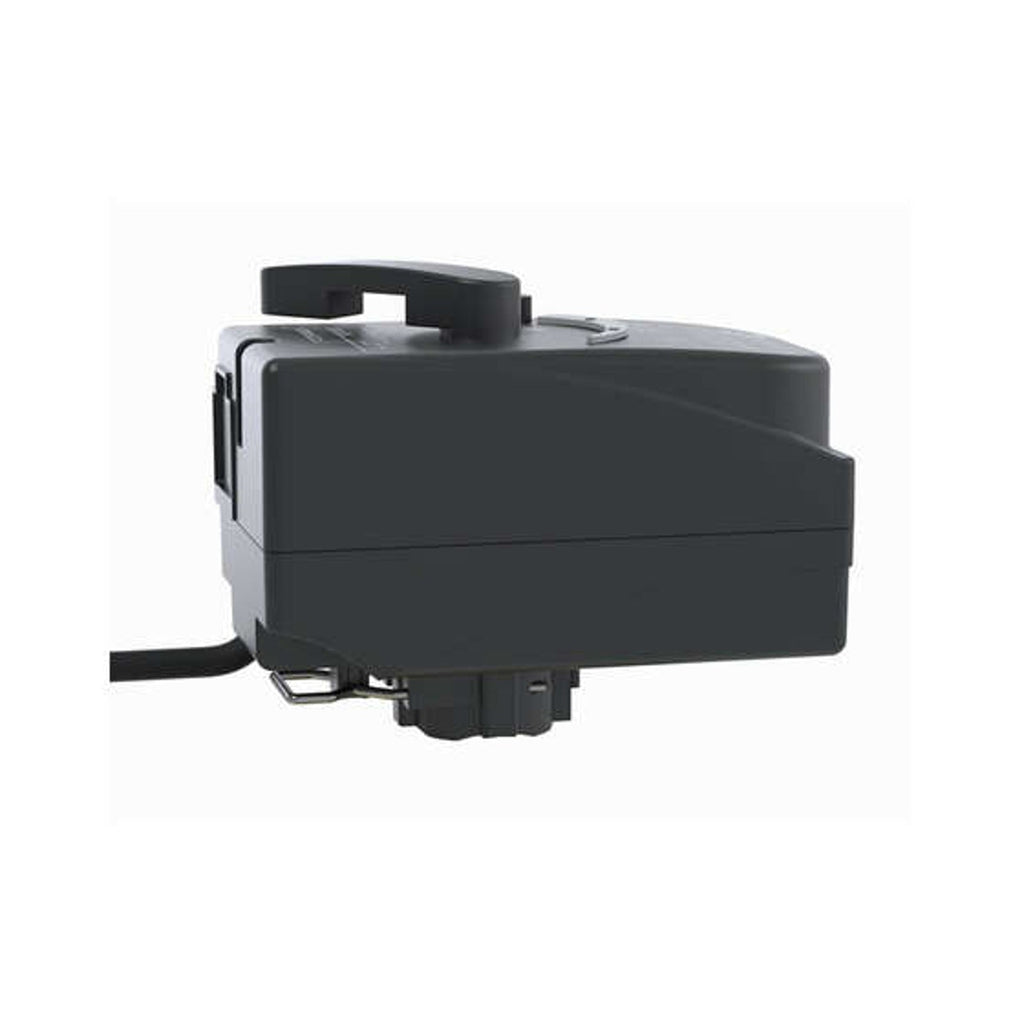

The LK Armatur 527 is a high-flow three-way diverter valve for larger heat pumps on 35mm primary pipework. With a KVS of 25 it has very low resistance, which helps maintain the high flow rates heat pumps need. It is paired with the LK 527 actuator (066284) and supplied in the UK by Firepower. The 1¼" KVS 25 valve body is also sold on its own as a replacement or spare.
Key points
- KVS 25 – high flow, low resistance for larger heat pumps
- 1¼" male connections, adapted to 35mm compression with standard merchant fittings
- Actuator wired with two switched lives (heating and hot water) – no permanent live needed
- Suitable for Midea / Clivet Edge F R290 units, which do not provide a permanent live
- 230 VAC, 50 Hz actuator, IP44, 3-pole SPDT signal contact
- Brass EN 12165 CW617N valve body
Wiring – LK 527 vs LK 525
The LK 527 uses a switched live for heating and a switched live for hot water. The LK 525 28mm set needs a permanent live plus a switched DHW live. On Midea / Clivet Edge F R290 heat pumps use the LK 527.
What's included
- Valve sets: LK 527 3-way valve body, KVS 25 (with 1¼" connections, or 1½" on the alternative option), plus LK 527 230 VAC actuator (066284)
- Valve body only option: the 1¼" KVS 25 valve body (066257) with no actuator – for replacing a body or fitting to an existing LK 527 actuator
- 1¼"/1½" to 35mm adaptors are not included – ask us if you need them
Specification and price
| Option | Parts | Price inc VAT |
|---|---|---|
| 1¼" valve (KVS 25) + actuator | 066257 + 066284 | £279.99 |
| 1½" valve + actuator (adapt to 35mm on site) | 066260 + 066284 | £239.99 |
| 1¼" valve body only (KVS 25), no actuator | 066257 | £189.99 |
| KVS | 25 (066257) |
|---|---|
| Actuator supply | 230 VAC, 50 Hz, IP44 |
| Wiring | Switched live heating + switched live DHW, neutral |
| Signal contact | 3-pole SPDT |
| Body material | Brass EN 12165 CW617N |
Options
For small and medium heat pumps on 28mm primaries with a permanent live available, the LK 525 28mm set (KVS 13) is the lower-cost choice. If you already have a working LK 527 actuator, choose the valve body only option.
Installation and compliance
Install to the manufacturer's instructions and the heat pump maker's wiring diagram. Electrical connections must be made by a competent person in line with BS 7671.
Delivery and collection
Free UK delivery on orders over £50 (£4.99 under £50). Free collection from our Lincoln unit, usually ready within 24 hours. Items not in stock are ordered in from Firepower.
Download: LK 527 heat pump diverter quick instructions (PDF)
