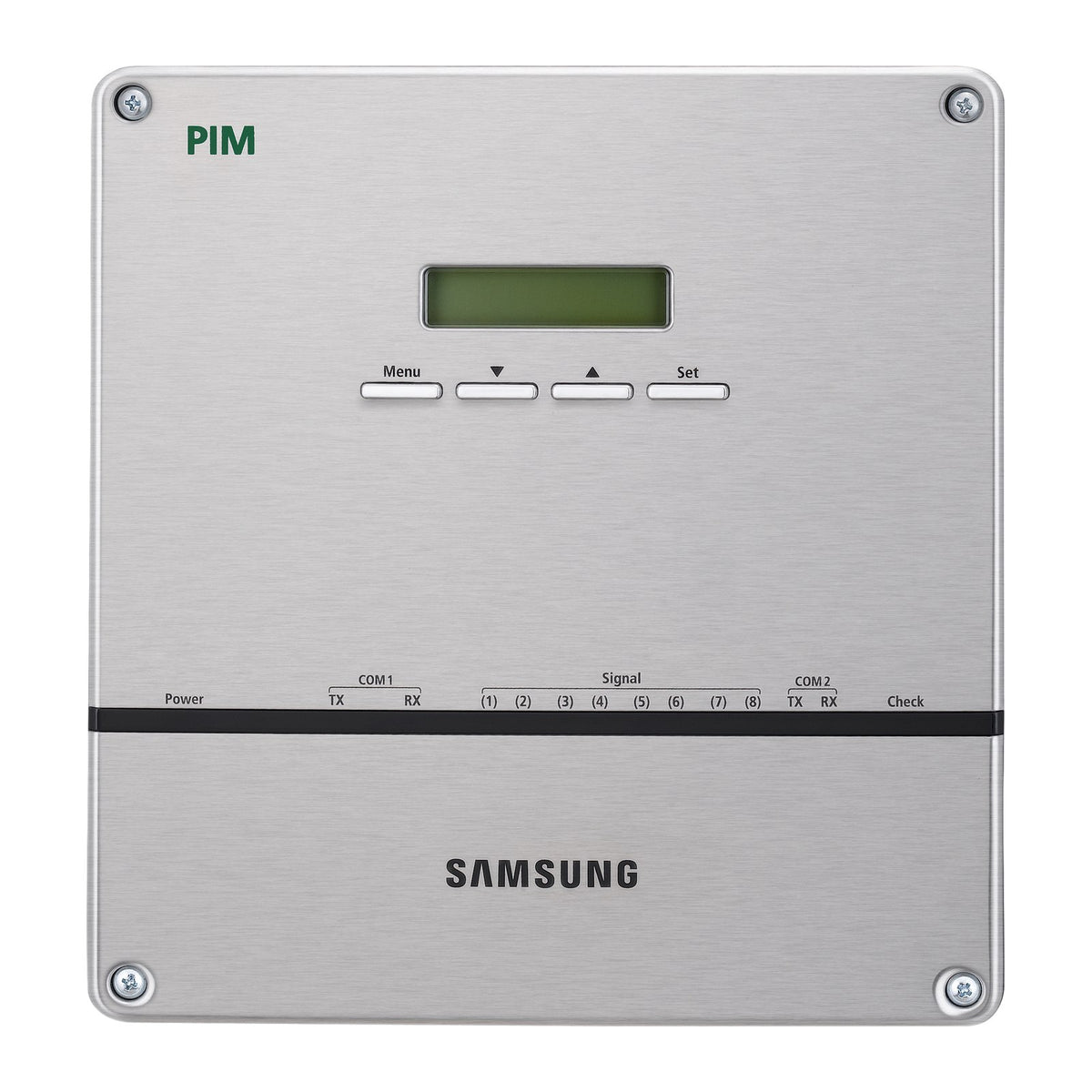

Samsung MIM-B16N Pulse Input Module
The Samsung pulse input module (PIM) connects up to 8 watt-hour (kWh) meters to a Samsung DVM system so energy use can be reported and split between tenants or zones.
- Connects up to 8 pulse-output kWh meters
- Energy data for tenant billing and reporting
- Used with Samsung central control and DMS
- For DVM (VRF) systems
What is included
- 1 x Samsung MIM-B16N pulse input module
Specification
| Model | Works with | Price |
|---|---|---|
| MIM-B16N | Samsung DVM (VRF) systems with Samsung central control or a data management server | £403.20 |
Good to know
- kWh meters are not included: use meters with a pulse output.
- Energy distribution reporting needs a Samsung central controller or data management server.
Delivery
Supplied to order from Samsung. Free UK delivery on orders of £100 or more; £7.99 below that.
Shop the Samsung DVM (VRF) range
Pair it with: an MWR-WG01JN wired controller per indoor unit (mandatory on R32 DVM), and an MCM-A300BN for central control of the whole system.
