Samsung Mono 12kw A2W Inverter Heat Pump R290 1PH - AE120CXYDEK/EU
Samsung Mono 12kw A2W Inverter Heat Pump R290 1PH - AE120CXYDEK/EU
Samsung Mono 12kw A2W Inverter Heat Pump R290 1PH - AE120CXYDEK/EU
Samsung Mono 12kw A2W Inverter Heat Pump R290 1PH - AE120CXYDEK/EU
  • SKU: PLUMHEAT4683
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

Samsung Mono 12kw A2W Inverter Heat Pump R290 1PH - AE120CXYDEK/EU

£4,510.00

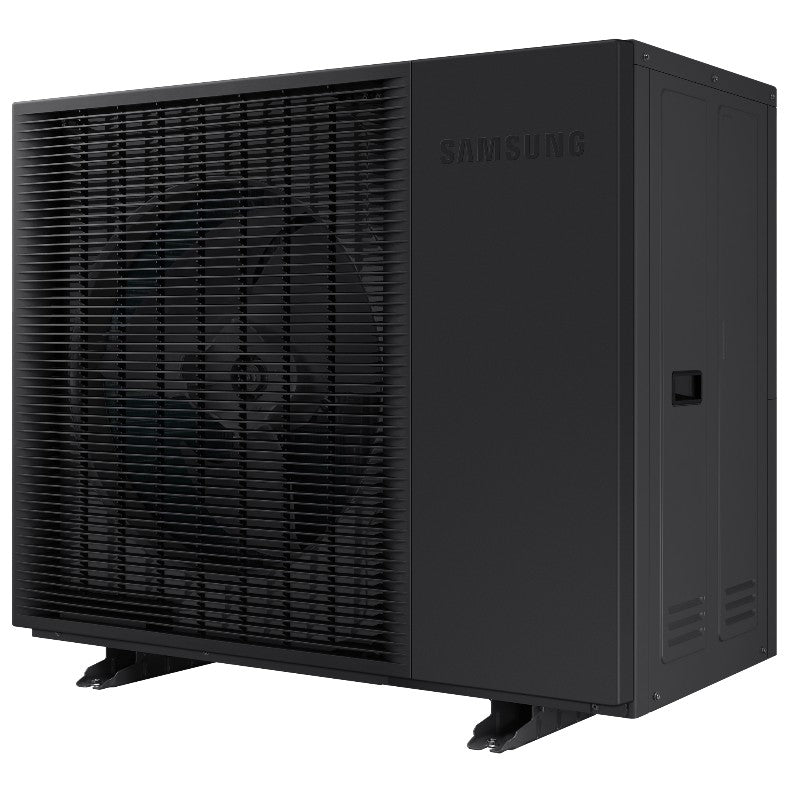

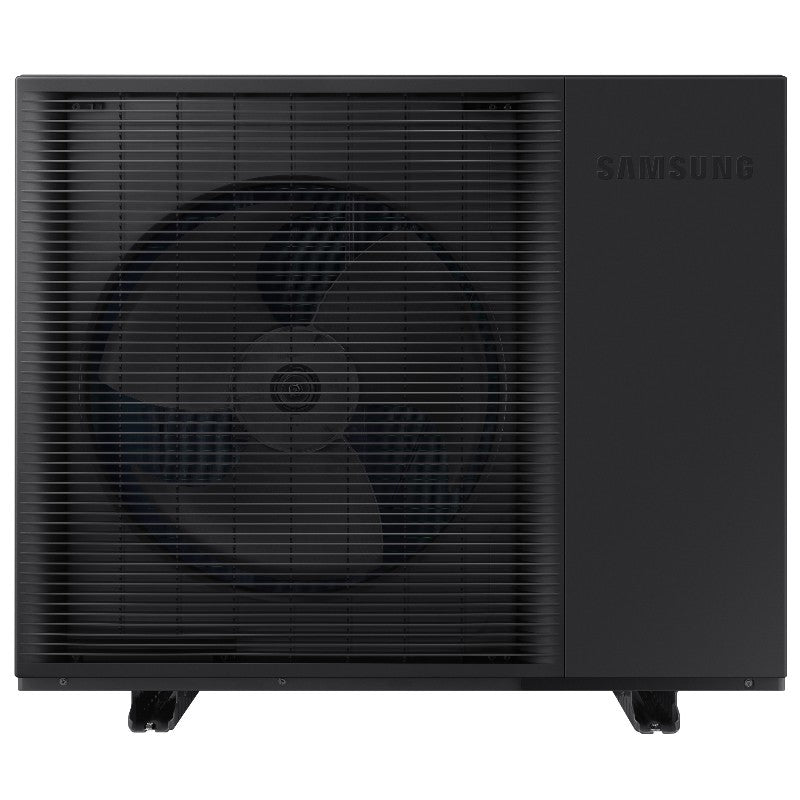

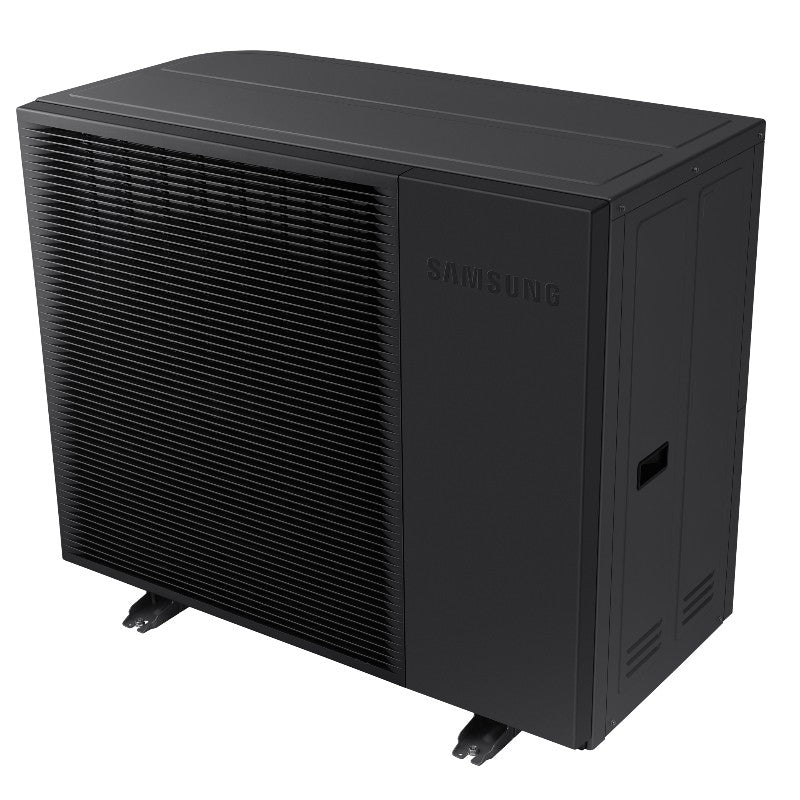

Introducing the Samsung 12kW Gen 7 R290 Heat Pump - a reliable, efficient, single-fan monobloc unit that's the first in the Samsung range to incorporate the lower GWP refrigerant, R290. Thanks to Samsung's stellar reputation for solid performance in the UK and a 7-year warranty upon completion of their training, you can have peace of mind with this purchase.

The use of R290 gives this heat pump a longer lifespan than those in the R32 range, as R32 is due to be phased out in 2026. You have the option to install these units with pre-plumbed cylinders or standard DHW tanks. Opt for this and you can fit the new MIM control board, which comes with a standard wifi controller.

Please note, as this is a standalone heat pump, any additional components needed must be purchased separately from the outdoor unit.

*For more on the MIM-EN control board and compatible pre-plumbed cylinders, get in touch with the team.

Heat Pump Specifications
- Nominal capacity: 12.00kW
- Output at W45/A-2: 11.78kW
- Power input W35/A-7: 4.00kW
- Compressor type: Rotary
- Refrigerant type: R290
- Refrigerant volume: 1.25kg
- Nominal flow rate: 34.60 L/m
- Minimum water volume: 50 L

Product Details
- Product code: AE120CXYDEK/EU
- Max flow temp: 75°C
- Min operating temp: -25°C
- Max operating temp: 35°C
- Electrical supply: 220-240V
- Sound power level: 60 dB(A)
- Water In/Out: BSPP 1" male
- Product Dimensions (H x W x D): 1018mm x 1270mm x 530mm
- Net weight: 140kg
- Shipping weight: 160kg

MCS Listed SCOPs
- @35°C: 4.73
- @40°C: 4.42
- @45°C: 4.12
- @50°C: 3.82
- @55°C: 3.51
- @60°C: 3.17
- @65°C: 2.84

This heat pump requires the additonal purchase of "Samsung Mono Gen 6 Control Kit". This is available in the add on section or by searching our product section.

Samsung Mono R290 1Phase Manufacturers Installation Manual
