Ultraheat Compact Triple Panel Radiator 700 x 1400mm (Type 33)
£249.99
CLEARANCE · ex-stock, priced to clear
Taxes included.
Shipping calculated at checkout.
Free Shipping
On orders over £100* (On Select Products)
Secure Payment
100% secure checkout
Easy Returns
30-day return policy
Pickup available at F3 Castings Way, Leafbridge, Castings Way, Lincoln
Usually ready in 24 hours
Clearance: 1 unit only, collection only from Leafbridge, Lincoln. Ex-stock and priced to clear. One side panel is being replaced with a new one before collection; the radiator itself is unused.

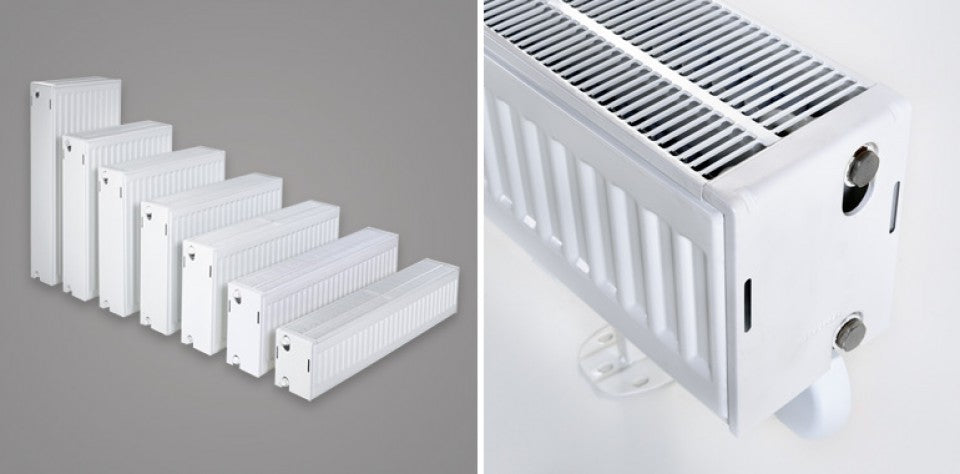

Ultraheat Compact 6 TS Triple Panel Radiator 700 x 1400mm (7TS1400)
A Type 33 triple panel, triple convector steel panel radiator from Ultraheat, 700mm high by 1400mm long, in white. With a heat output of 3,903 W (13,318 BTU/h) at ΔT50, it suits large rooms and low-temperature systems such as heat pumps, where a larger emitter is needed to deliver the same heat at a lower flow temperature. This is a single unit from our Lincoln stock.
- Type 33: three panels with three convector fins
- Size: 700mm high x 1400mm long, 160mm deep
- Output: 3,903 W / 13,318 BTU/h at ΔT50
- Compact 6 design with 6 tappings for flexible pipe connection
- Mild steel, white finish (RAL 9016)
- Maximum operating pressure 10 bar
- 10 year manufacturer's guarantee
What's included
- 1 x Ultraheat Compact 6 TS triple panel radiator, 700 x 1400mm, white (7TS1400)
Radiator valves are not included. See our radiator valves and flow regulating valves below.
Specification and price
| Model | Ultraheat Compact 6 TS 7TS1400 |
|---|---|
| Type | Type 33 (triple panel, triple convector) |
| Height x length | 700 x 1400mm |
| Depth | 160mm |
| Wall to face | 184-195mm |
| Output at ΔT50 | 3,903 W / 13,318 BTU/h |
| Max operating pressure | 10 bar |
| Finish | White RAL 9016 |
| Guarantee | 10 years |
| Clearance price | £249.99 inc VAT |
Installation and compliance
Should be installed by a competent heating engineer in line with the manufacturer's instructions. On heat pump systems, size radiators from a room-by-room heat loss calculation at your design flow temperature: output at lower flow temperatures is well below the ΔT50 figure.
Collection
Collection only from our Lincoln unit at Leafbridge Business Park, usually ready within 24 hours of your order being confirmed. Only one unit is in stock.
PDF Downloads
Manufacturer documents for this product.
