Viessmann Vitodens 050-W System Boiler 19kW–25kW
£1,232.99
Taxes included.
Free Shipping
On orders over £100* (On Select Products)
Secure Payment
100% secure checkout
Easy Returns
30-day return policy
Pickup available at F3 Castings Way, Leafbridge, Castings Way, Lincoln
Usually ready in 24 hours
Supplied to order. Ordered in from Viessmann's UK distribution for you, usually 2–4 working days to dispatch.

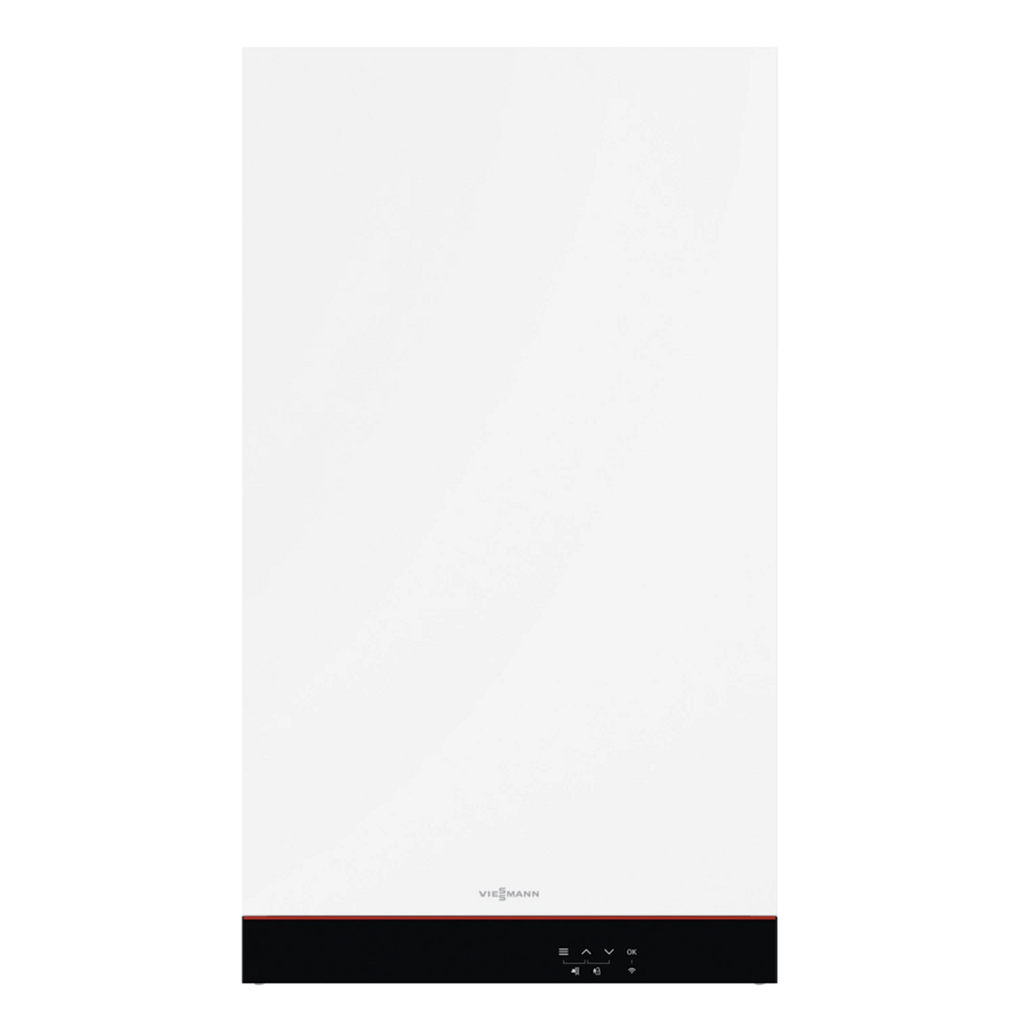

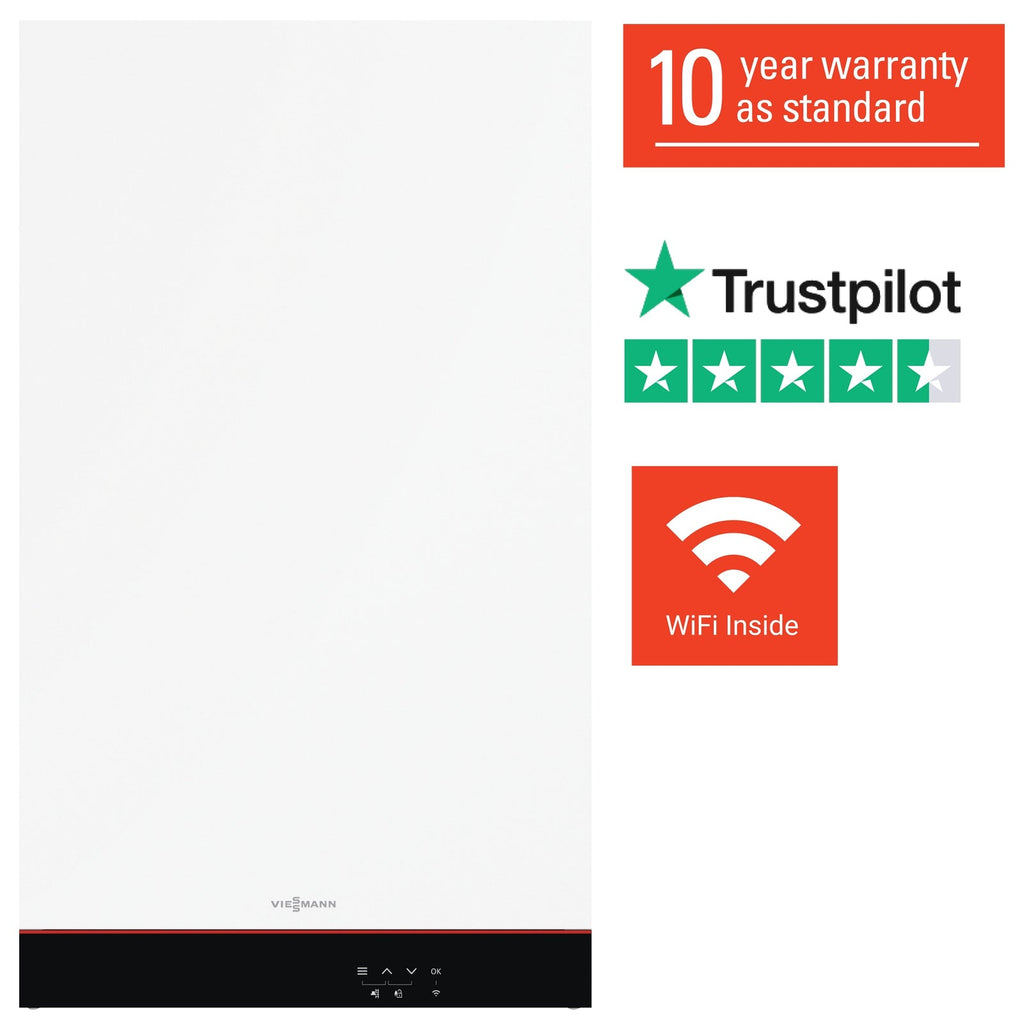

Viessmann Vitodens 050-W System Boiler (B0HA) 19kW and 25kW
The compact Vitodens 050-W as a system boiler, for homes with an unvented or vented hot water cylinder. Pump, expansion vessel and diverter valve are built in, so it suits straightforward system and S-plan replacements. Natural gas, LPG compatible.
- Inox-Radial stainless steel heat exchanger and MatriX-Plus burner with Lambda Pro
- ErP class A, modulation up to 1:8
- Built-in pump, 8 litre expansion vessel and 3-way valve for the cylinder
- Compact 400mm-wide casing
- ViCare app control with the ViCare thermostat
Required with this boiler: a flue kit
Viessmann boilers are supplied without a flue. The Flue kit selector above Add to cart adds the Viessmann 7946886 60/100mm horizontal flue kit by default, as a separate line in your basket.
Only choose "I already have this" if you already have a compatible Viessmann 60/100 flue, or you need a different route: see the vertical flue kit, extensions and bends. Only Viessmann flue components may be used with Vitodens boilers.
What is included
- Viessmann Vitodens 050-W system boiler (B0HA) in the selected output
- Control unit, integral safety valves, high-efficiency pump, 3-way valve and 8 litre expansion vessel
- Wall mounting bracket and boiler flue connection
- Flue not included: the horizontal flue kit is added with the selector above
- Cylinder and cylinder sensor not included
Sizes and prices
| Capacity | Heating output | Viessmann code | Part number | Price inc VAT |
|---|---|---|---|---|
| 19kW | 3.2–19kW | 7968065 | PLUMHEAT4508 | £1,232.99 |
| 25kW | 3.2–25kW | 7968066 | PLUMHEAT4509 | £1,269.99 |
Recommended add-ons
Tick these under the flue selector to add them to your order:
- Viessmann ViCare wireless thermostat ZK05991: app control and load compensation (Boiler Plus) on PlusBus Vitodens boilers.
- Inta Trade Tec 22mm magnetic filter: protects the heat exchanger; a system filter is expected under most manufacturer guarantees.
- Viessmann plume management kit 7946889: moves the plume away from windows, doors and boundaries.
- Viessmann 60/100 flue extension 1m 7373224: for walls thicker than the standard kit.
- Viessmann 60/100 flue bends: 87° or 45° pair for offsets.
- Viessmann valve fittings cover ZK06090: tidy finish under the 400mm casing.
Installation and compliance
Installation and guarantee
Installation must be by a Gas Safe registered engineer (oil: OFTEC registered) and commissioned with the Benchmark checklist. Manufacturer guarantees require registration after installation and annual servicing; extended guarantee terms are the manufacturer's and may require their approved filter/installer.
Viessmann UK currently offers up to 10 years' guarantee on the Vitodens 050-W when registered via ViessmannPlus (VPlus); see Viessmann's current terms.
- Natural gas as supplied; LPG operation must be set up to Viessmann's instructions by a Gas Safe engineer.
- Condensate must be routed to Building Regulations; external runs should be 32mm and insulated.
- Unvented cylinders must be installed by a G3-qualified installer.
Delivery and collection
Delivered by pallet/courier (£29.99 per order) or collect free from Leafbridge, Lincoln. Order-in boilers usually 2-4 working days.
Viessmann Vitodens 050-W brochure (2025) and Viessmann Vitodens flue system technical guide (8/2024) are in the PDF downloads at the bottom of this page.
Shop the Viessmann Vitodens range
- Viessmann Vitodens 050-W Combi 25–35kW
- Viessmann Vitodens 100-W Combi 26–35kW
- Viessmann Vitodens 100-W System 11–32kW
- Viessmann Vitodens 100-W Heat Only 11–32kW
- Viessmann Vitodens 025-W Combi 24–28kW
- Viessmann Vitodens 200-W System 11–32kW
Flues and accessories: horizontal flue kit, vertical flue kit, plume kit, valve covers. Browse all boilers.
PDF Downloads
Manufacturer documents for this product.
