Worcester Bosch Greenstar Oilfit 80/125 Standard Telescopic Flue Kit 7716190064
£268.99
Taxes included.
Free Shipping
On orders over £100* (On Select Products)
Secure Payment
100% secure checkout
Easy Returns
30-day return policy
Pickup available at F3 Castings Way, Leafbridge, Castings Way, Lincoln
Usually ready in 24 hours
Supplied to order. Usually with us in 2-4 working days. We confirm availability and the delivery or collection date when you order.

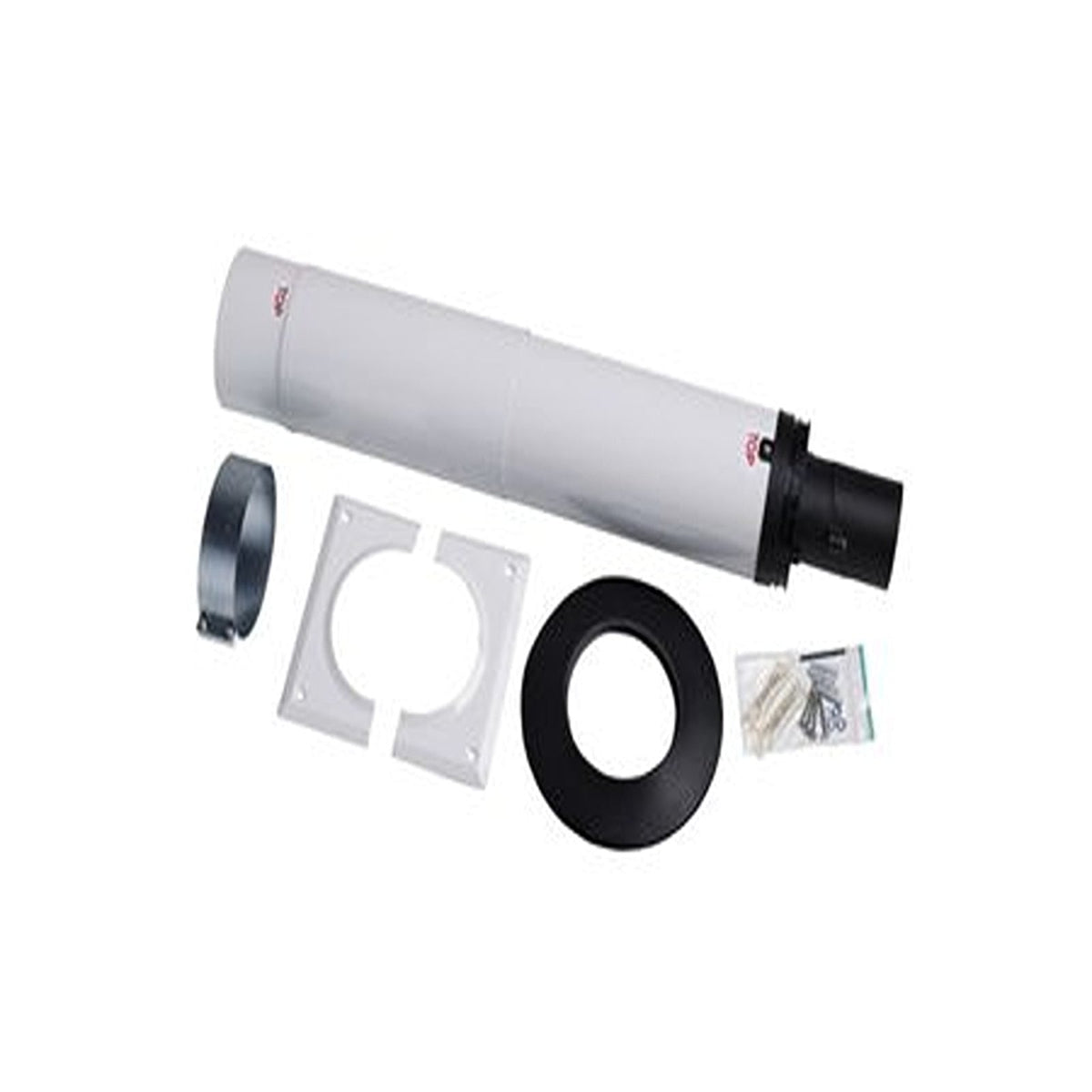

Worcester Bosch Greenstar Oilfit 80/125 Standard Telescopic Flue Kit (7716190064)
The standard room-sealed horizontal flue kit for Worcester Bosch Greenstar internal oil boilers (Heatslave II, Danesmoor Utility and Danesmoor Utility System). It is the default flue for these boilers, which Worcester supplies without a flue.
Key points
- Worcester Bosch part number 7 716 190 064
- 80mm flue / 125mm air concentric, room sealed
- Telescopic: adjusts from 460mm to 670mm
- Oilfit push-fit connections; extensions and elbows fit without special tools
- White finish, black terminal
What's included
- Telescopic flue and terminal assembly
- Clamp, inner and outer wall plates and wall seal
- Fixings, as supplied by Worcester Bosch
Specification and price
| Part number | Our code | Diameter | Adjustable length | Price (inc VAT) |
|---|---|---|---|---|
| 7716190064 | PLUMHEAT0810 | 80/125mm | 460-670mm | £268.99 |
Options
For walls under 460mm use the short telescopic kit (7716190062). For deeper walls or offsets add 80/125 1m extensions, the 90° bend or 45° bends (pair). Check the maximum flue length and the reduction for each bend in the boiler manual.
Fits these boilers
- Worcester Bosch Greenstar Heatslave II oil combi (internal)
- Worcester Bosch Greenstar Danesmoor Utility regular
- Worcester Bosch Greenstar Danesmoor Utility System
Installation and compliance
Oil flues must be installed by an OFTEC registered (or otherwise competent) engineer in line with Building Regulations, BS 5410 and Worcester Bosch's instructions, including terminal positions and maximum flue lengths for the boiler.
Delivery and collection
Free UK delivery on orders over £50, £4.99 under £50, or collect free from Leafbridge, Lincoln.
Worcester Bosch's Greenstar Oilfit RS flue kit installation instructions are in the PDF downloads at the bottom of this page.
PDF Downloads
Manufacturer documents for this product.
