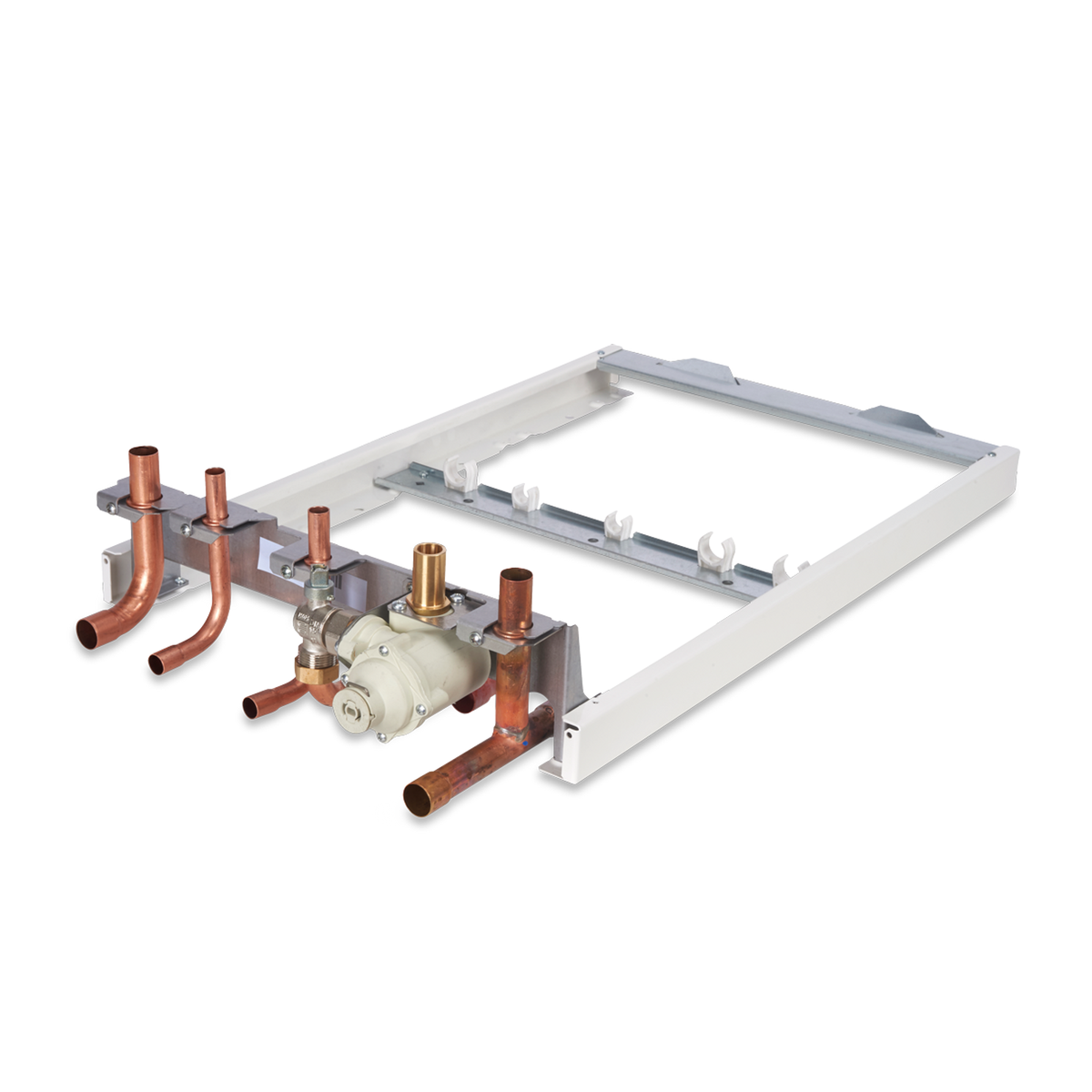

Alpha PremierPack Pro Boiler Jig with Cyclone Plus Filter (3.028421)

The Alpha PremierPack Pro is a wall-mounting jig and magnetic filter kit for the current Alpha NX boiler range. It goes on the wall before the boiler so the pipework can be run in advance, and it carries the Alpha Cyclone Plus magnetic filter on the heating return, as BS 7593:2019 requires an inline filter on new installations.

Fits these boilers: Alpha E-Tec NX combi boiler 28–33kW, Alpha E-Tec Plus NX combi boiler 28–38kW, Alpha Evoke NX combi boiler 28–33kW, Alpha E-Tec NXS system boiler 20–35kW.

Key points

• Alpha part number 3.028421
• For Alpha E-Tec NX, E-Tec Plus NX, Evoke NX and E-Tec NXS boilers (not E-Tec R regular)
• Includes the Alpha Cyclone Plus magnetic filter
• Copper flow and return split tails for vertical pipework up or down
• Bottom tray, wall spacers and template for a tidy finish
• Alpha's PremierPack page says it adds 2 years to the standard warranty on E-Tec NX and Evoke NX, and 3 years on E-Tec Plus NX and E-Tec NXS (Alpha's terms)

What's included

• Wall jig with Cyclone Plus magnetic filter and pipe clips
• Wall template
• Flow and return split tails (copper)
• Bottom tray
• Screw pack and wall spacers

Specification and price

Installation and compliance

Fit to Alpha's PremierPack Pro and boiler installation instructions; boiler installation by a Gas Safe registered engineer, commissioned with the Benchmark checklist. Register the boiler with Alpha to claim any warranty extension. Not for the older E-Tec 28/33 Plus or E-Tec S (3.0284xx) boilers: those use the PremierPack Extra.

Delivery and collection

Free UK delivery on orders over £50 (£4.99 under £50). Free collection from our Lincoln unit at Leafbridge Business Park. Supplied to order, usually 2-4 working days.

The Alpha PremierPack Pro installation instructions are in the PDF downloads at the bottom of this page.
