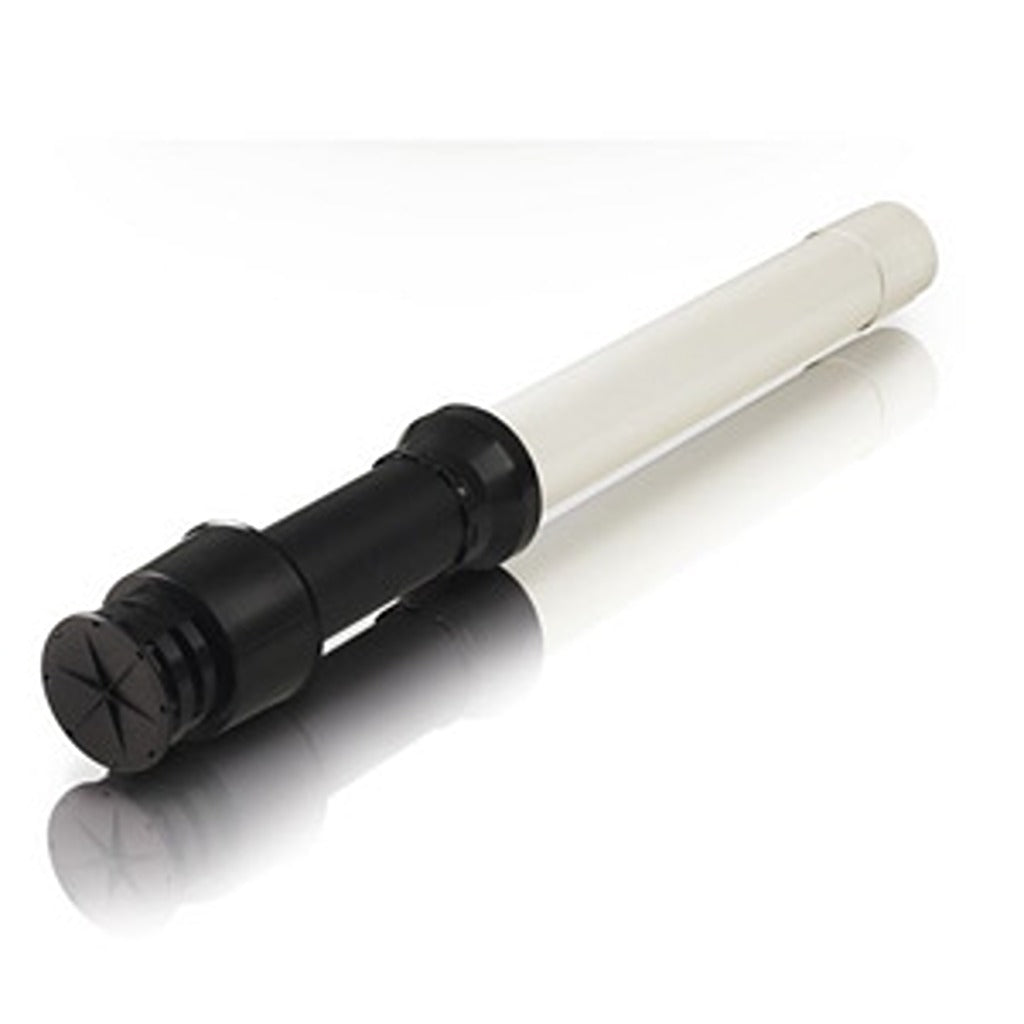

Alpha CD Vertical Flue Terminal with 1m Flue (60/100mm) 6.2000520
Genuine Alpha concentric 60/100mm vertical flue terminal assembly, supplied with a 1000mm flue section. It is designed for roof (vertical) flueing of Alpha CD and HE condensing boilers and must only be used with those boilers.
Fits these boilers: Alpha E-Tec NX combi boiler 28–33kW, Alpha E-Tec Plus NX combi boiler 28–38kW, Alpha Evoke NX combi boiler 28–33kW, Alpha E-Tec NXS system boiler 20–35kW, Alpha E-Tec regular (heat only) boiler 15–25kW.
Key points
- Alpha part number 6.2000520 (also listed as 6.200052)
- Concentric 60/100mm flue system, white
- Terminal assembly with 1000mm flue length
- For Alpha CD and HE condensing boilers only
- Terminal counts as 1m of equivalent flue length
What's included
- Vertical flue terminal assembly with 1m flue
A roof weathering slate is not included: use Alpha 6.1000380 (pitched roof) or 6.1000390 (flat roof).
Specification
| Part number | 6.2000520 |
|---|---|
| Flue system | Concentric 60/100mm |
| Length | 1000mm |
| Colour | White |
| Max equivalent flue length (inc. terminal) | CD boilers 15m, HE boilers 6m (current NX and E-Tec R boilers: 14m, see the boiler manual) |
| Equivalent length of bends | 45° 0.9m, 90° 1.3m |
| Roof opening | Minimum 150mm diameter |
| Price | £129.99 inc VAT |
Options
- Flue extensions: 750mm (6.2000750) and 1000mm (6.2001050)
- Flue support bracket 6.1000355 (support roughly every 1.5m)
- Pitched roof flashing slate 6.1000380
Installation & compliance
Must be installed by a Gas Safe registered engineer in line with the Alpha instructions, the boiler manual and BS 5440-1. Keep at least 25mm between the outer duct and any combustible material, and check the maximum flue length for your boiler model before ordering.
Delivery & collection
Free UK delivery on orders over £50 (£4.99 under £50). Free collection from our Lincoln unit, usually ready within 24 hours.
Manufacturer installation instructions are in the PDF downloads at the bottom of this page.
