Midea Multi Split Outdoor Unit R32 (2, 3 or 5 Port) – Ex-Stock Clearance
£999.99
Taxes included.
Free Shipping
On orders over £100* (On Select Products)
Secure Payment
100% secure checkout
Easy Returns
30-day return policy
Pickup available at F3 Castings Way, Leafbridge, Castings Way, Lincoln
Usually ready in 24 hours
Ex-stock clearance: limited quantity only. We are selling our remaining stock of this Midea product. The Glow Group is not a Midea distributor or authorised dealer and cannot supply further Midea stock, spares or technical support. Units are new and unused, sold from our own Lincoln warehouse while stock lasts. Any manufacturer warranty is provided by Midea under its own terms, which may require installation, commissioning and registration by a suitably qualified installer.
Outdoor unit only: this is the outdoor unit of a Midea R32 multi split system. Indoor units, pipework, cabling, brackets and installation are not included. Check your chosen Midea indoor units against the manufacturer's combination table before ordering. Installation must be carried out by an F-Gas certified engineer, and we ask for your F-Gas details at checkout.

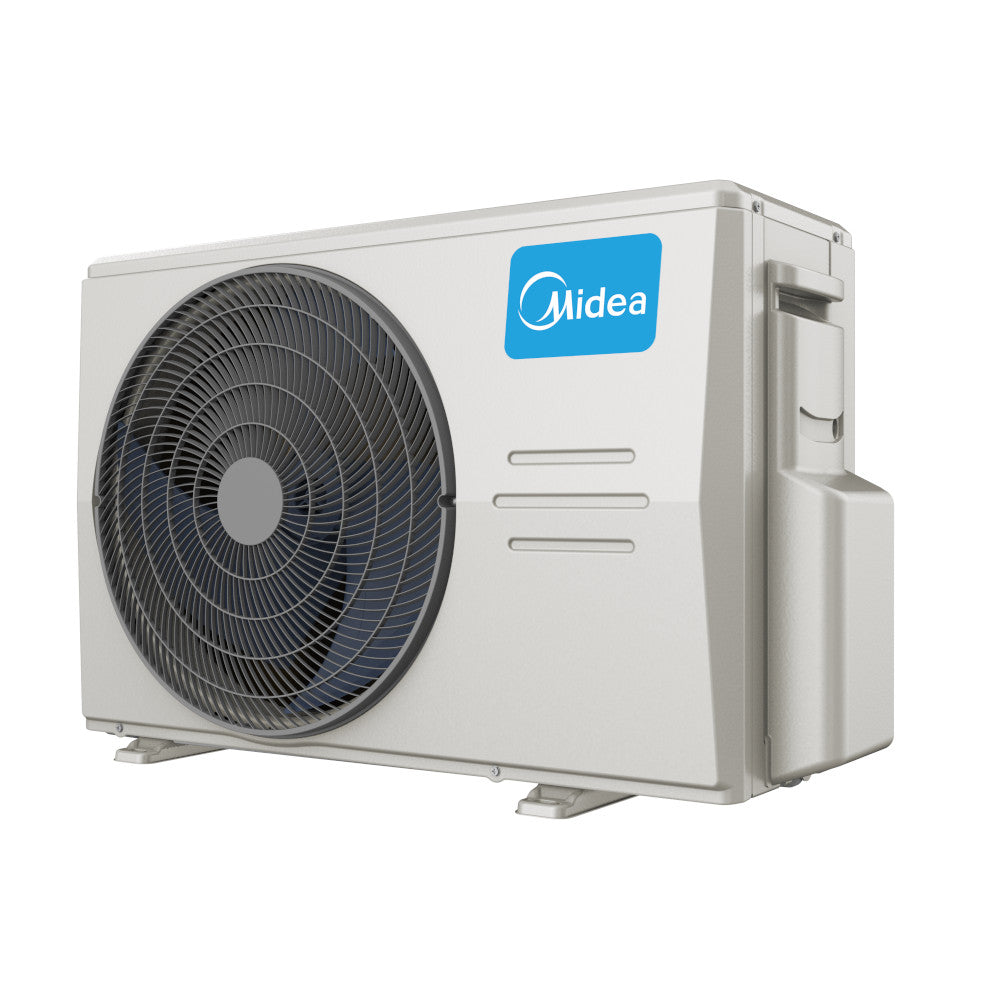

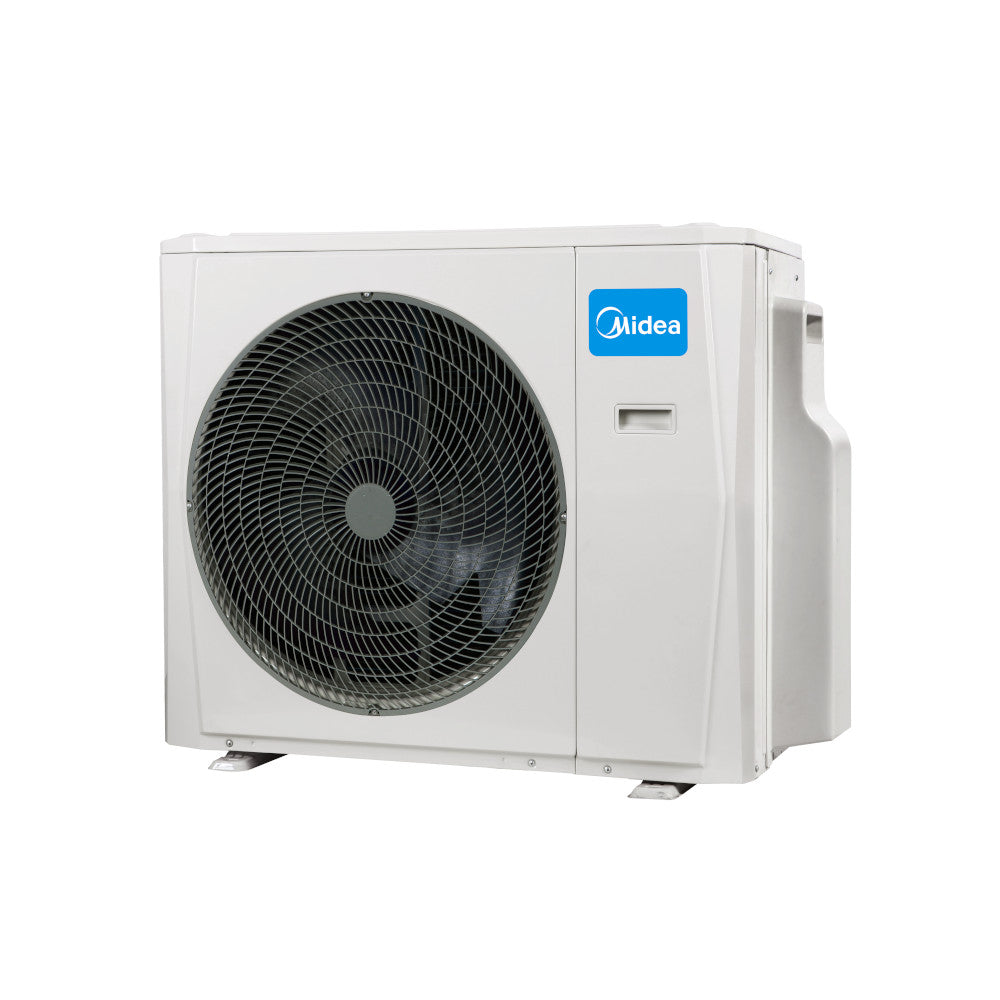

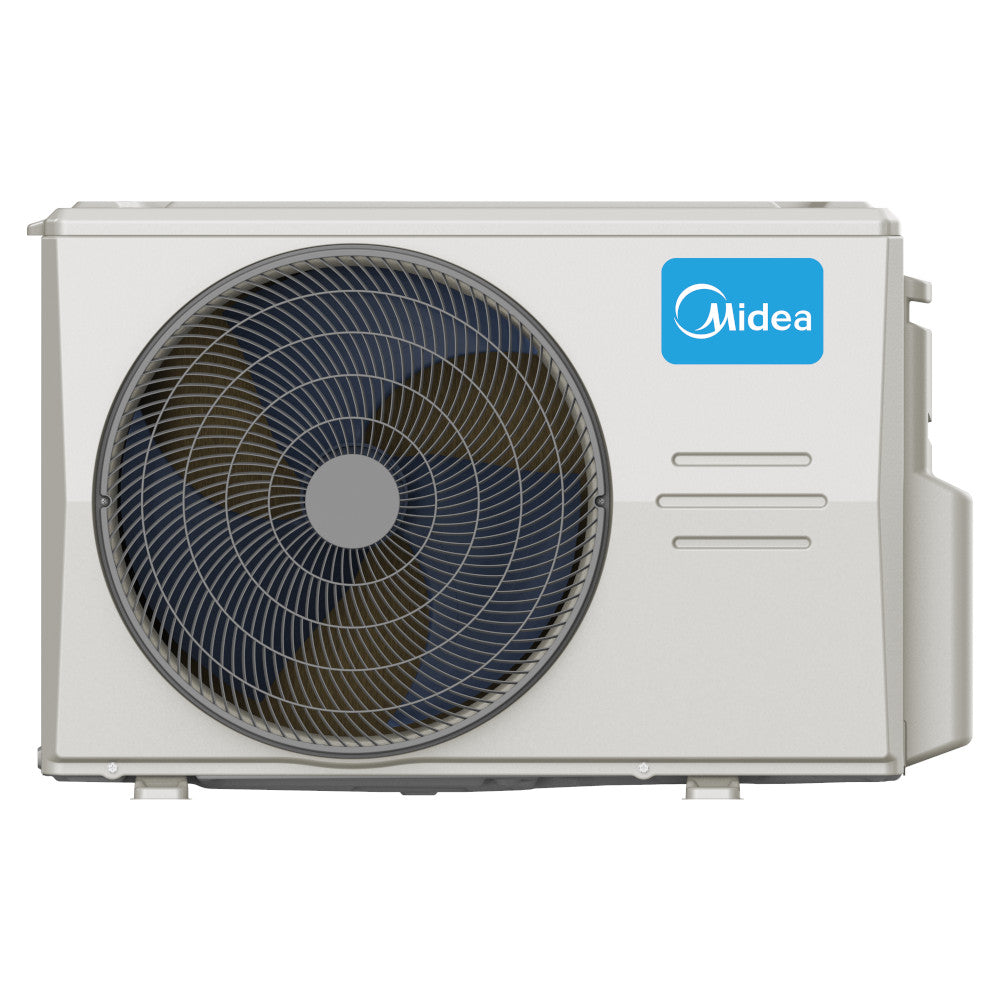

Midea Multi Split Outdoor Unit R32
Midea R32 inverter multi split outdoor units for heating and cooling, running two, three or five indoor units from one outdoor unit. Available as a 5.3kW 2-port (M2OE-18HFN8-Q), 7.9kW 3-port (M3OA-27HFN8-Q) or 12.3kW 5-port (M5OE-42HFN8-Q). These are stock units held at our Lincoln warehouse.
Key points
- DC inverter multi split outdoor unit for heating and cooling, R32 refrigerant
- Connects up to 2, 3 or 5 Midea R32 indoor units depending on model
- Single phase 220–240V, 50Hz
- Operating range (7.9kW model): cooling −15°C to 50°C, heating −15°C to 24°C outdoor
- Pre-charged with R32 for the standard pipe run; additional charge 12g per metre beyond it
What's included
- 1 x Midea multi split outdoor unit (model as selected) as supplied by the manufacturer
Specification and price
| Specification | 5.3kW 2-port | 7.9kW 3-port | 12.3kW 5-port |
|---|---|---|---|
| Outdoor model | M2OE-18HFN8-Q | M3OA-27HFN8-Q | M5OE-42HFN8-Q |
| Maximum indoor units | 2 | 3 | 5 |
| Rated cooling capacity | 5.28kW | 7.91kW | 12.31kW |
| Rated heating capacity | 5.57kW | 8.21kW | 12.60kW |
| Pipe connections (liquid / gas) | 2 x 1/4" / 2 x 3/8" | 3 x 1/4" / 3 x 3/8" | 5 x 1/4" / 4 x 3/8" + 1 x 1/2" |
| Max total pipe length | 40m | 60m | 80m |
| Max pipe length per indoor unit | 25m | 30m | 35m |
| Max height difference (indoor to outdoor / between indoors) | 15m / 10m | 15m / 10m | 15m / 10m |
| Factory R32 charge | 1.25kg | 1.85kg | 2.90kg |
| Sound pressure | 56 dB(A) | 58 dB(A) | 61.5 dB(A) |
| Max current | 13A | 18A | 22A |
| Dimensions (W x H x D) | – | 890 x 673 x 342mm | 946 x 810 x 410mm |
| Net weight | – | 48kg | 74.1kg |
| Price (inc VAT) | £999.99 | £1,399.99 | £2,299.99 |
Options
- Choose the size using the Capacity selector.
- Any other Midea units we hold are listed separately while stock lasts. Condensate pumps and outdoor unit supports are also listed separately.
Installation and compliance
This unit contains fluorinated greenhouse gas (R32) refrigerant. By law it must be installed, commissioned and serviced by an F-Gas certified engineer working for an F-Gas certified company. We collect your company name and F-Gas certificate number at checkout and check them on the register before dispatch or collection. Orders we cannot verify are cancelled and refunded in full. Indoor unit combinations, pipe sizing and the electrical supply must follow Midea's installation manual.
Delivery and collection
Heavy item: delivery is £100 per order. Free collection from our Lincoln unit at Leafbridge Business Park, usually ready within 24 hours.
Midea indoor unit combination table and user manual are in the PDF downloads at the bottom of this page.
PDF Downloads
Manufacturer documents for this product.
