Samsung CAC 10kW Wall Mounted High Efficiency Air Conditioning System with Wireless Controller
The Samsung CAC 10kW wall mounted high efficiency air conditioning system is designed for larger residential and light commercial spaces where powerful heating and cooling performance is required with flexible, user friendly control.
Using R32 refrigerant, the system delivers excellent seasonal efficiency with a SEER of 6.9 and SCOP of 4.1. The wall mounted indoor unit provides strong, even airflow, while the single phase outdoor unit makes this system suitable for a wide range of properties.
This package is supplied with a Samsung WindFree standard wireless remote controller, allowing convenient system control without the need for hard wired wall controllers.

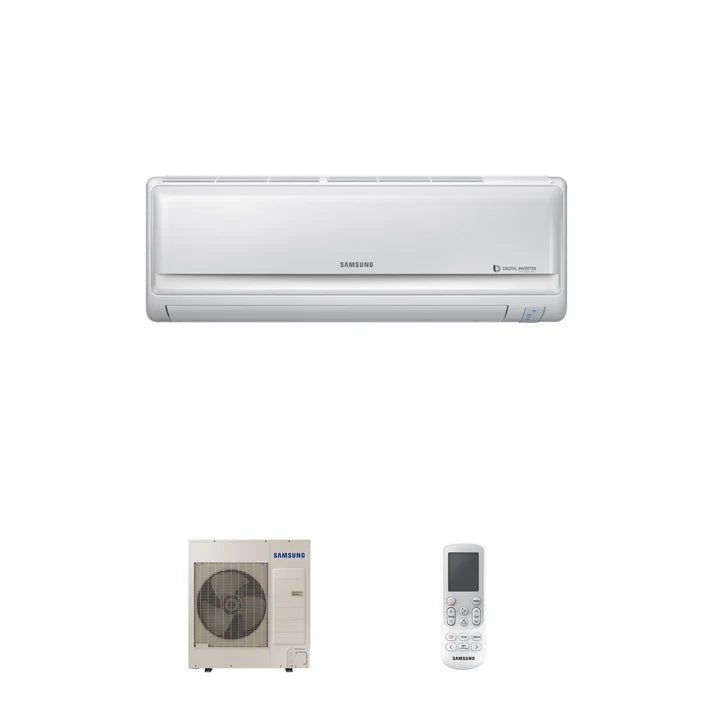

System includes
• 1 x 10kW single phase high efficiency outdoor unit AC100BXAPKG/EU
• 1 x CAC 10kW wall mounted indoor unit R32 AC100BNTPKG/EU

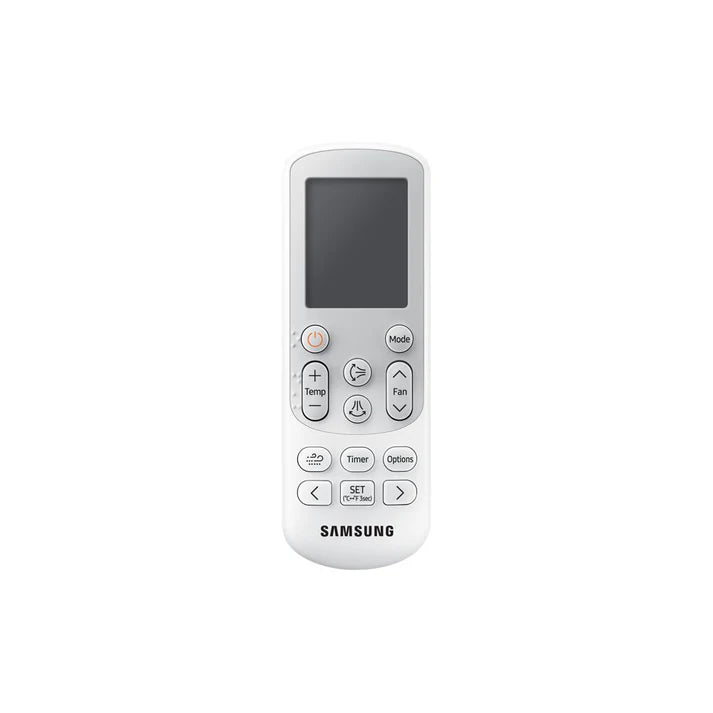

• 1 x WindFree standard wireless remote controller SPLIT DVM AR EH04E
Key features
• Wall mounted CAC system
• Cooling output 9.5kW
• Heating output 10.8kW
• High efficiency performance SEER 6.9 SCOP 4.1
• Single phase outdoor unit
• Wireless remote controller included
• BMS ready
• R32 refrigerant
Noise levels
• Indoor unit sound pressure 49 dB(A)
• Outdoor unit sound pressure 54 dB(A)
Electrical supply
• Indoor unit single phase
• Outdoor unit single phase
Pipework and installation limits
• Liquid pipe size 9.52mm
• Gas pipe size 15.88mm
• Maximum pipe length 85m
• Maximum pipe height 30m
• Refrigerant pre charge length 30m
• Additional refrigerant charge 45g per metre
Dimensions and weights
Indoor unit
• 1280mm wide x 345mm deep x 253mm high
• Weight 18.5kg
Outdoor unit
• 940mm wide x 330mm deep x 1420mm high
• Weight 100kg
F Gas installation requirement
This air conditioning system must be installed by an F Gas qualified engineer. In line with current regulations, proof of valid F Gas certification will be required at the point of purchase. Orders will not be processed or dispatched until this evidence has been provided.
