Samsung CAC Ceiling Suspended Air Conditioning System 5kW–14kW
£1,352.96
Taxes included.
Free Shipping
On orders over £100* (On Select Products)
Secure Payment
100% secure checkout
Easy Returns
30-day return policy
Pickup available at F3 Castings Way, Leafbridge, Castings Way, Lincoln
Usually ready in 2-4 days
Availability: please read before ordering
Because of very high demand and ongoing manufacturer supply disruption, air conditioning and ventilation equipment is currently supplied to order. After you place your order we will contact you to confirm stock availability and the expected delivery date before your order is processed. Some manufacturer lead times are currently running into January 2027.
If the lead time does not work for you, you can cancel and receive a full refund.
Samsung CAC Ceiling Suspended Inverter Heat Pump System

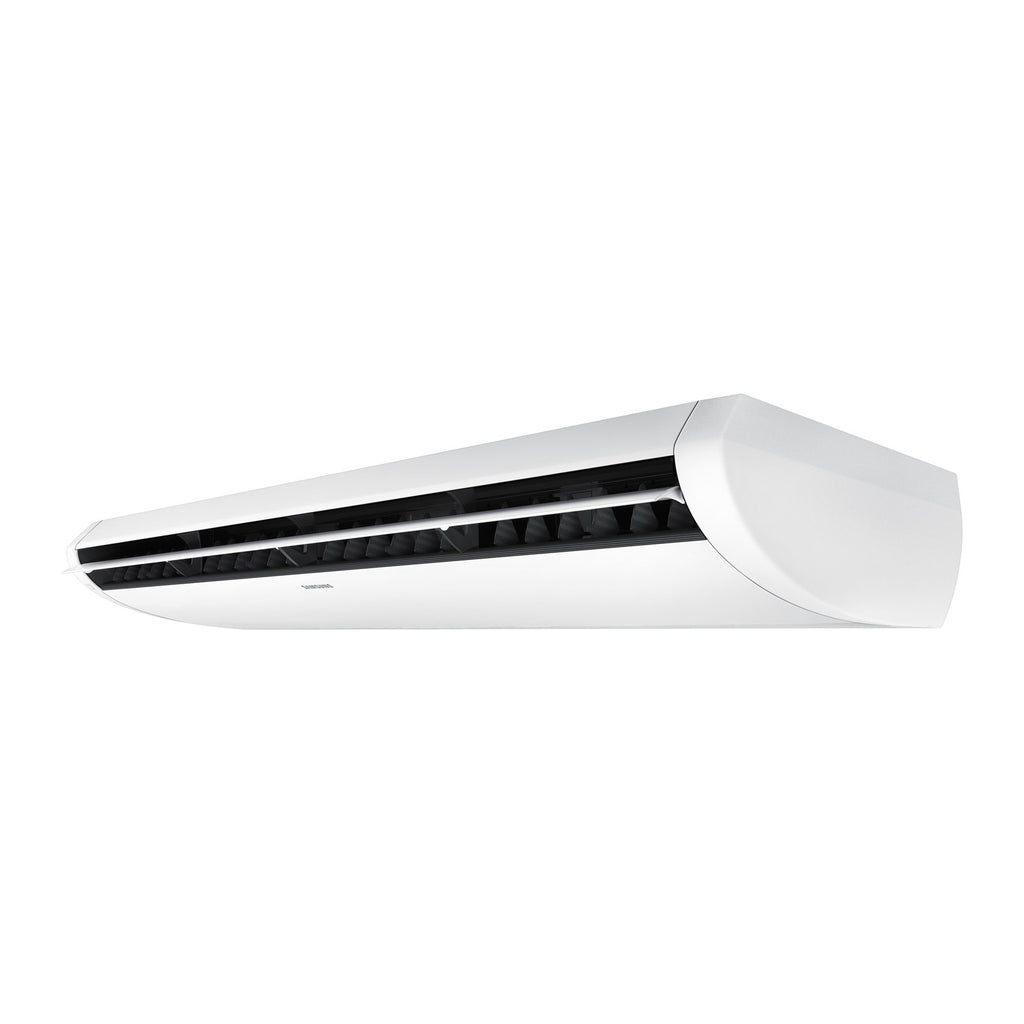

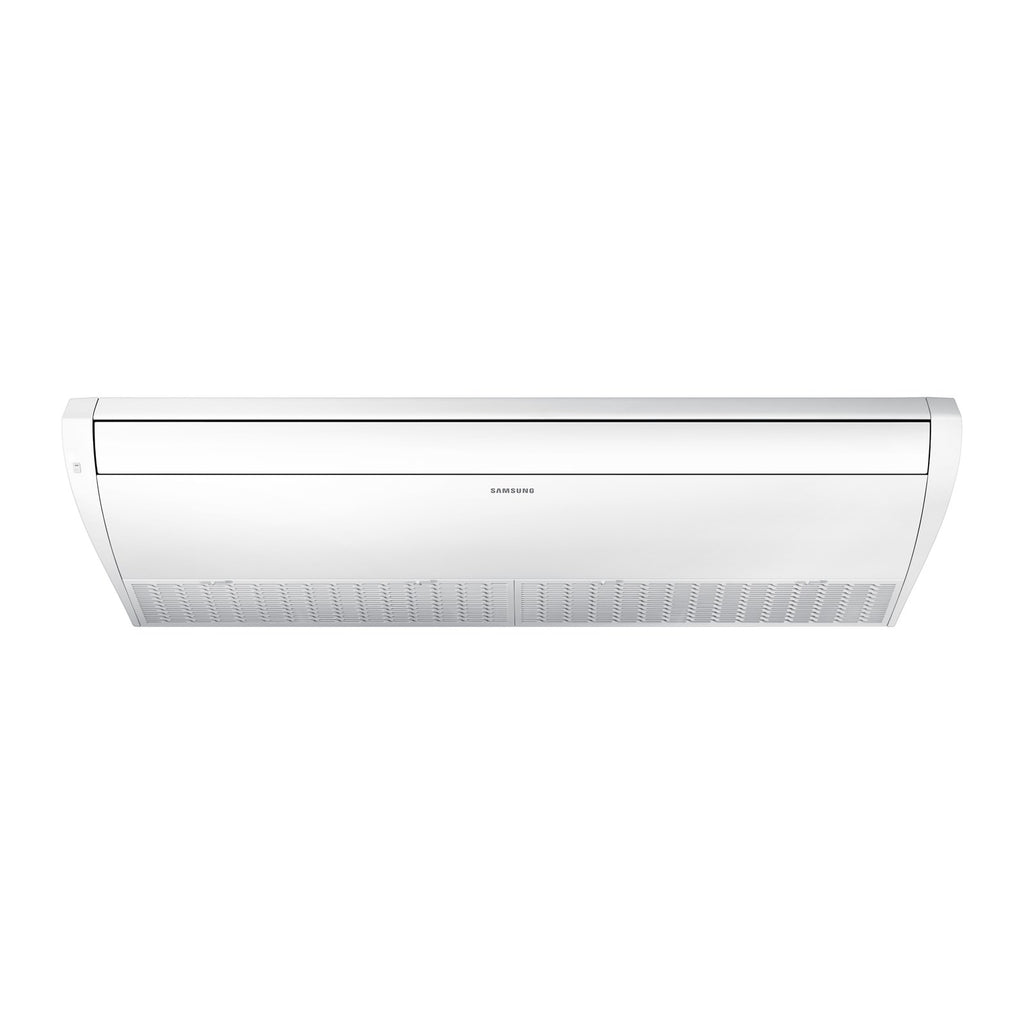

Under-ceiling (ceiling suspended) indoor unit for spaces with no ceiling void, such as solid-ceiling offices, shops, workshops and restaurants. Long air throw from a slim, surface-mounted cabinet.
- No ceiling void needed: surface-mounted under the ceiling
- 5kW to 14kW; 10–14kW also three phase
- 5kW and 7.1kW come with a wireless remote; 10–14kW with the MWR-WG01JN wired controller
- R32 inverter, NASA communication
System includes

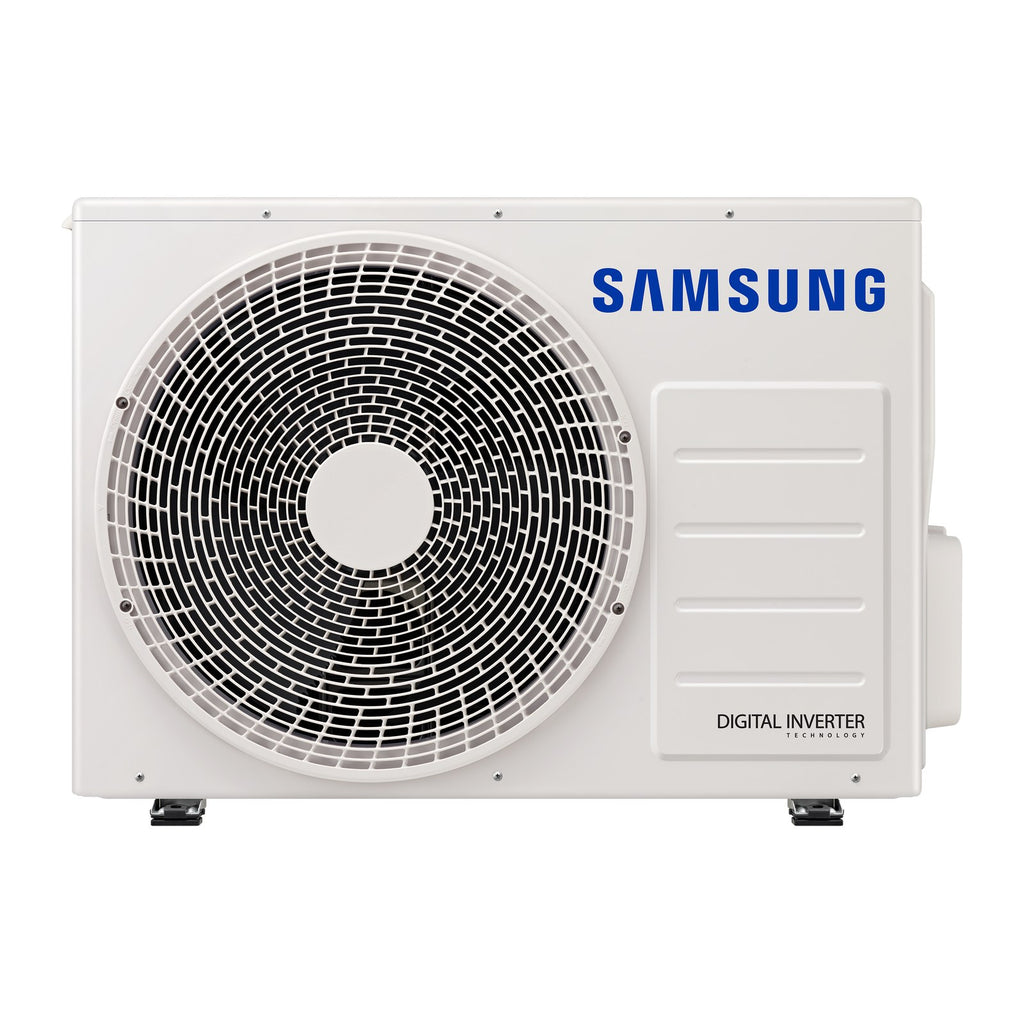

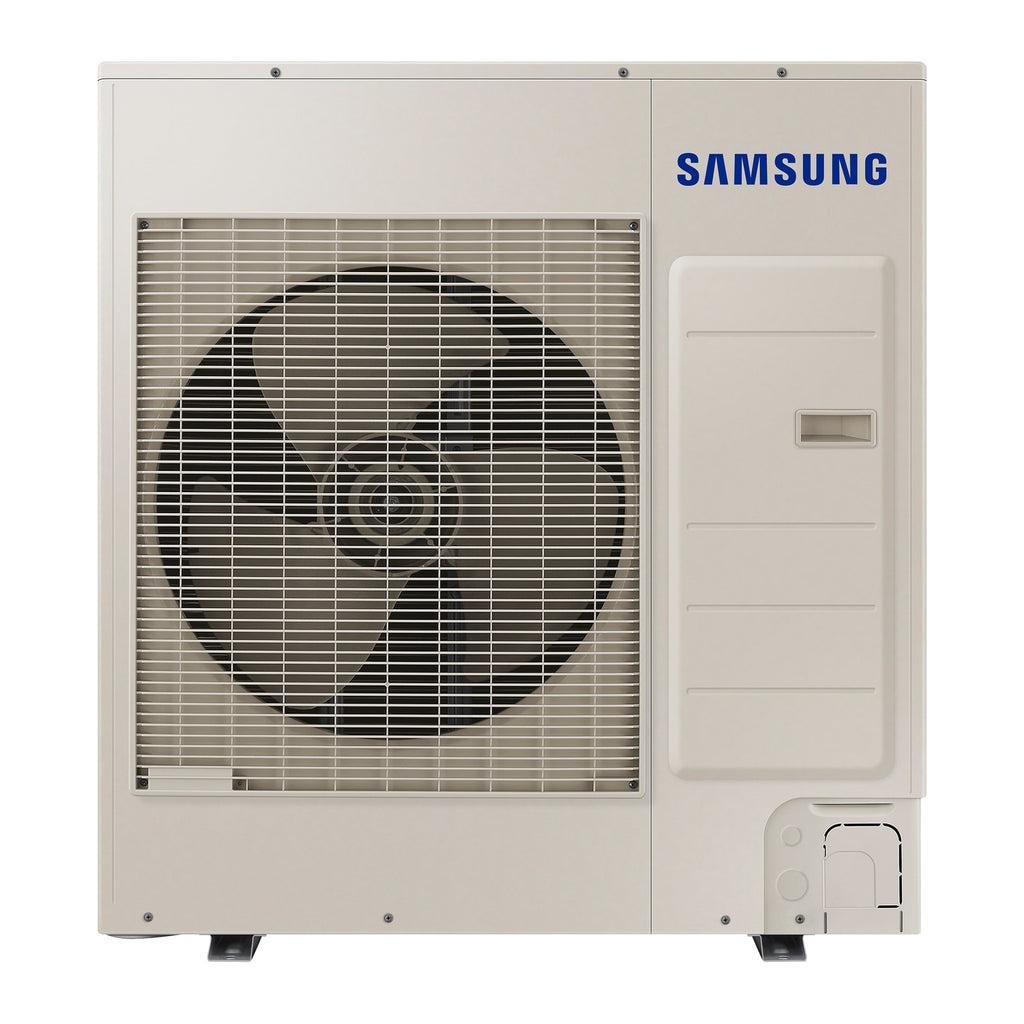

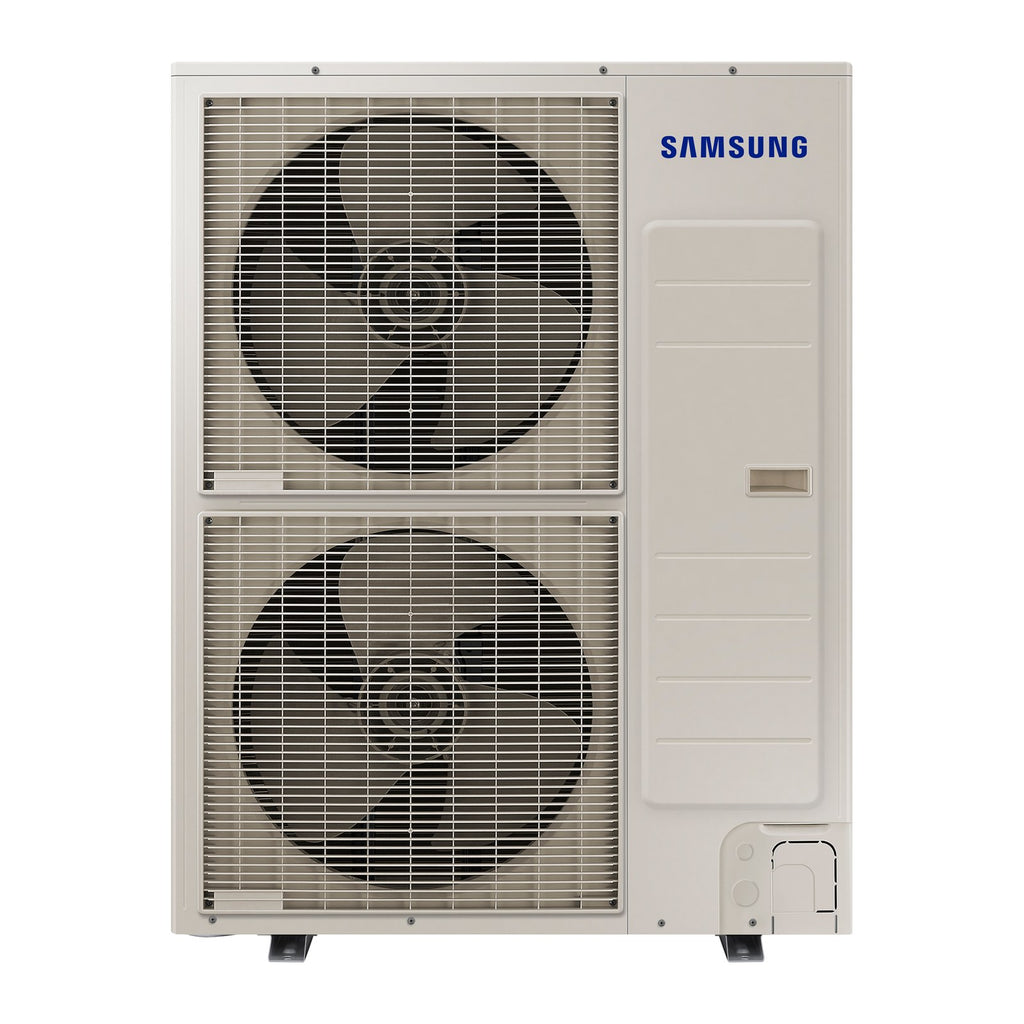

- 1 x matched Samsung R32 inverter outdoor unit
- 1 x indoor unit (model per size, below)
- 1 x controller: wireless remote (5kW and 7.1kW, supplied with the indoor unit) or MWR-WG01JN premium wired controller (10–14kW)
Every outdoor and indoor pairing below is Samsung's own published system combination from the 2026 price list.
Models, performance and prices
| Size | Outdoor / indoor | Cool / heat (kW) | SEER / SCOP | Fuse | Pipes (liq, gas) | Max pipe (height) | Price |
|---|---|---|---|---|---|---|---|
| 5kW single | AC052RXADKG/EU AC052RNCDKG/EU |
5.0 / 6.0 | 6.4 / 3.9 | 20A | 1/4", 1/2" | 30m (20m) | £1,352.96 |
| 7.1kW single | AC071RXADKG/EU AC071RNCDKG/EU |
7.1 / 8.0 | 5.6 / 3.9 | 25A | 1/4", 5/8" | 50m (30m) | £1,620.64 |
| 10kW single | AC100RXADKG/EU AC100RNCDKG/EU |
10.0 / 11.2 | 6.1 / 4.0 | 30A | 3/8", 5/8" | 50m (30m) | £2,733.92 |
| 12kW single | AC120RXADKG/EU AC120RNCDKG/EU |
12.0 / 13.2 | 5.9 / 4.0 | 30A | 3/8", 5/8" | 50m (30m) | £3,030.72 |
| 14kW single | AC140RXADKG/EU AC140RNCDKG/EU |
13.4 / 15.5 | 6.1 / 4.0 | 40A | 3/8", 5/8" | 75m (30m) | £3,356.64 |
| 10kW three | AC100RXADNG/EU AC100RNCDKG/EU |
10.0 / 11.2 | 6.1 / 4.0 | 20A/ph | 3/8", 5/8" | 50m (30m) | £2,819.04 |
| 12kW three | AC120RXADNG/EU AC120RNCDKG/EU |
12.0 / 13.2 | 5.9 / 4.0 | 20A/ph | 3/8", 5/8" | 50m (30m) | £3,102.40 |
| 14kW three | AC140RXADNG/EU AC140RNCDKG/EU |
13.4 / 15.5 | 6.1 / 4.0 | 20A/ph | 3/8", 5/8" | 75m (30m) | £3,422.72 |
Control options
- 5kW and 7.1kW: add a MWR-WG01JN or MWR-SH11N wired controller if you want a fixed wall control.
- MIM-H04EN Wi-Fi kit for SmartThings app control.
F Gas installation requirement
This air conditioning system must be installed by an F Gas qualified engineer. In line with current regulations, proof of valid F Gas certification will be required at the point of purchase. Orders will not be processed or dispatched until this evidence has been provided.
Delivery
Supplied to order from Samsung and delivered on a tail-lift vehicle, kerbside, to mainland UK addresses. Heavy item delivery charge applies. Check the goods on delivery and note any damage before signing; unboxed or visibly damaged goods must be reported within 72 hours.
The Samsung product information sheet is in the PDF downloads at the bottom of this page.
Shop the Samsung commercial (CAC) range
Have a ceiling void? See the cassette and ducted systems.
- Samsung CAC WindFree wall system 2.6–7.1kW
- Samsung CAC 10kW wall mounted system (standard or high efficiency)
- Samsung CAC 360 cassette system 7.1–14kW
- Samsung CAC WindFree 4-way cassette system 5–14kW
- Samsung CAC WindFree mini 4-way cassette system 2.6–7.1kW
- Samsung CAC WindFree 1-way cassette system 2.6–3.5kW
- Samsung CAC floor console system 2.6–5kW
- Samsung CAC Duct S MSP ducted system 3.5–14kW
- Samsung CAC slim ducted system 2.6–7.1kW
- Samsung CAC large high static ducted system 20–25kW (R410A)
Controls: air conditioning controls & accessories. Multi-room? See Samsung FJM multi split. Browse all commercial split systems.
