Samsung CAC Duct S MSP Ducted Air Conditioning System 3.5kW–14kW with Wired Controller
£1,295.84
Taxes included.
Free Shipping
On orders over £100* (On Select Products)
Secure Payment
100% secure checkout
Easy Returns
30-day return policy
Pickup available at F3 Castings Way, Leafbridge, Castings Way, Lincoln
Usually ready in 2-4 days
Availability: please read before ordering
Because of very high demand and ongoing manufacturer supply disruption, air conditioning and ventilation equipment is currently supplied to order. After you place your order we will contact you to confirm stock availability and the expected delivery date before your order is processed. Some manufacturer lead times are currently running into January 2027.
If the lead time does not work for you, you can cancel and receive a full refund.
Samsung CAC Duct S Medium Static Ducted Inverter Heat Pump System

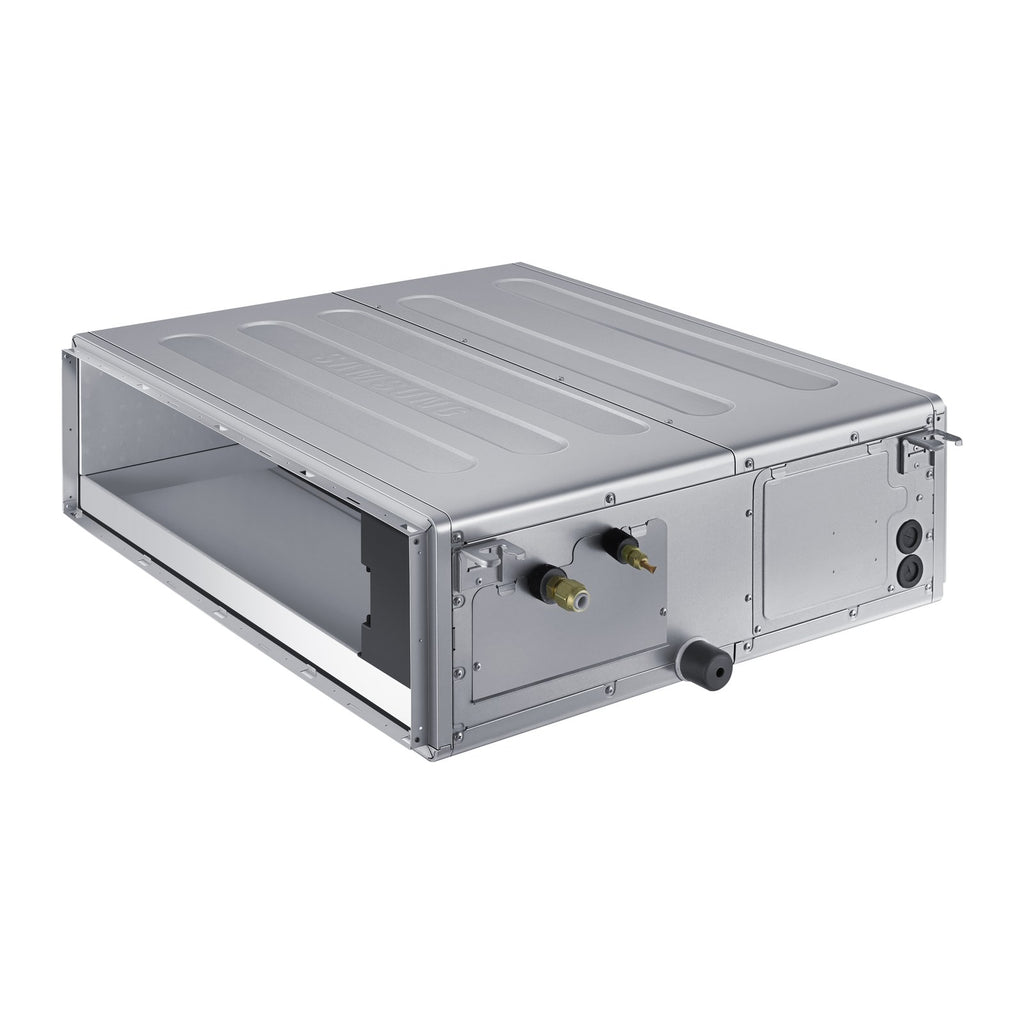

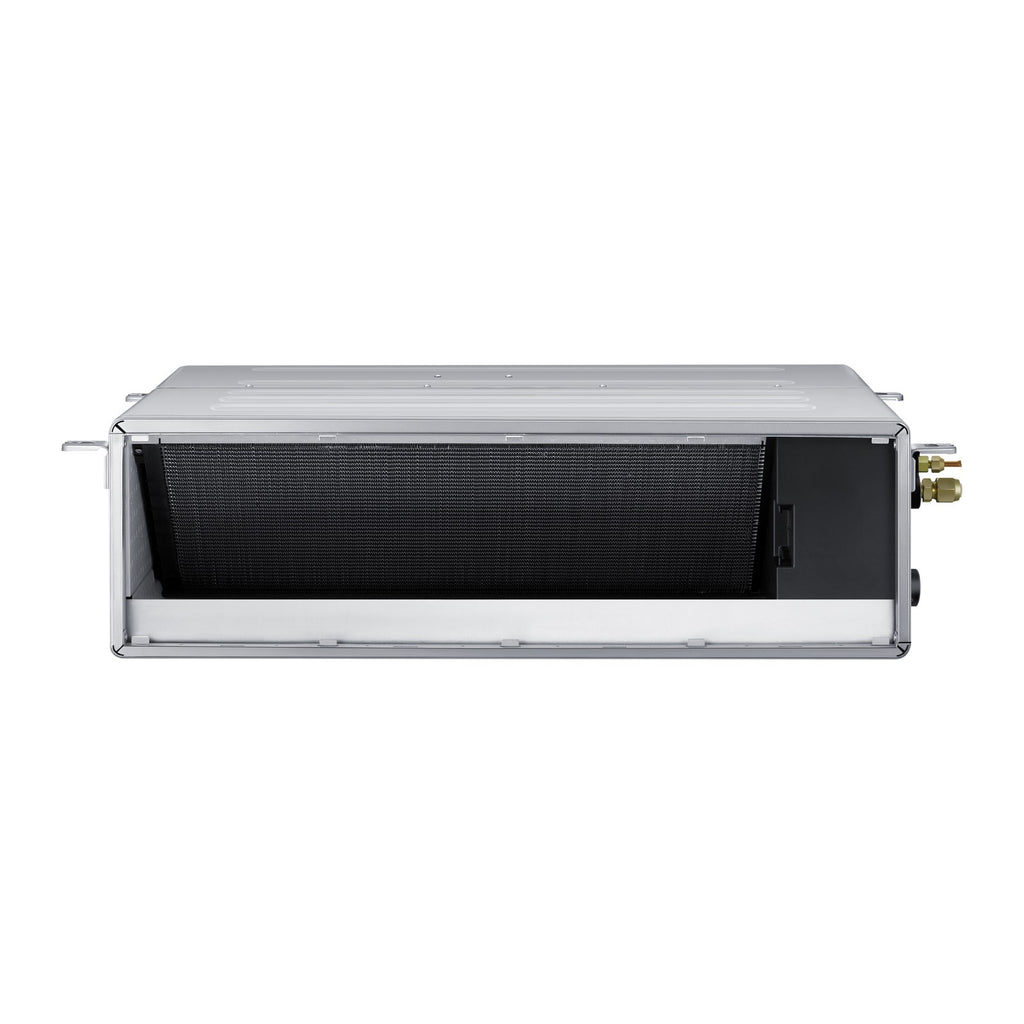

Samsung Duct S medium static pressure ducted unit: concealed in a ceiling void or bulkhead with only grilles on show, ideal for offices, hotels, high-end residential and multi-grille layouts.
- Concealed ducted unit, medium static pressure
- 3.5kW to 14kW, single phase; 10–14kW also three phase
- Supplied with MWR-WG01JN premium wired controller
- R32 inverter, NASA communication, BMS ready
System includes
- 1 x matched Samsung R32 inverter outdoor unit
- 1 x indoor unit (model per size, below)
- 1 x Samsung MWR-WG01JN colour LCD premium wired controller
Every outdoor and indoor pairing below is Samsung's own published system combination from the 2026 price list.
Models, performance and prices
| Size | Outdoor / indoor | Cool / heat (kW) | SEER / SCOP | Fuse | Pipes (liq, gas) | Max pipe (height) | Price |
|---|---|---|---|---|---|---|---|
| 3.5kW single | AC035RXADKG/EU AC035RNMDKG/EU |
3.5 / 4.0 | 6.4 / 4.1 | 13A | 1/4", 3/8" | 20m (15m) | £1,295.84 |
| 5kW single | AC052RXADKG/EU AC052RNMDKG/EU |
5.0 / 6.0 | 6.3 / 4.1 | 20A | 1/4", 1/2" | 30m (20m) | £1,442.56 |
| 7.1kW single | AC071RXADKG/EU AC071RNMDKG/EU |
6.8 / 8.0 | 6.1 / 4.0 | 20A | 1/4", 5/8" | 50m (30m) | £1,752.80 |
| 10kW single | AC100RXADKG/EU AC100RNMDKG/EU |
10.0 / 11.2 | 5.9 / 4.0 | 30A | 3/8", 5/8" | 50m (30m) | £2,284.80 |
| 12kW single | AC120RXADKG/EU AC120RNMDKG/EU |
12.0 / 13.2 | 5.8 / 4.0 | 30A | 3/8", 5/8" | 50m (30m) | £2,515.52 |
| 14kW single | AC140RXADKG/EU AC140RNMDKG/EU |
13.4 / 15.5 | 6.0 / 4.0 | 40A | 3/8", 5/8" | 75m (30m) | £2,814.56 |
| 10kW three | AC100RXADNG/EU AC100RNMDKG/EU |
10.0 / 11.2 | 5.9 / 4.0 | 20A/ph | 3/8", 5/8" | 50m (30m) | £2,369.92 |
| 12kW three | AC120RXADNG/EU AC120RNMDKG/EU |
12.0 / 13.2 | 5.8 / 4.0 | 20A/ph | 3/8", 5/8" | 50m (30m) | £2,587.20 |
| 14kW three | AC140RXADNG/EU AC140RNMDKG/EU |
13.4 / 15.5 | 6.0 / 4.0 | 20A/ph | 3/8", 5/8" | 75m (30m) | £2,880.64 |
Options
- Condensate drain pump if gravity drainage isn't possible: MDP-G075SQ (internal) or MDP-G075SP (external).
- MIM-H04EN Wi-Fi kit; MRK-A10N receiver kit with AR-EH03E remote for wireless control.
- Plenums, ducting and grilles are not included.
F Gas installation requirement
This air conditioning system must be installed by an F Gas qualified engineer. In line with current regulations, proof of valid F Gas certification will be required at the point of purchase. Orders will not be processed or dispatched until this evidence has been provided.
Delivery
Supplied to order from Samsung and delivered on a tail-lift vehicle, kerbside, to mainland UK addresses. Heavy item delivery charge applies. Check the goods on delivery and note any damage before signing; unboxed or visibly damaged goods must be reported within 72 hours.
The Samsung product information sheet is in the PDF downloads at the bottom of this page.
