Samsung CAC Large High Static Ducted Air Conditioning System 20kW–25kW (R410A, 3 Phase)
£4,931.36
Taxes included.
Free Shipping
On orders over £100* (On Select Products)
Secure Payment
100% secure checkout
Easy Returns
30-day return policy
Pickup available at F3 Castings Way, Leafbridge, Castings Way, Lincoln
Usually ready in 2-4 days
Availability: please read before ordering
Because of very high demand and ongoing manufacturer supply disruption, air conditioning and ventilation equipment is currently supplied to order. After you place your order we will contact you to confirm stock availability and the expected delivery date before your order is processed. Some manufacturer lead times are currently running into January 2027.
If the lead time does not work for you, you can cancel and receive a full refund.
Samsung CAC Large High Static Ducted Inverter Heat Pump System
Large high static pressure ducted system for big open spaces: warehouses, showrooms, gyms, halls and large offices, with long duct runs and multiple grilles.
- 20kW and 25kW, three phase
- High static pressure for long duct runs
- Supplied with MWR-WG01JN premium wired controller
- R410A refrigerant
System includes

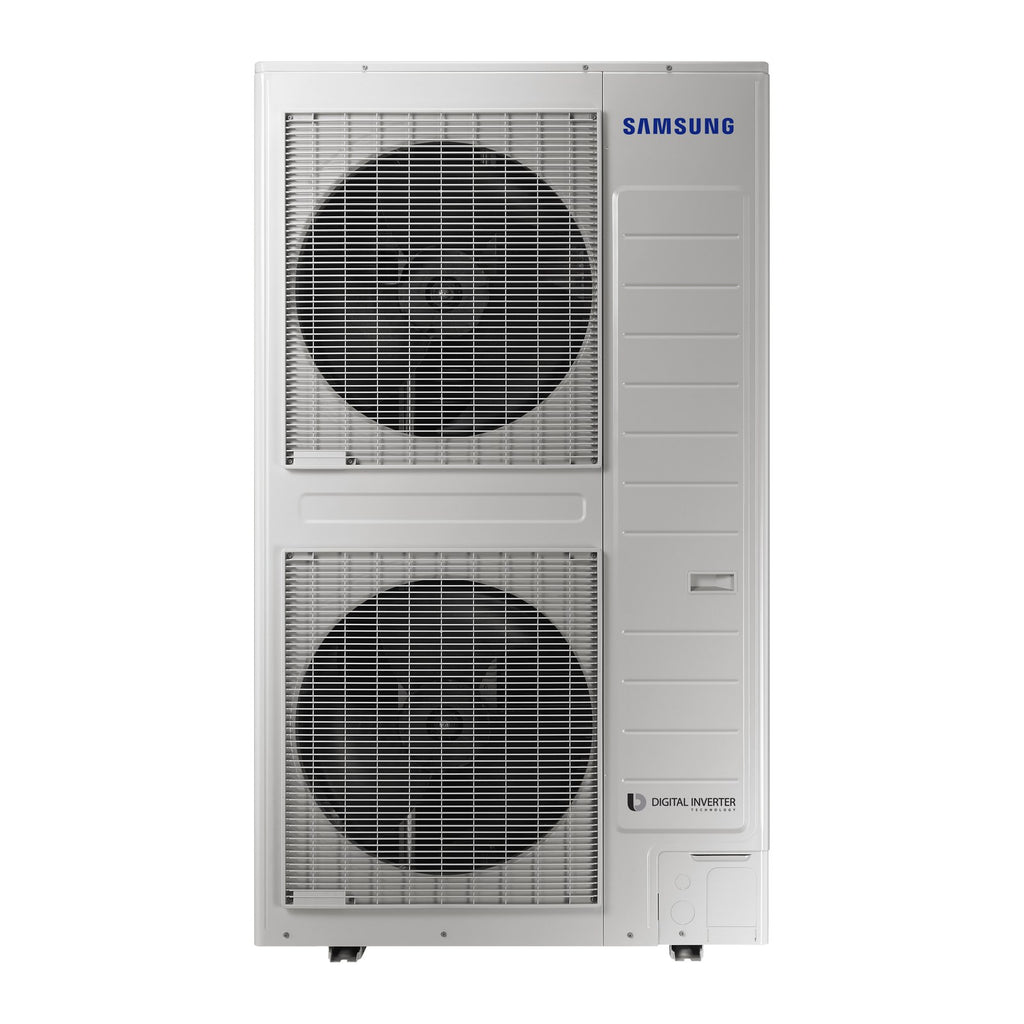

- 1 x matched Samsung R410A inverter outdoor unit

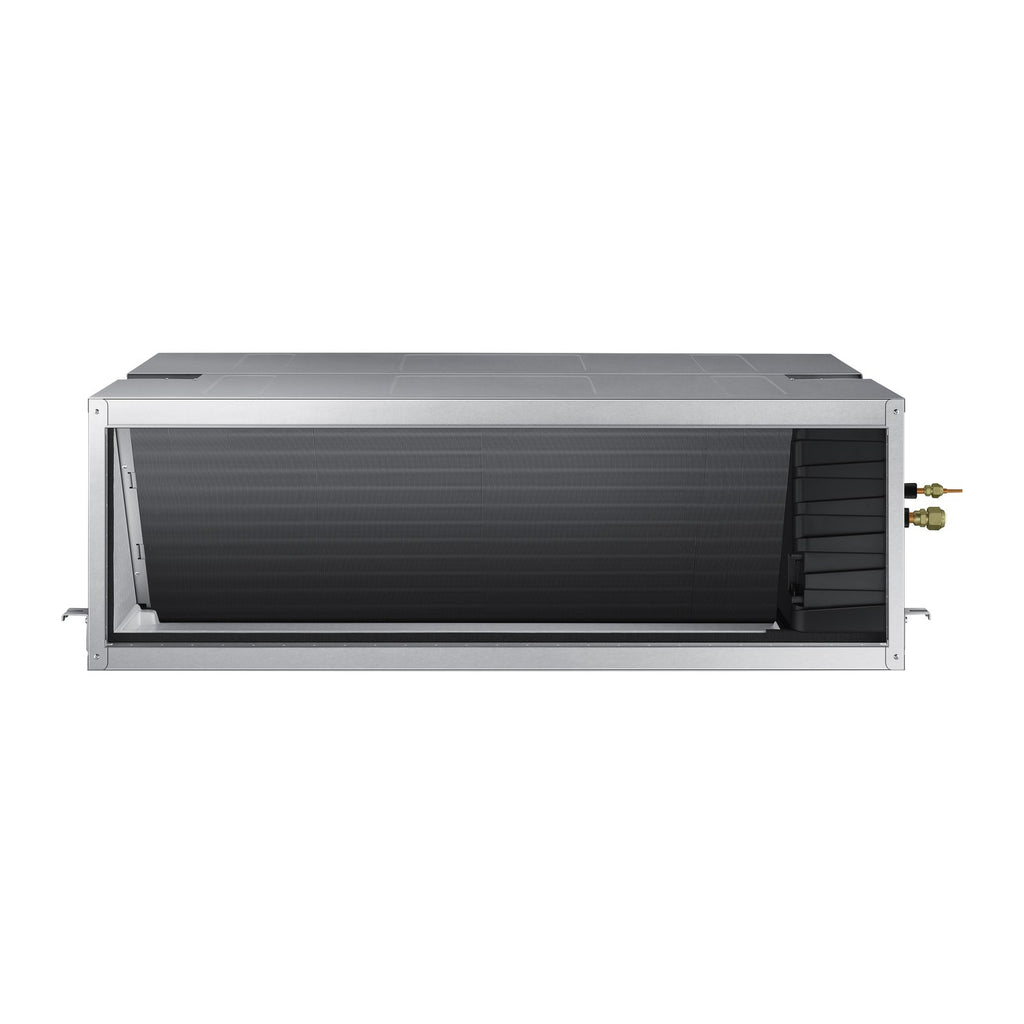

- 1 x indoor unit (model per size, below)
- 1 x Samsung MWR-WG01JN colour LCD premium wired controller
Every outdoor and indoor pairing below is Samsung's own published system combination from the 2026 price list.
Models, performance and prices
| Size | Outdoor / indoor | Cool / heat (kW) | EER / COP | Fuse | Pipes (liq, gas) | Max pipe (height) | Price |
|---|---|---|---|---|---|---|---|
| 20kW three | AC200KXAPNH/EU AC200KNHPKH/EU |
20.0 / 23.0 | 3.1 / 3.5 | 30A/ph | 3/8", 3/4" | 75m (30m) | £4,931.36 |
| 25kW three | AC250KXAPNH/EU AC250KNHPKH/EU |
25.0 / 27.0 | 2.6 / 3.2 | 30A/ph | 3/8", 7/8" | 75m (30m) | £5,536.16 |
Important
- A separate single phase supply is required for the indoor unit.
- Filters are not supplied by Samsung: in-line duct filters are recommended.
- Condensate pump if needed: MDP-G075SP.
- Plenums, ducting and grilles are not included.
F Gas installation requirement
This air conditioning system must be installed by an F Gas qualified engineer. In line with current regulations, proof of valid F Gas certification will be required at the point of purchase. Orders will not be processed or dispatched until this evidence has been provided.
Delivery
Supplied to order from Samsung and delivered on a tail-lift vehicle, kerbside, to mainland UK addresses. Heavy item delivery charge applies. Check the goods on delivery and note any damage before signing; unboxed or visibly damaged goods must be reported within 72 hours.
The Samsung product information sheet is in the PDF downloads at the bottom of this page.
Shop the Samsung commercial (CAC) range
Smaller space? See the Duct S system up to 14kW.
- Samsung CAC WindFree wall system 2.6–7.1kW
- Samsung CAC 10kW wall mounted system (standard or high efficiency)
- Samsung CAC 360 cassette system 7.1–14kW
- Samsung CAC WindFree 4-way cassette system 5–14kW
- Samsung CAC WindFree mini 4-way cassette system 2.6–7.1kW
- Samsung CAC WindFree 1-way cassette system 2.6–3.5kW
- Samsung CAC ceiling suspended system 5–14kW
- Samsung CAC floor console system 2.6–5kW
- Samsung CAC Duct S MSP ducted system 3.5–14kW
- Samsung CAC slim ducted system 2.6–7.1kW
Controls: air conditioning controls & accessories. Multi-room? See Samsung FJM multi split. Browse all commercial split systems.
PDF Downloads
Manufacturer documents for this product.
