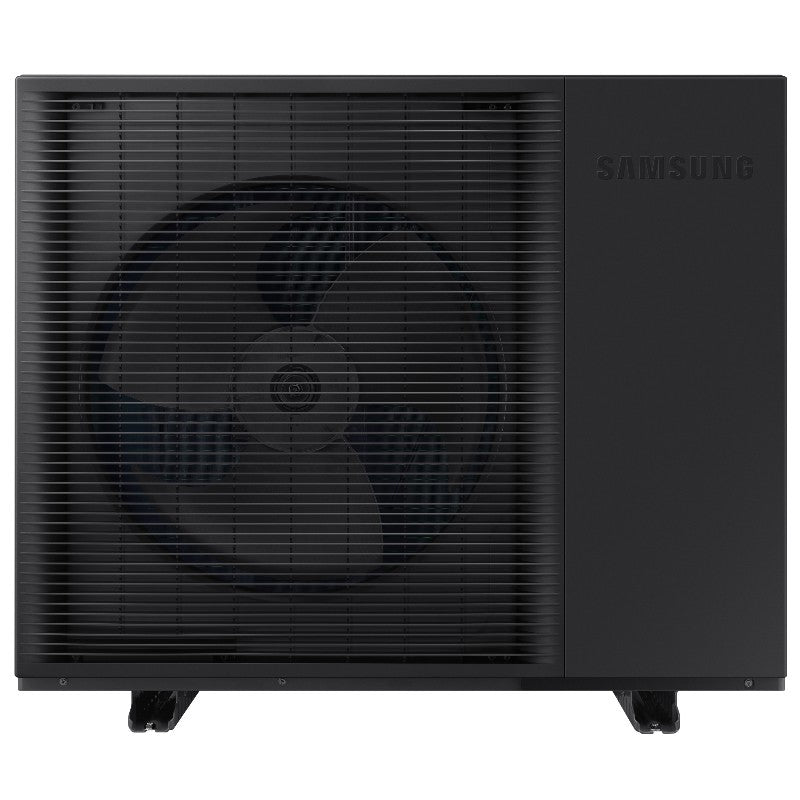

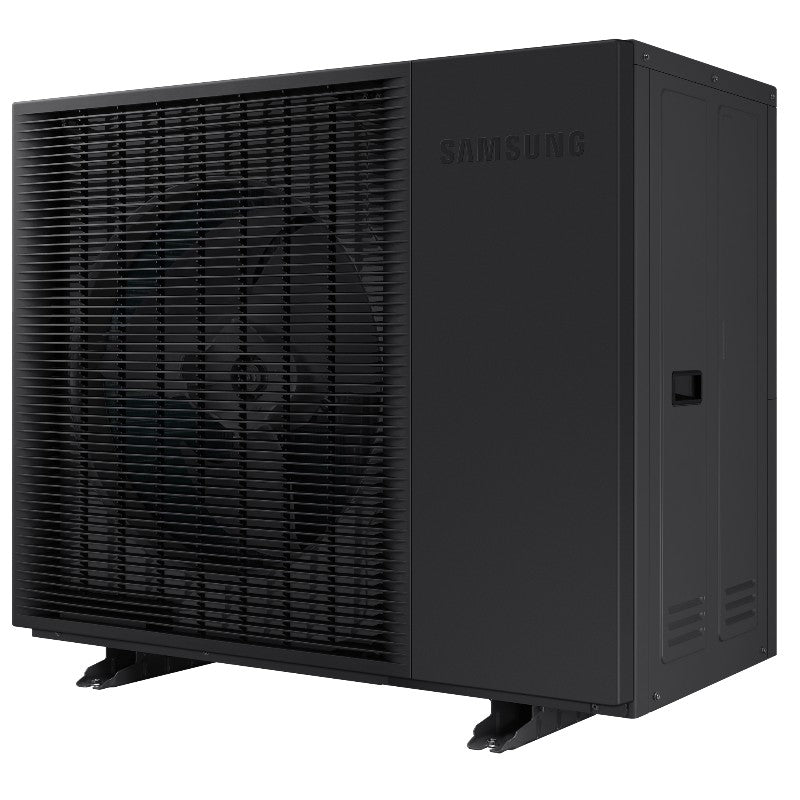

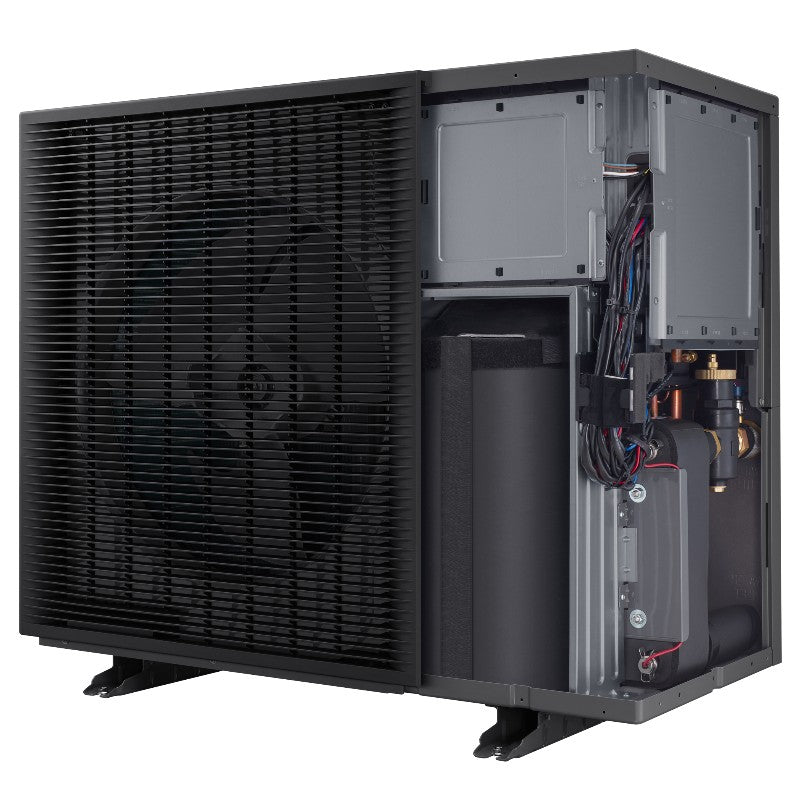

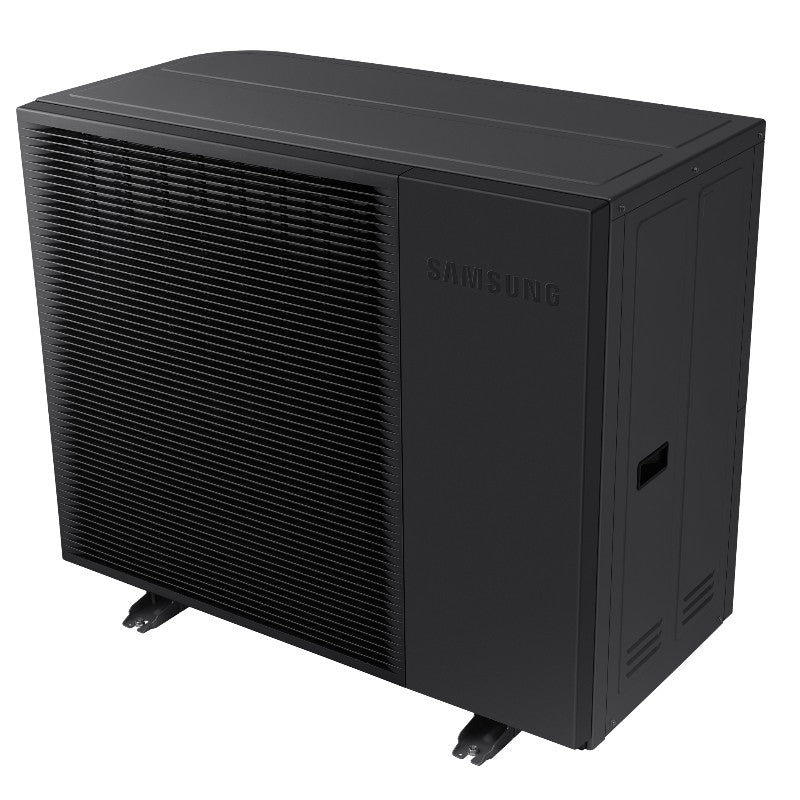

Samsung Mono 5kw A2W Inverter Heat Pump R290 1PH - AE050CXYDEK/EU
Samsung Mono 5kw A2W Inverter Heat Pump R290 1PH - AE050CXYDEK/EU
Samsung Mono 5kw A2W Inverter Heat Pump R290 1PH - AE050CXYDEK/EU
Samsung Mono 5kw A2W Inverter Heat Pump R290 1PH - AE050CXYDEK/EU
  • SKU: PLUMHEAT4681
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

Samsung Mono 5kw A2W Inverter Heat Pump R290 1PH - AE050CXYDEK/EU

£2,586.00

Presenting the Samsung 5kW Gen 7 R290 Heat Pump, a reliable single fan monobloc unit that incorporates the lower GWP refrigerant, R290. This marks Samsung's first model with this attribute. Samsung heat pumps, known for their sturdy performance in the UK, come with a 7-year warranty upon completion of their training.

The use of R290 assures a longer lifespan for the unit compared to the R32 range, due to be phased out in 2026. These units can be paired with both pre-plumbed cylinders and standard DHW tanks. Choosing this option allows for the installation of the new MIM control board, which includes a standard wifi controller. Be aware, this is a standalone heat pump; all necessary and additional components must be bought separately from the outdoor unit.

For further information on the MIM-EN control board and compatible pre-plumbed cylinders, please contact our team.

Heat Pump Specifications:
- Nominal capacity: 5.00kW
- Output at W45/A-2: 4.95kW
- Power input W35/A-7: 1.67kW
- Compressor type: Rotary
- Refrigerant type: R290
- Refrigerant volume: 0.63kg
- Nominal flow rate: 14.40 L/m
- Minimum water volume: 30 L

Product Details:
- Product code: AE050CXYDEK/EU
- Maximum flow temperature: 75°C
- Minimum operating temperature: -25°C
- Maximum operating temperature: 35°C
- Electrical supply: 220-240V
- Sound power level: 55 dB(A)
- Water In/Out: BSPP 1" male
- Product Dimensions (Height x Width x Depth): 850mm x 998mm x 500mm
- Net weight: 86kg
- Shipping weight: 99kg

MCS Listed SCOPs:
- @35°C: 4.84
- @40°C: 4.49
- @45°C: 4.14
- @50°C: 3.78
- @55°C: 3.43
- @60°C: 3.18
- @65°C: 2.93

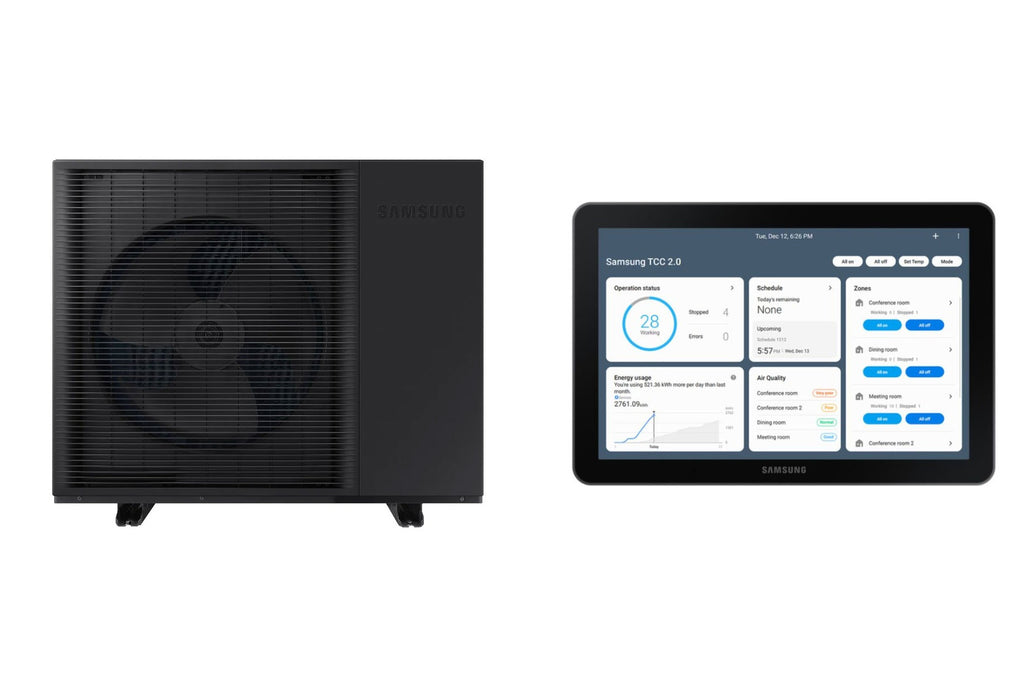

This heat pump requires the additonal purchase of "Samsung Mono Gen 6 Control Kit". This is available in the add on section or by searching our product section.

Samsung Mono R290 1Phase Manufacturers Installation Manual
