Toshiba Shorai Edge R32 Wall Mounted Air Conditioner Single Split
The Toshiba Shorai Edge is a modern single split air conditioner and heat pump using R32 refrigerant. It comes in six sizes from 2.5 kW up to 7.0 kW and has built in WiFi as standard. The indoor unit is available in white or black so you can match the system to your room. Shorai Edge runs quietly and gives reliable cooling and heating for bedrooms, lounges, home offices and larger open plan spaces.

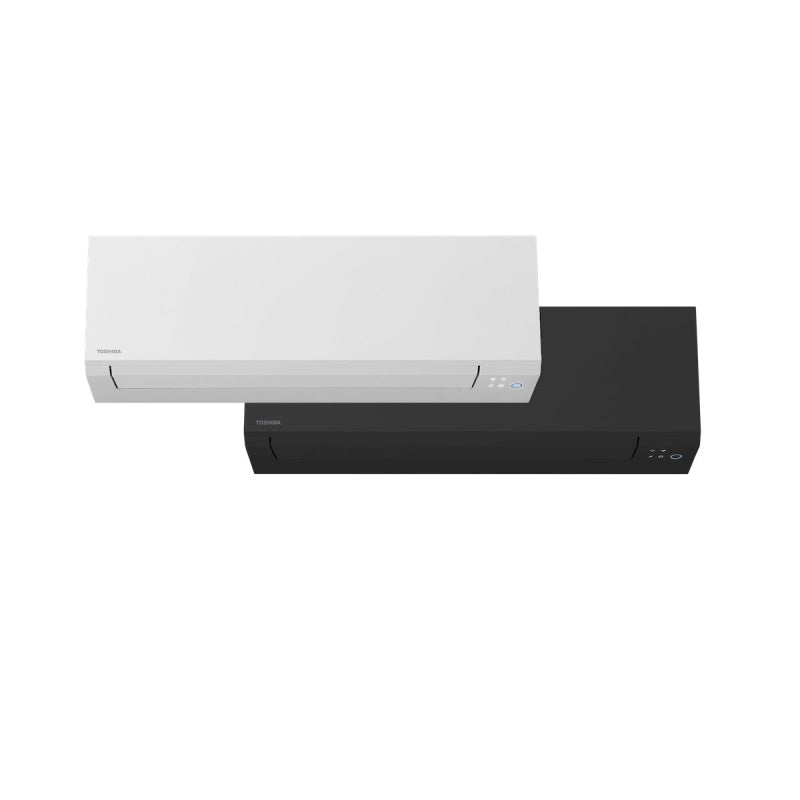

Indoor unit finish options
-

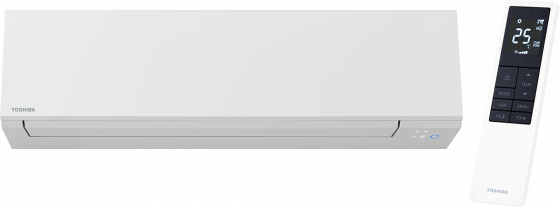

White fascia clean and minimal for most interiors
-

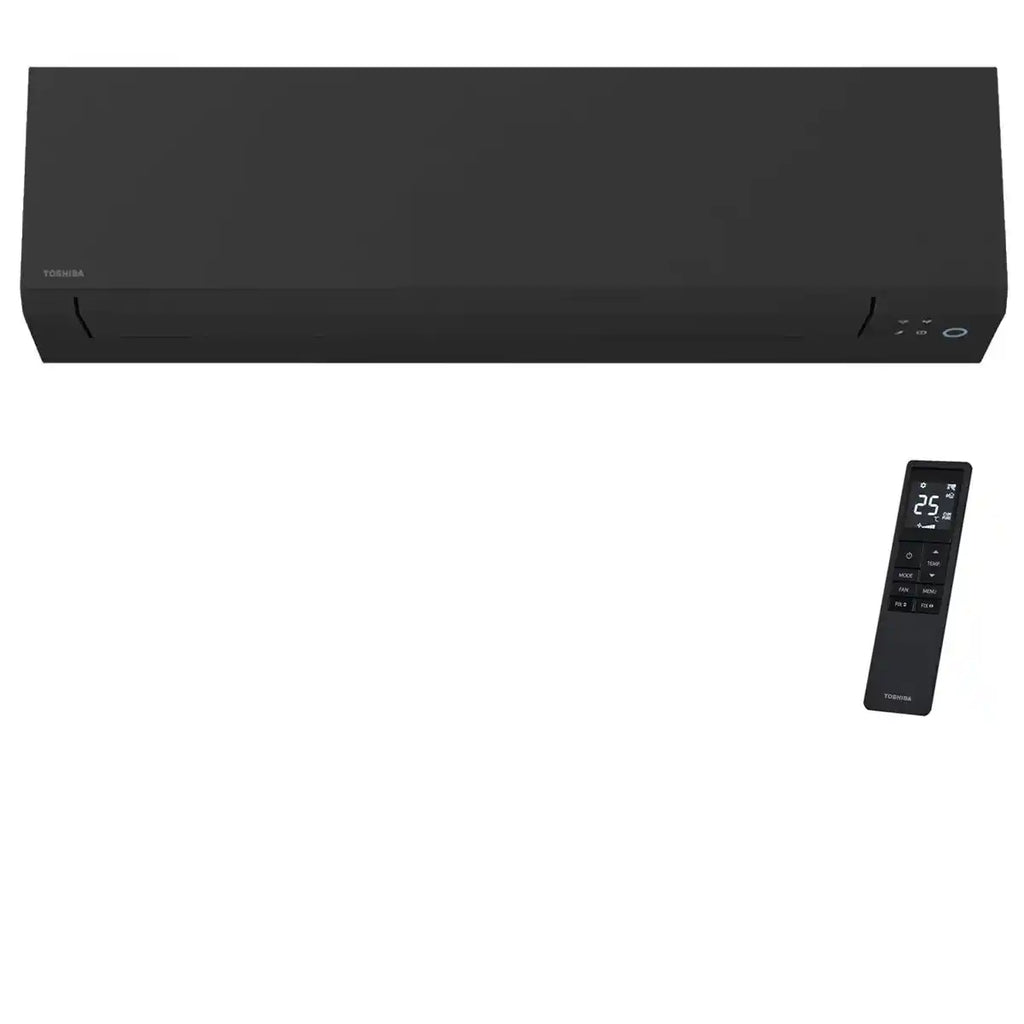

Black fascia modern and bold for contemporary décor
Key features
- Six capacities 2.5 kW, 3.5 kW, 4.6 kW, 5.0 kW, 6.1 kW and 7.0 kW
- Built in WiFi as standard control through the Toshiba Home AC Control app
- Efficient heating and cooling with inverter technology
- R32 refrigerant with lower environmental impact
- High seasonal efficiency SEER up to 8.6 and SCOP up to 5.1 on selected sizes
- Quiet indoor operation as low as 19 dB A
- Filtered airflow and self cleaning indoor coil
Ideal applications
- 2.5 kW bedrooms and small rooms
- 3.5 kW bedrooms, lounges and home offices
- 4.6 kW medium to large rooms
- 5.0 kW larger lounges and multi use rooms
- 6.1 kW large rooms and small open plan spaces
- 7.0 kW large rooms and open plan living areas
Model options indoor and outdoor part numbers
- 2.5 kW indoor white RAS B10G3KVSG E, indoor black RAS B10G3KVSGB E, outdoor RAS 10J2AVSG E1
- 3.5 kW indoor white RAS B13G3KVSG E, indoor black RAS B13G3KVSGB E, outdoor RAS 13J2AVSG E1
- 4.6 kW indoor white RAS B16G3KVSG E, indoor black RAS B16G3KVSGB E, outdoor RAS 16J2AVSG E1
- 5.0 kW indoor white RAS B18G3KVSG E, indoor black RAS B18G3KVSGB E, outdoor RAS 18J2AVSG E
- 6.1 kW indoor white RAS B22G3KVSG E, indoor black RAS B22G3KVSGB E, outdoor RAS 22J2AVSG E
- 7.0 kW indoor white RAS B24G3KVSG E, indoor black RAS B24G3KVSGB E, outdoor RAS 24J2AVSG E
Cooling performance
- 2.5 kW nominal 2.5 kW, operating range 0.89 to 3.20 kW
- 3.5 kW nominal 3.5 kW, operating range 1.00 to 4.10 kW
- 4.6 kW nominal 4.6 kW, operating range 1.20 to 5.30 kW
- 5.0 kW nominal 5.0 kW, operating range 1.20 to 6.00 kW
- 6.1 kW nominal 6.1 kW, operating range 1.39 to 6.70 kW
- 7.0 kW nominal 7.0 kW, operating range 1.70 to 7.70 kW
Heating performance
- 2.5 kW nominal 3.2 kW, operating range 0.90 to 4.80 kW
- 3.5 kW nominal 4.2 kW, operating range 1.00 to 5.30 kW
- 4.6 kW nominal 5.5 kW, operating range 1.10 to 6.50 kW
- 5.0 kW nominal 6.0 kW, operating range 1.10 to 6.50 kW
- 6.1 kW nominal 7.0 kW, operating range 1.15 to 7.50 kW
- 7.0 kW nominal 8.0 kW, operating range 1.70 to 8.80 kW
Efficiency and energy labels
- SEER up to 8.6 on smaller capacities
- SCOP up to 5.1 on smaller capacities
- Cooling energy class up to A triple plus
- Heating energy class up to A triple plus on smaller sizes and A double plus on larger sizes
Indoor unit details
- 2.5 and 3.5 kW 293 mm high, 800 mm wide, 226 mm deep, 10 kg
- 4.6, 5.0, 6.1 and 7.0 kW 320 mm high, 1053 mm wide, 245 mm deep, 14 kg
- Indoor sound pressure quiet mode from 19 dB A
- Indoor sound pressure high fan up to 47 dB A depending on size
- Airflow from approximately 660 to 1122 cubic metres per hour depending on size
Outdoor unit details
- 2.5 to 6.1 kW 550 mm high, 780 mm wide, 290 mm deep
- 7.0 kW 630 mm high, 800 mm wide, 300 mm deep
- Outdoor weights from 26 kg to 42 kg depending on size
- Outdoor sound pressure mid to high 40 dB A depending on size
Pipe sizes refrigerant line sizes
- 2.5 kW 1/4" × 3/8"
- 3.5 kW 1/4" × 3/8"
- 4.6 kW 1/4" × 1/2"
- 5.0 kW 1/4" × 1/2"
- 6.1 kW 1/4" × 1/2"
- 7.0 kW 1/4" × 1/2"
Refrigerant and pipework information
- Refrigerant R32
- Minimum pipe length 2 metres
- Maximum pipe length 20 metres on 2.5 to 6.1 kW and 25 metres on 7.0 kW
- Maximum height separation 12 metres on 2.5 to 6.1 kW and 15 metres on 7.0 kW
- Charge free length 15 metres
- Factory charge 0.55 kg to 1.14 kg depending on size
Electrical information
- Single phase 220 to 240 volt 50 hertz power supply
- Outdoor unit powered system
- Installer must confirm final cable size and MCB rating on site
Comfort and control features
- Built in WiFi control compatible with Toshiba Home AC Control app
- Multiple fan speeds and quiet modes
- Timer and comfort functions
- Automatic restart after power loss
- Self cleaning indoor coil and multi stage filtration
Delivery information
Stock is updated daily. Estimated arrival or delivery time is 1 to 5 working days. If we cannot fulfil your order we will contact you within 1 working day.
F Gas installation and legal requirements
These units must be installed by an F Gas qualified engineer. We can install the unit for you using our own F Gas certified engineers.
If you purchase supply only you must give us your F Gas registration details before dispatch. We will not ship the product until we have evidence that an F Gas certified installer will be carrying out the works.
This is required under Article 11 section 5 of EC 517 2014 and The Fluorinated Greenhouse Gases Regulations 2015.
Our REFCOM registration number is REF1020263.
