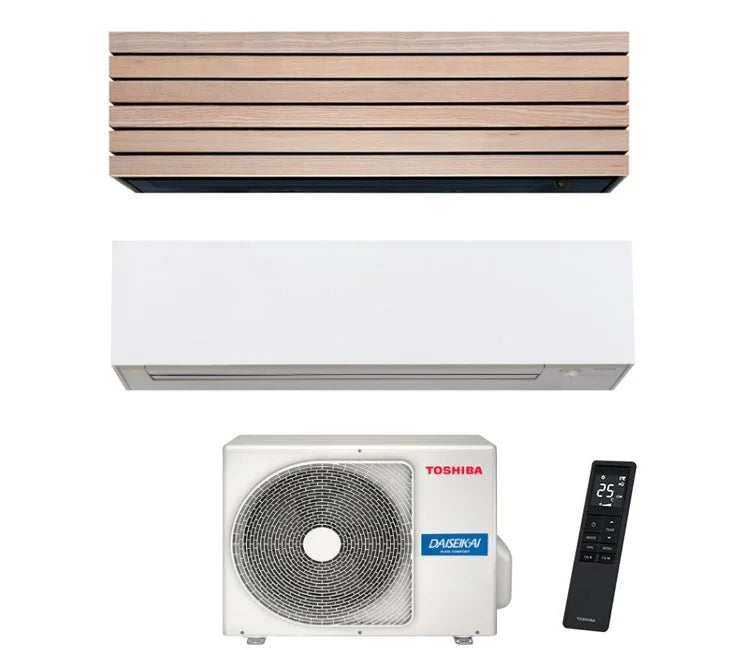

Toshiba DAISEIKAI 10 Wall Mounted Air Conditioner (Single Split, R32)
The Toshiba DAISEIKAI 10 is a premium single split wall-mounted air conditioner and heat pump designed for top-end efficiency, comfort and indoor air quality. It uses R32 refrigerant, includes built-in WiFi, and features one of the quietest and most refined indoor units in Toshiba’s line-up.
This model is available in two fascia finishes to suit different interior styles:
-
White fascia – clean, modern and minimal, ideal for contemporary interiors.
-
Wood-effect fascia – a premium textured finish designed to blend into natural, rustic or Scandinavian-style rooms.
Both versions share the same internal technology, performance levels, airflow pattern and casing dimensions – the fascia is the only aesthetic difference. This allows you to select the look that suits your room without affecting technical performance.
Key features
- A+++ efficiency in cooling and heating (depending on size)
- SEER up to 10.7 and SCOP up to 5.3
- Built-in WiFi with Toshiba Home AC Control app
- Smart Sensing – motion tracking, occupancy detection and energy-saving adjustments
- Ultra Pure PM2.5 filtration and Plasma Ioniser
- Magic Coil resin-coated heat exchanger for cleaner operation
- Available in White or Wood-effect fascia (select variant)
- Extremely quiet indoor operation – as low as 19 dB(A)
Ideal applications
- Bedrooms and loft rooms
- Lounge and living areas
- Home offices and studios
- Garden rooms and small commercial spaces
Sizing guide
Use this as a simple guide. A full heat-loss or cooling-load calculation is recommended for accuracy.
-
2.5 kW – smaller bedrooms or well-insulated compact rooms
-
3.5 kW – average-sized lounges, bedrooms and home offices
-
5.0 kW – larger rooms, high ceilings or small open-plan spaces
Model options
- 2.5 kW – indoor RAS-B10S4KVPG-E / outdoor RAS-10S4AVPG-E
- 3.5 kW – indoor RAS-B13S4KVPG-E / outdoor RAS-13S4AVPG-E
- 5.0 kW – indoor RAS-B18S4KVPG-E / outdoor RAS-18S4AVPG-E
Technical highlights
- Refrigerant: R32
-
Indoor unit size (White or Wood-effect fascia): 293 mm (H) × 930 mm (W) × 255 mm (D)
-
Indoor unit weight: approx. 14 kg (both fascia options)
-
Outdoor unit size (all sizes): 630 mm (H) × 800 mm (W) × 300 mm (D)
-
Outdoor unit weight: approx. 38 kg
- Toshiba DC twin-rotary inverter compressor
Pipe sizes (refrigerant line sizes)
- 2.5 kW – ¼" × ⅜" (6.35 mm × 9.52 mm)
- 3.5 kW – ¼" × ⅜" (6.35 mm × 9.52 mm)
- 5.0 kW – ¼" × ½" (6.35 mm × 12.70 mm)
Additional pipework information
- Minimum pipe length: 2 metres
- Maximum pipe length: 25 metres
- Maximum height separation: 15 metres
- Charge-free length: 15 metres
- Additional refrigerant: refer to installation manual for per-metre values
Electrical information
- Power supply: 220–240 V, single phase, 50 Hz
- Recommended protection: 16 A MCB (typical)
- Final cable sizing to be confirmed by the installing electrician
Sound levels
- Indoor (quiet mode): from 19 dB(A)
- Indoor (high fan): approx. 40–44 dB(A)
- Outdoor: typically mid to high 40 dB(A)
Operating temperature ranges
- Cooling: −15 °C to +46 °C
- Heating: −20 °C to +24 °C
Comfort and smart features
- Built-in WiFi – Toshiba Home AC Control app
- Motion sensing and energy-saving occupancy modes
- Energy monitoring through the app
- Ultra Pure PM2.5 filtration
- Plasma Ioniser
- Magic Coil self-cleaning coil surface
- HADA Care gentle airflow distribution
Delivery information
Stock is fluid and updated daily. Estimated arrival or delivery time is 1 to 5 working days.
If we cannot fulfil your order for any reason, we will contact you within 1 working day of the order being placed.
F-Gas installation and legal requirements
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our own F-Gas certified engineers.
If you purchase supply-only, you must provide valid F-Gas details before we dispatch. We will not ship the unit until evidence of an F-Gas certified installer is supplied.
This is required under Article 11(5) of EC 517/2014 and The Fluorinated Greenhouse Gases Regulations 2015.
Our REFCOM number is REF1020263.
