Viessmann 60mm Plume Management Bends 45° and 87°
Genuine Viessmann 60mm bends for the Viessmann plume management kit on Vitodens boilers, to route the plume pipe away from windows, doors and boundaries.

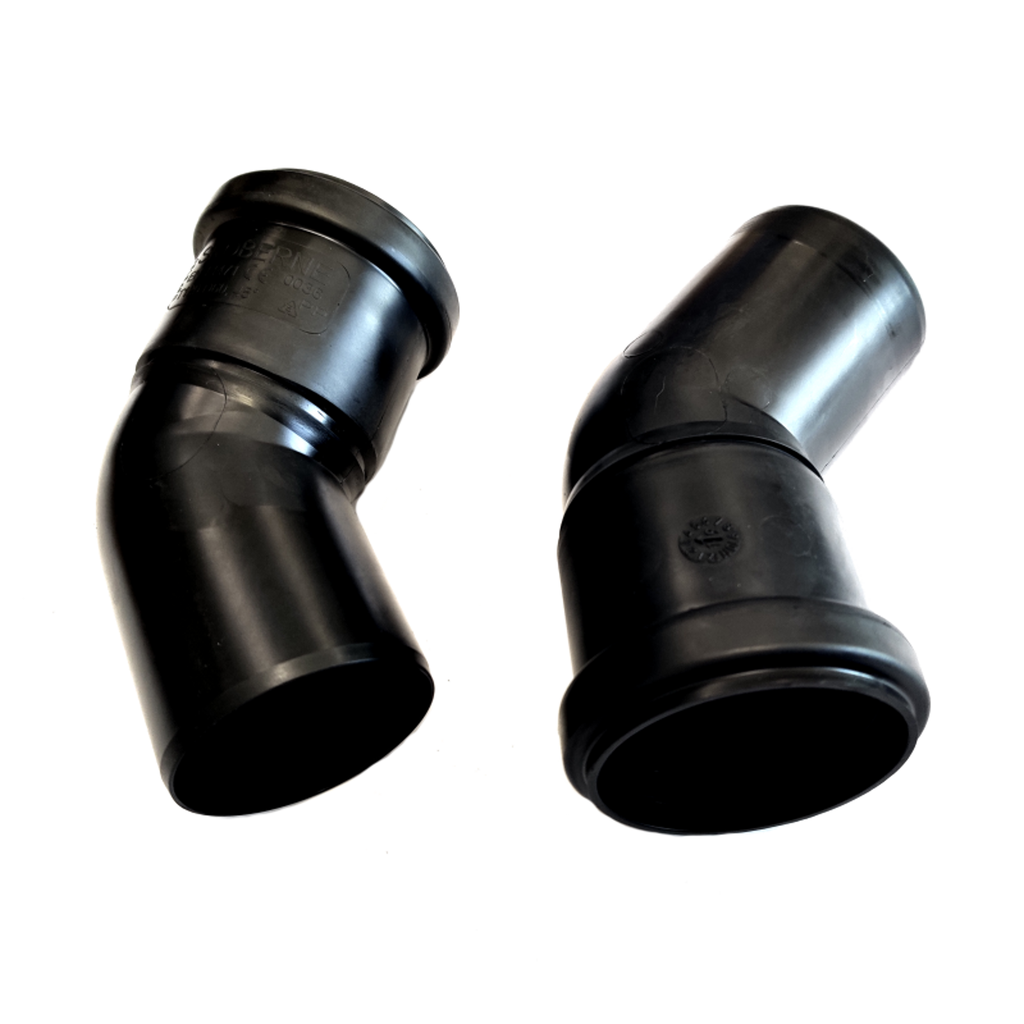

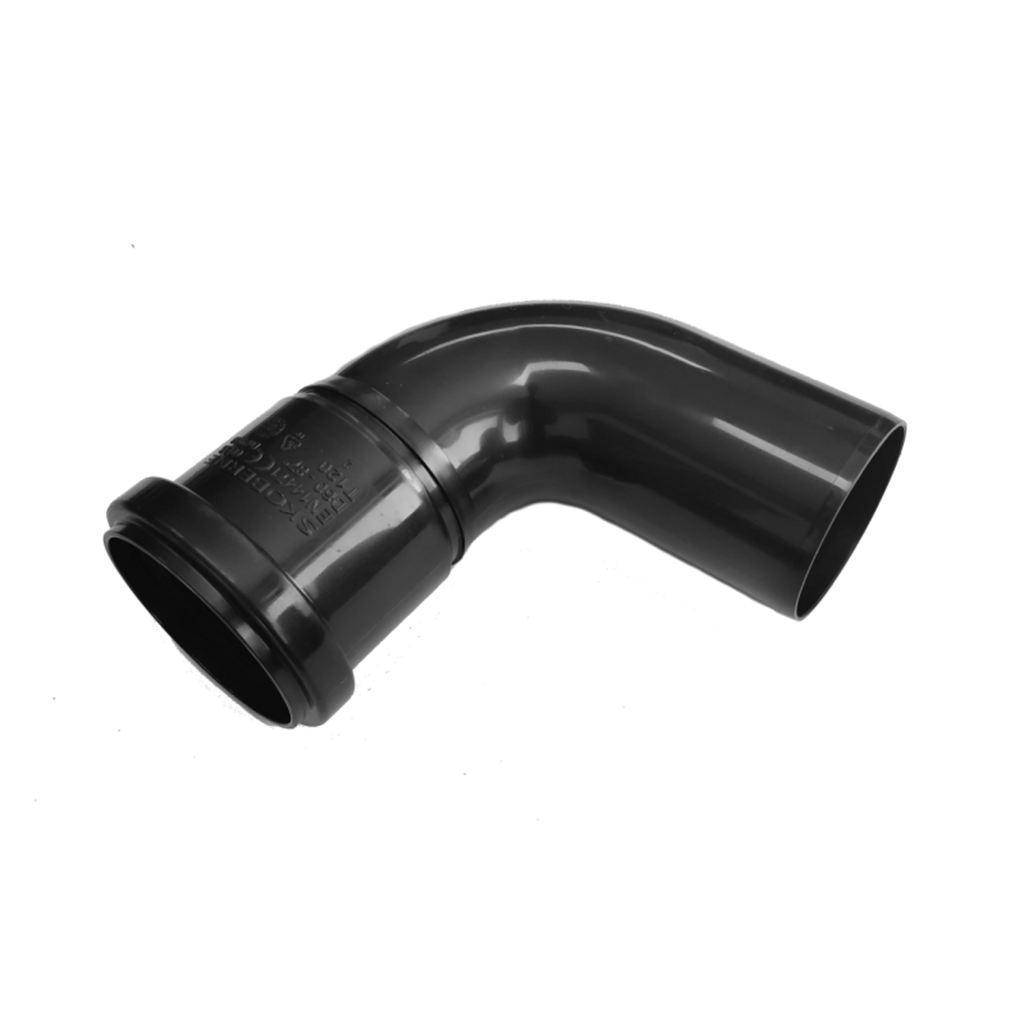

- 45° bend (7373266) or 87° bend (7373267)
- 60mm plume pipe diameter
- For the plume management kit 7946889 and 1m plume extensions
What is included
- 1 x Viessmann 60mm plume bend in the angle selected
Options and prices
| Option | Viessmann code | Price inc VAT |
|---|---|---|
| 45° bend | 7373266 | £33.99 |
| 87° bend | 7373267 | £13.99 |
Fits these boilers: Viessmann Vitodens 050-W Combi 25–35kW, Viessmann Vitodens 050-W System 19–25kW, Viessmann Vitodens 100-W Combi 26–35kW, Viessmann Vitodens 100-W System 11–32kW, Viessmann Vitodens 100-W Heat Only 11–32kW, Viessmann Vitodens 025-W Combi 24–28kW, Viessmann Vitodens 200-W System 11–32kW.
Installation and compliance
Installation
Installation must be by a Gas Safe registered engineer (oil: OFTEC registered), to the boiler's installation instructions and Building Regulations (Approved Document J). Use only Viessmann flue and plume components with Vitodens boilers.
Check maximum equivalent flue lengths for the boiler and route in the installation manual. Where a terminal is 2m or less above ground next to a public footpath, fit a terminal guard.
Delivery and collection
In stock at Leafbridge, Lincoln. Free UK delivery on orders over £50 (£4.99 under £50), or free collection, usually ready within 24 hours. Limited to the quantity we hold.
Viessmann's Vitodens flue system technical guide (8/2024) is in the PDF downloads at the bottom of this page.
