Worcester Bosch Greenstar 60/100 90° Flue Bend 7716191084
£65.99
Taxes included.
Free Shipping
On orders over £100* (On Select Products)
Secure Payment
100% secure checkout
Easy Returns
30-day return policy
Pickup available at F3 Castings Way, Leafbridge, Castings Way, Lincoln
Usually ready in 24 hours
Supplied to order. Usually with us in 2-4 working days.

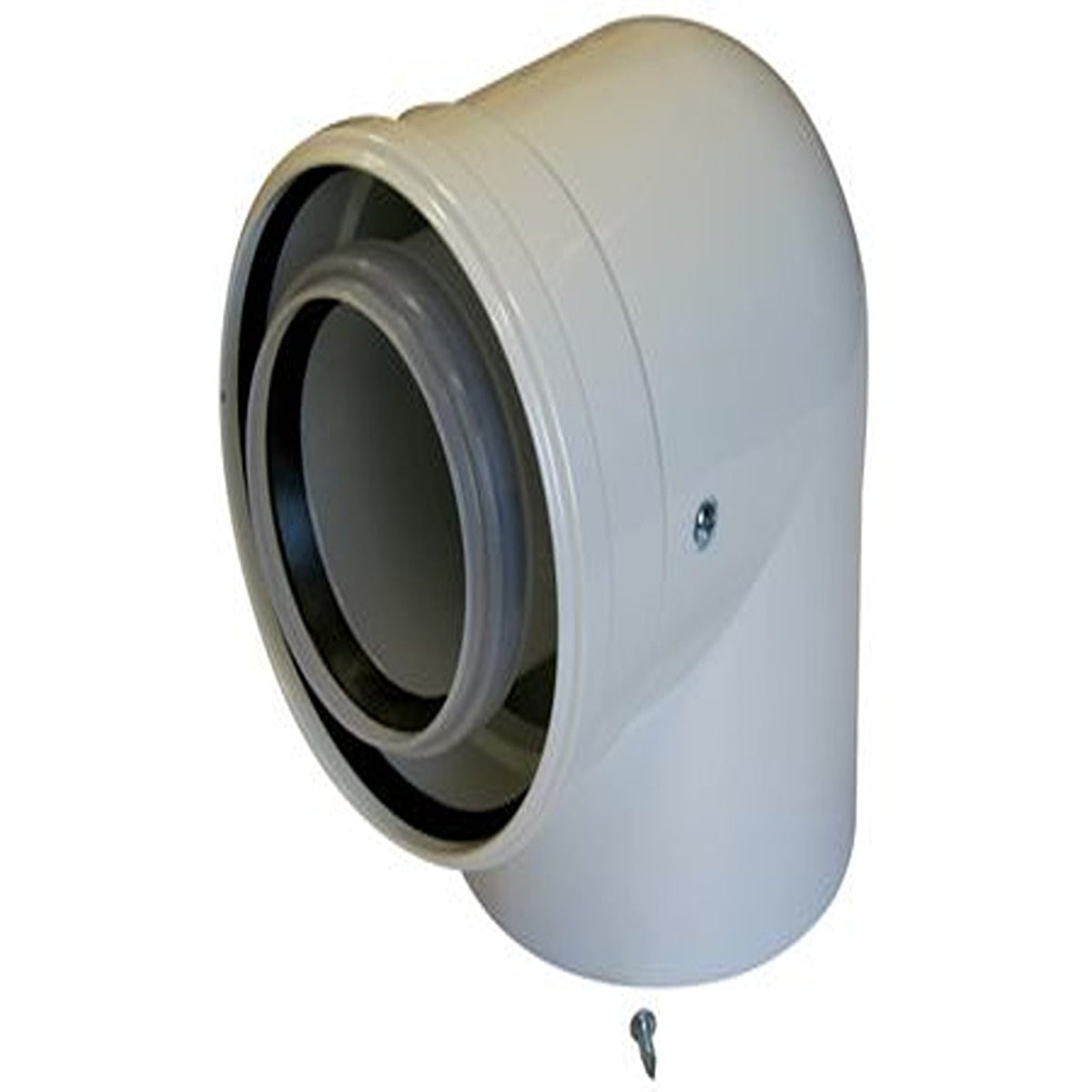

Worcester Bosch Greenstar 60/100 90° Flue Bend (7716191084)
Genuine Worcester Bosch 90° concentric flue bend for 60/100mm Greenstar flue systems, for turning a flue run or taking the flue out of the side of the boiler.
Key points
- Worcester part number 7 716 191 084
- 60/100mm concentric, white
- Push-fit to Worcester 60/100 extensions and flue kits
- Each bend reduces the maximum flue length: check the boiler manual
What's included
- 1 x 60/100 90° flue bend (7716191084)
Specification and price
| Part number | Diameter | Our code | Price (inc VAT) |
|---|---|---|---|
| 7716191084 | 60/100mm | PLUMHEAT0693 | £65.99 |
Fits these boilers: Greenstar 1000 combi · Greenstar 2000 combi · Greenstar 4000 combi · Greenstar 4000 system · Greenstar 8000+ combi · Greenstar 8000+ Style combi · Greenstar 8000+ system · Greenstar 8000+ regular · Greenstar Ri regular · Greenstar i System Compact · Greenstar CDi Compact combi · Greenstar 8000 Life 30kW regular (clearance). Always check the boiler installation manual for maximum flue length and terminal positions.
Installation and compliance
Gas flues must be installed by a Gas Safe registered engineer in line with Building Regulations, the Gas Safety (Installation and Use) Regulations and Worcester Bosch's instructions, including terminal clearances, flue support and the length reduction for every bend.
Delivery and collection
Free UK delivery on orders over £50, £4.99 under £50. Free collection from our Lincoln unit (Leafbridge Business Park, LN6 9WG), usually ready within 24 hours. Order-in items are usually with us in 2-4 working days.
Worcester Bosch's 60/100 horizontal flue installation instructions are in the PDF downloads at the bottom of this page.
