Conex Bänninger >B< MaxiPro Fitting Reducer

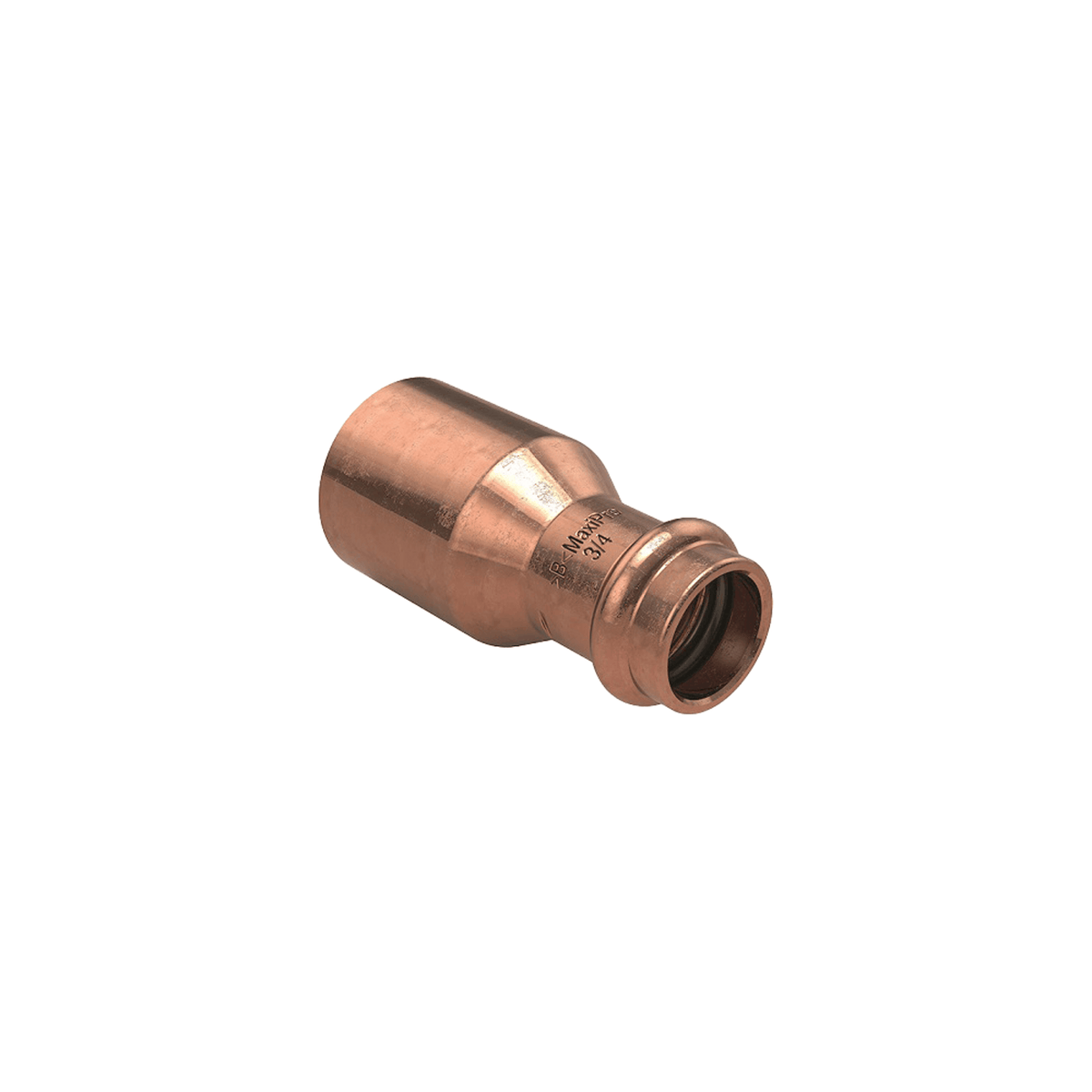

A flame-free fitting reducer from the Conex Bänninger >B< MaxiPro range for imperial (inch) refrigeration-grade copper on air conditioning, heat pump and refrigeration pipework. The large end is a fitting-size spigot that goes straight into the socket of another MaxiPro fitting (for example an elbow or coupler); the small end is a press socket for the smaller tube. Pressing replaces brazing, so there is no hot work, no nitrogen purge and no fire risk on site. Sold individually.

Key points

• Copper fitting reducer: fitting-size spigot (large end) x press socket (small end)
• Maximum operating pressure 48 bar (700 psi), suitable for high-pressure refrigerants such as R32 and R410A (see the MaxiPro refrigerants table for the full approved list)
• Operating temperature -40°C to +120°C
• HNBR sealing O-ring
• No flame, brazing or hot-work permit needed

What's included

1 x MaxiPro fitting reducer in the size selected.

Specification and prices

Options

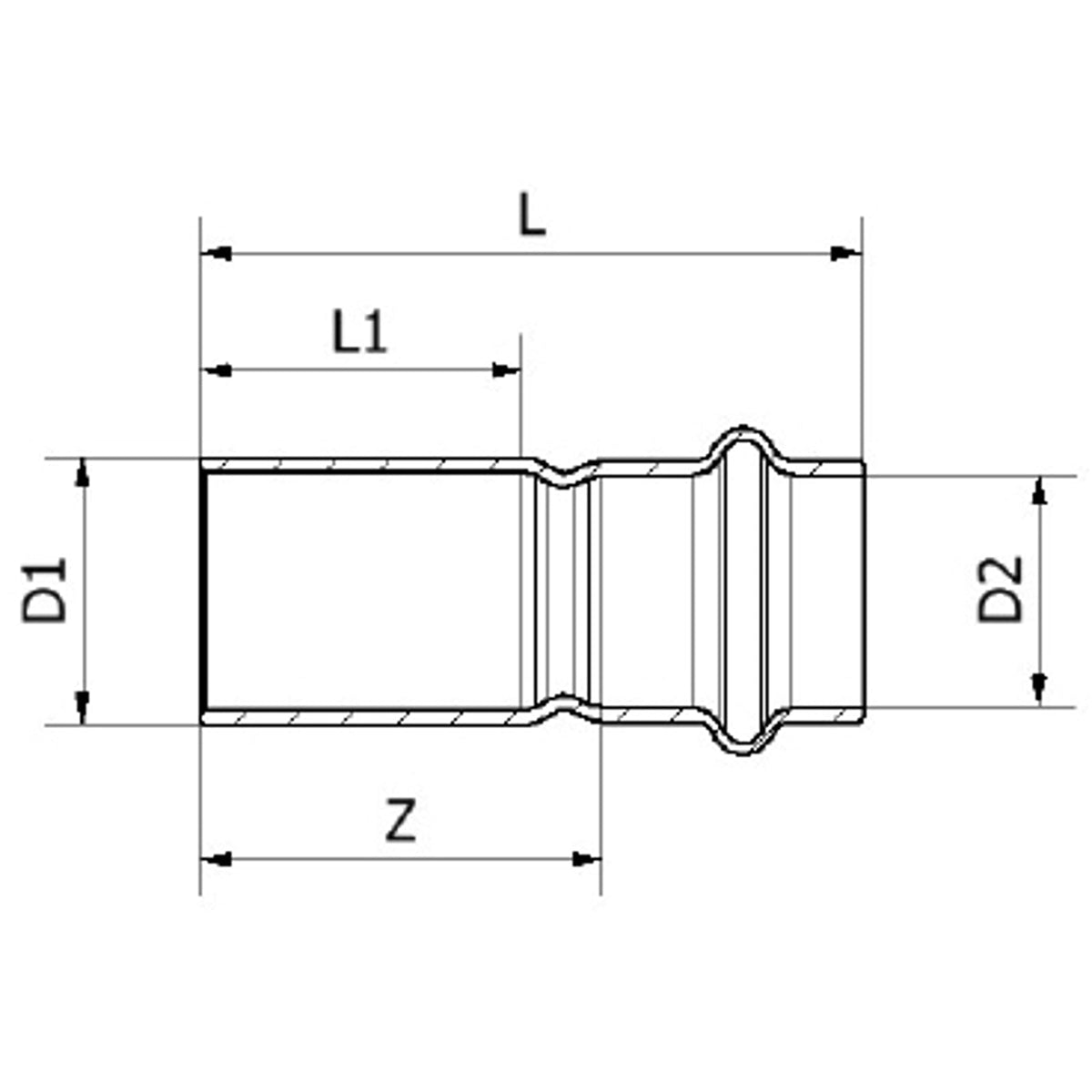

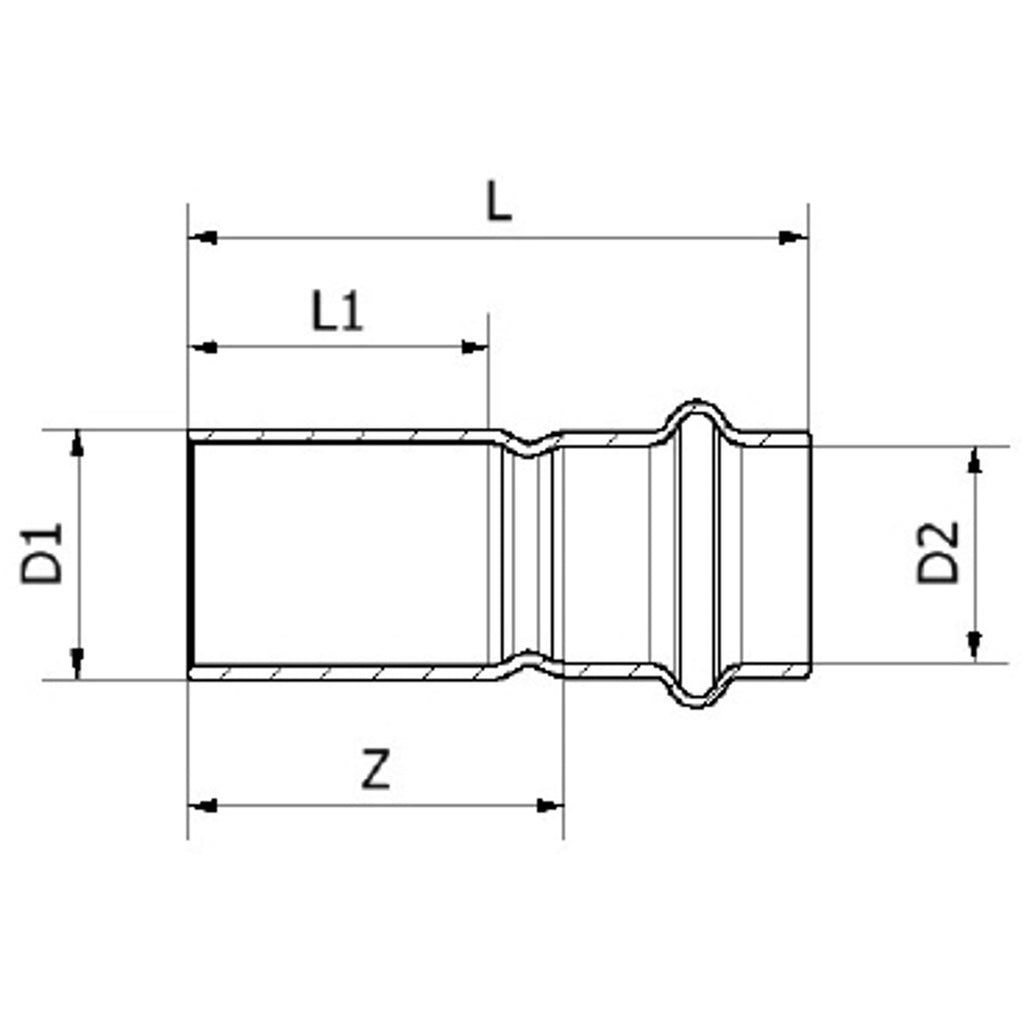

Choose the size from the Size option above. The first figure is the fitting (spigot) end, the second is the tube (press) end. If you need to reduce tube-to-tube, use a reducing coupler instead.

Installation and compliance

MaxiPro fittings must be pressed with a MaxiPro-approved press tool and the correct MaxiPro jaws; check the tool compatibility information in the technical brochure before use. Tube must be clean, deburred, fully inserted and marked to the correct insertion depth, and the spigot end must be fully inserted into the receiving MaxiPro fitting, as set out in the installation instructions. Work on refrigerant circuits must be carried out by an F-Gas certified engineer, and the system pressure and leak tested before charging.

Delivery and collection

Free UK delivery on orders over £50, £4.99 under £50. Free collection from our Lincoln unit (Leafbridge Business Park, LN6 9WG), usually ready within 24 hours.

Manufacturer datasheet is in the PDF downloads at the bottom of this page.
