Samsung EHS Mono HT Quiet R32 High Temperature Heat Pump 8kW–14kW
£5,663.90
Taxes included.
Free Shipping
On orders over £100* (On Select Products)
Secure Payment
100% secure checkout
Easy Returns
30-day return policy
Pickup available at F3 Castings Way, Leafbridge, Castings Way, Lincoln
Usually ready in 2-4 days

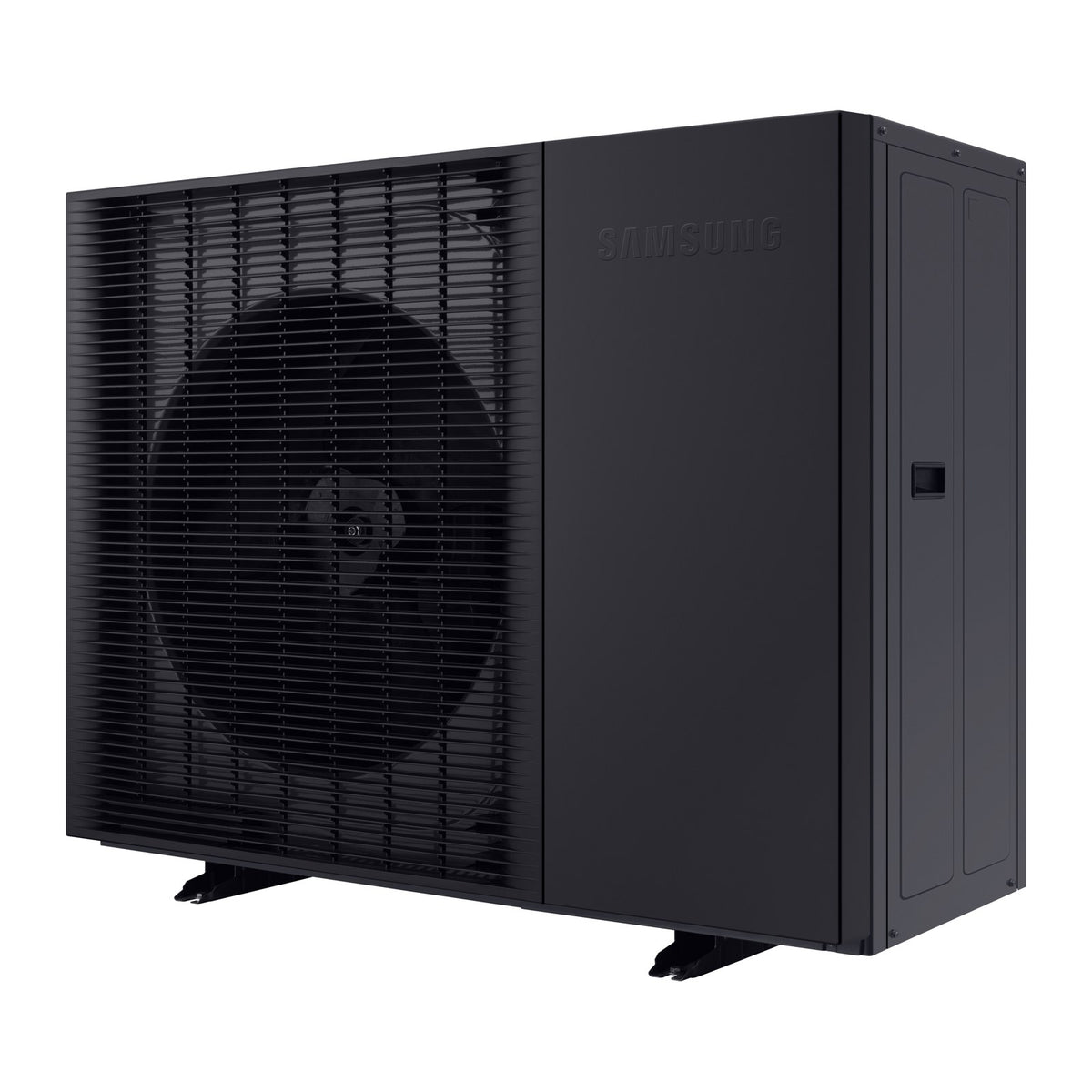

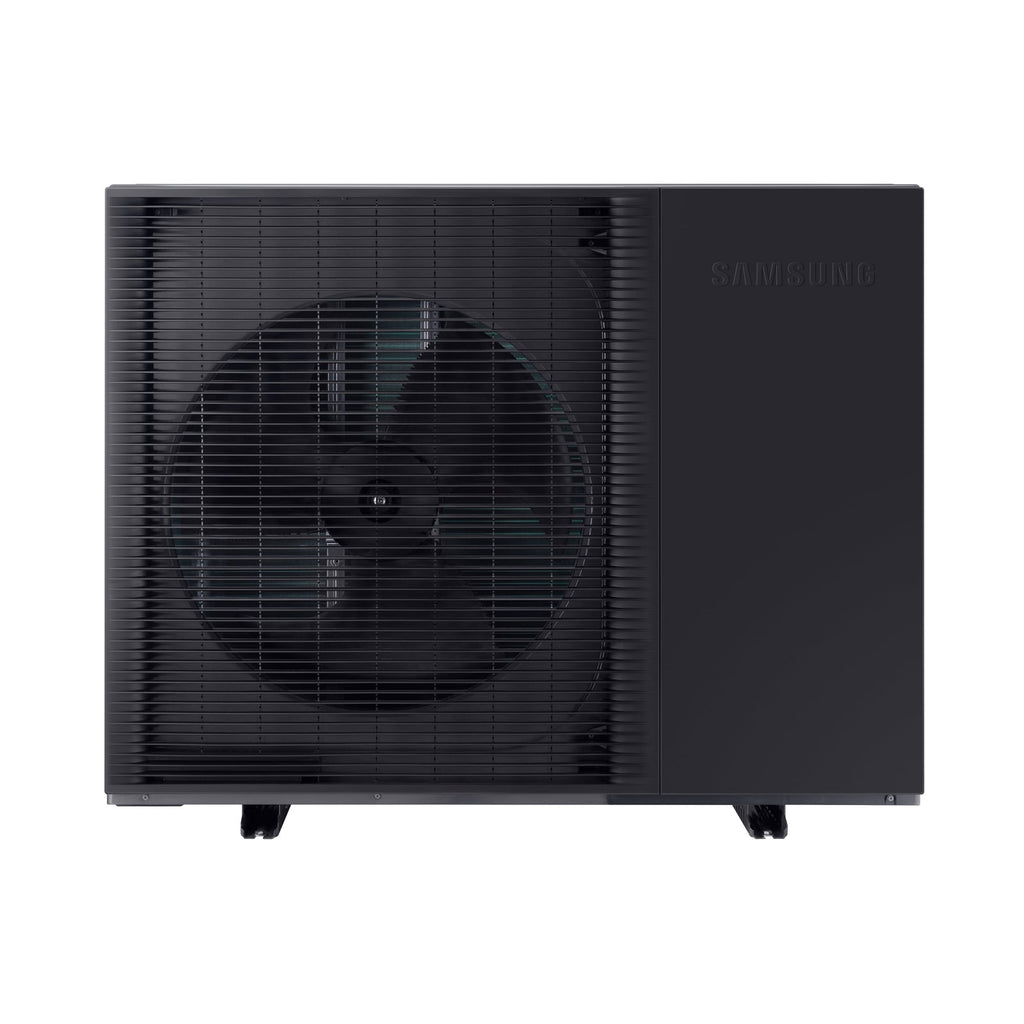

Samsung EHS Mono HT Quiet R32 High Temperature Heat Pump
Samsung HT Quiet R32 monobloc heat pump, designed for high flow temperatures and low noise, so it suits radiator systems in existing homes. Available in 8, 12 and 14kW with single or three phase supply.
- High temperature R32 monobloc: leaving water up to 70°C, depending on ambient conditions (Samsung data)
- Low-noise design for close-to-boundary installations
- 8kW to 14kW, single or three phase
- SmartThings app control with MIM-E03FN
Required with this unit: a Samsung control
A Samsung mono outdoor unit needs a controller to run. Choose "With MIM-E03FN control kit" (selected by default) for the 2-zone kit with 7" touch control and built-in Wi-Fi, priced in at £785.23.
Only choose "Unit only" if the system includes a Samsung ClimateHub mono tank, a Samsung Mono Hydrobox or a Samsung pre-plumbed cylinder (these have the control built in or pre-installed), or if you already have a compatible MIM kit such as the MIM-E03EN.
Models and prices
| Output | Supply | Model | Unit only | With MIM-E03FN |
|---|---|---|---|---|
| 8kW | Single phase | AE080BXYDEG/EU | £4,878.67 | £5,663.90 |
| 12kW | Single phase | AE120BXYDEG/EU | £5,737.70 | £6,522.93 |
| 14kW | Single phase | AE140BXYDEG/EU | £6,568.20 | £7,353.43 |
| 8kW | Three phase | AE080BXYDGG/EU | £5,120.74 | £5,905.97 |
| 12kW | Three phase | AE120BXYDGG/EU | £6,026.02 | £6,811.25 |
| 14kW | Three phase | AE140BXYDGG/EU | £6,895.87 | £7,681.10 |
MIM-E03FN: 2-zone mono control kit with 7" touch control and Wi-Fi. Samsung lists it for both single and three phase models.
Installation and compliance
- Monobloc: the refrigerant circuit is sealed in the outdoor unit, so no refrigerant handling on site.
- For Boiler Upgrade Scheme funding the system must be MCS-designed and installed by an MCS-certified installer. Samsung warranty terms depend on approved installation and commissioning.
Delivery
Delivered on a tail-lift vehicle, kerbside, to mainland UK addresses. Heavy item delivery charge applies. Please check the unit for damage on delivery and note any damage on the paperwork before signing; unboxed or visibly damaged goods must be reported within 72 hours.
Full technical data (SCOP, sound power, dimensions, electrical data) is in the Samsung datasheet, available on request.
Recommended add-ons
- UK Cylinders FlowCyl heat pump cylinder: high-gain coil cylinder sized for low flow temperatures.
- UK Cylinders FlowCyl buffer vessel: adds system volume for defrost and protects run times.
- Samsung heat pump install kit (5–8kW): anti-freeze valves, magnetic filter, flexi hoses and feet, pump, diverter and sealed system kit.
- Samsung MWR-WW10N colour wired remote: an extra room controller.
- Samsung Wi-Fi Kit 2.0 (MIM-H04EN): only needed with the older MIM-E03EN kit; MIM-E03FN has Wi-Fi built in.
- Samsung MRW-TA remote temperature sensor, MOS-T1 2-zone thermistor kit and MHC-015EE base plate heater: coming soon, ask us to add them to your order.
- System protection: filters, anti-freeze and inhibitor and mounting and fixings.
Shop the Samsung EHS range
For standard flow temperatures see the Samsung R32 Gen 6 mono or the R290 mono.
Browse all Samsung air source heat pumps, heat pump packages or heat pump cylinders & buffers.
