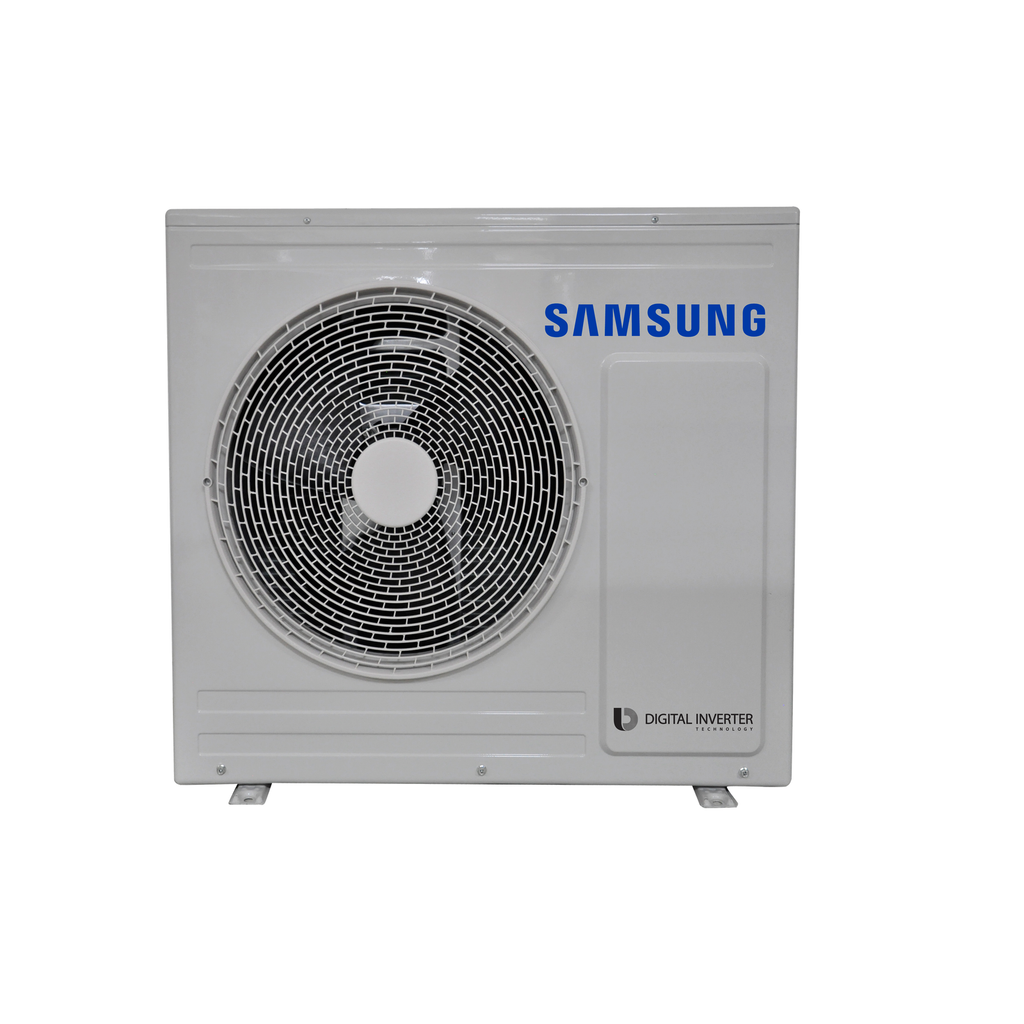

Samsung EHS Mono R32 Generation 6 Monobloc Heat Pump
Samsung Generation 6 R32 monobloc air to water heat pump for domestic heating and hot water, in 5, 8, 12 and 16kW outputs with single or three phase supply.
- R32 inverter monobloc: all refrigerant contained in the outdoor unit
- 5kW to 16kW, single phase (5–16kW) or three phase (8–16kW)
- Works with Samsung MIM control kits, ClimateHub mono tanks, Mono Hydrobox and pre-plumbed cylinders
- SmartThings app control with MIM-E03FN
Required with this unit: a Samsung control
A Samsung mono outdoor unit needs a controller to run. Choose "With MIM-E03FN control kit" (selected by default) for the 2-zone kit with 7" touch control and built-in Wi-Fi, priced in at £785.23.
Only choose "Unit only" if the system includes a Samsung ClimateHub mono tank, a Samsung Mono Hydrobox or a Samsung pre-plumbed cylinder (these have the control built in or pre-installed), or if you already have a compatible MIM kit such as the MIM-E03EN.
Models and prices
| Output | Supply | Model | Unit only | With MIM-E03FN |
|---|---|---|---|---|

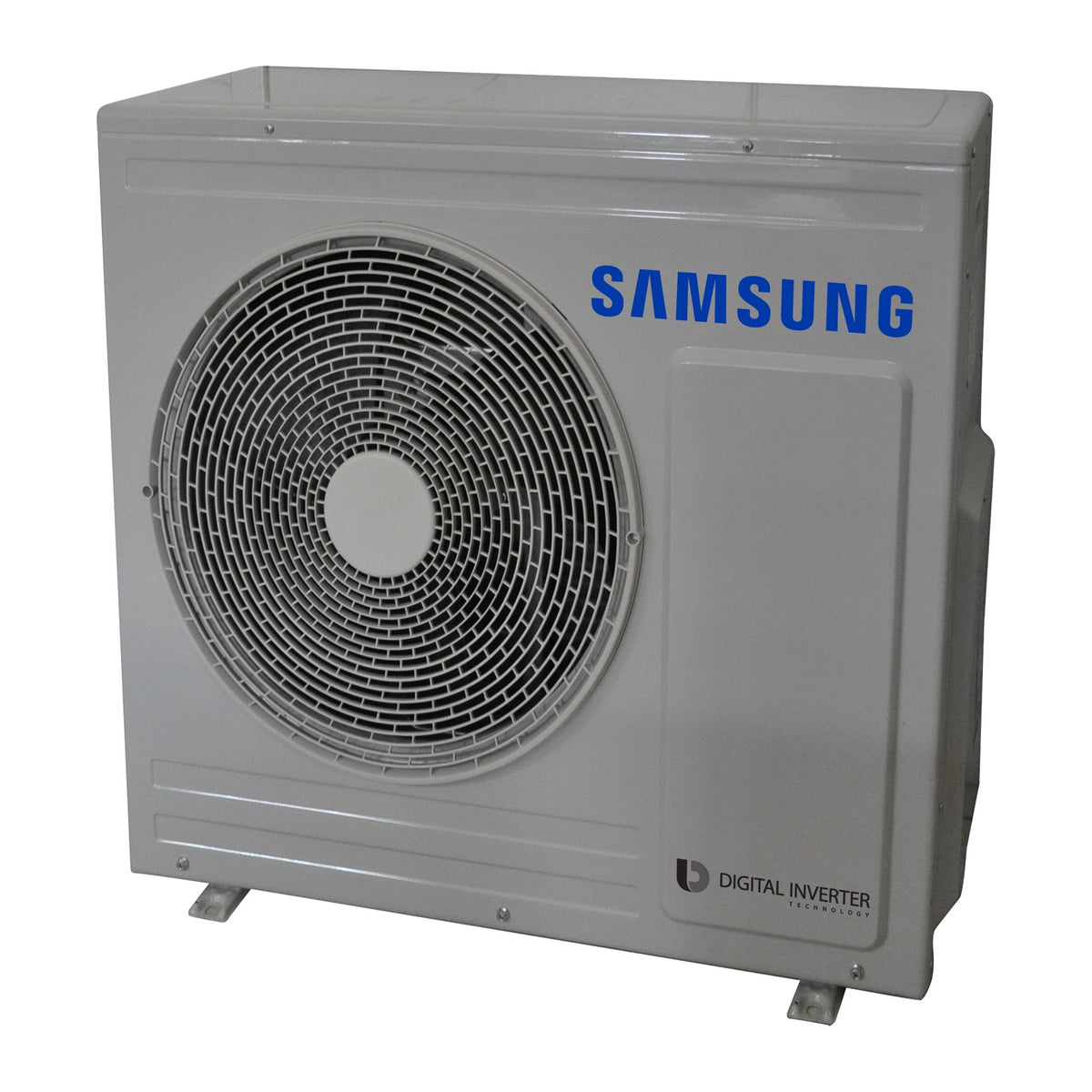

| 5kW | Single phase | AE050RXYDEG/EU | £2,408.83 | £3,194.06 |

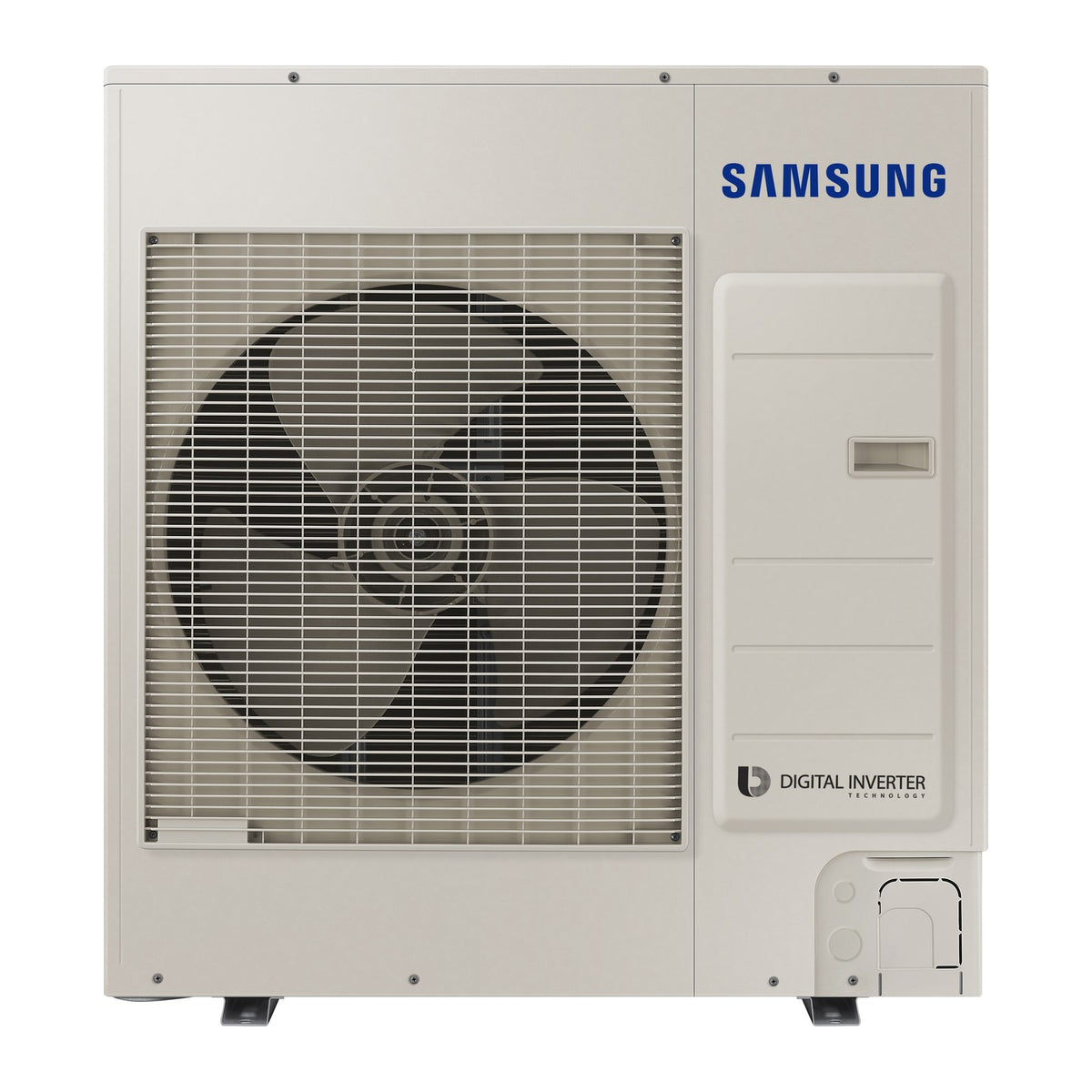

| 8kW | Single phase | AE080RXYDEG/EU | £2,841.79 | £3,627.02 |

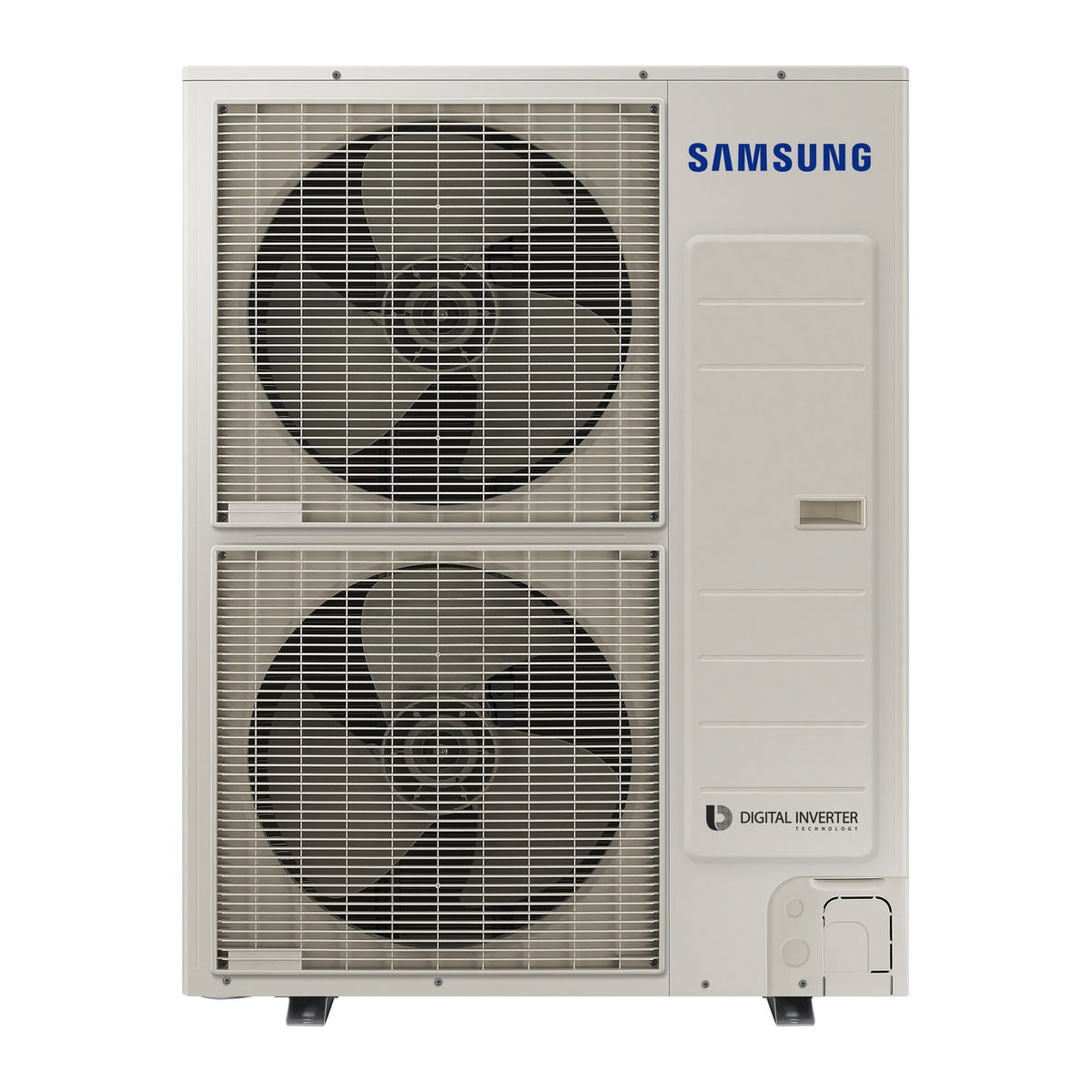

| 12kW | Single phase | AE120RXYDEG/EU | £4,140.67 | £4,925.90 |
| 16kW | Single phase | AE160RXYDEG/EU | £4,597.25 | £5,382.48 |
| 8kW | Three phase | AE080RXYDGG/EU | £3,071.06 | £3,856.29 |
| 12kW | Three phase | AE120RXYDGG/EU | £4,431.94 | £5,217.17 |
| 16kW | Three phase | AE160RXYDGG/EU | £4,921.97 | £5,707.20 |

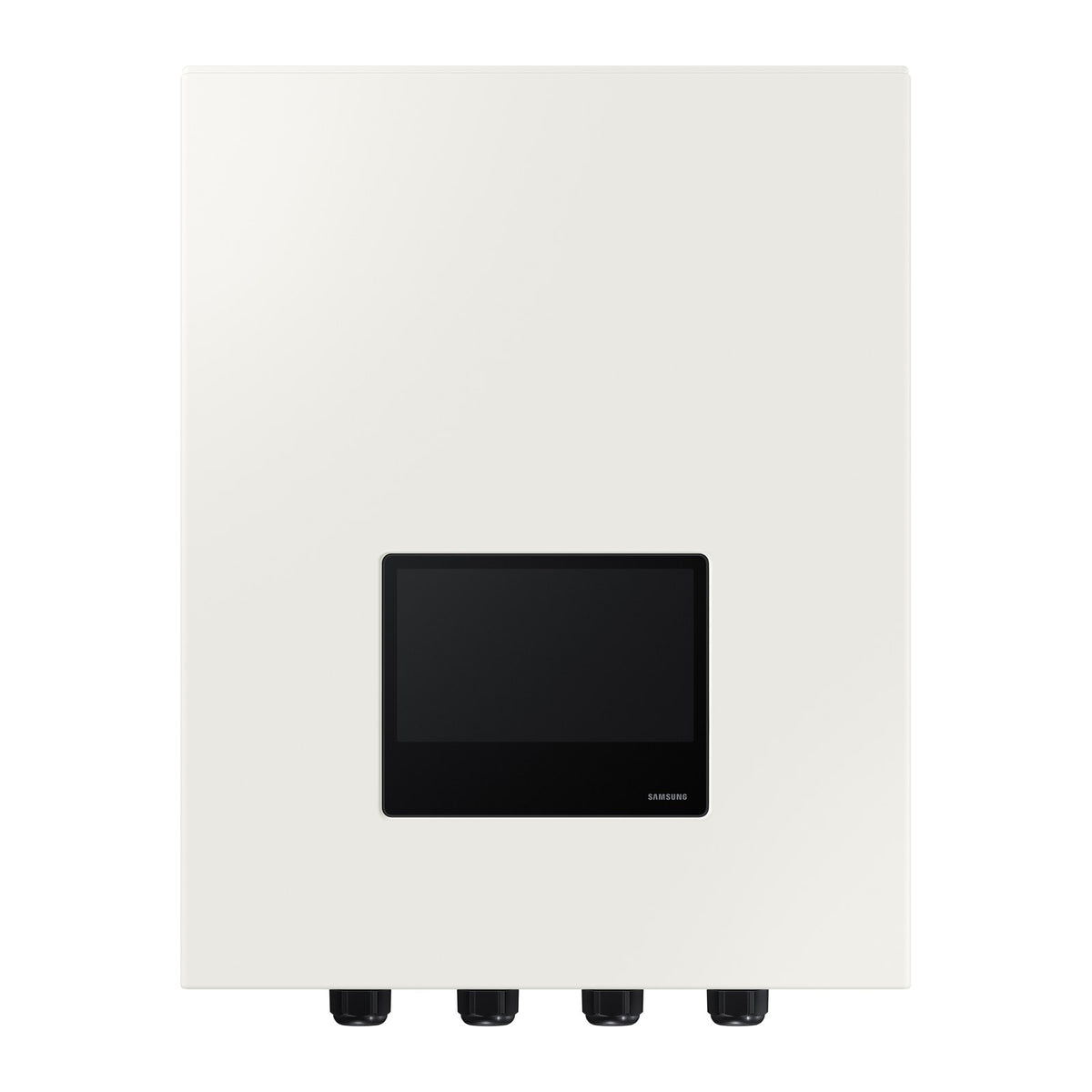

MIM-E03FN: 2-zone mono control kit with 7" touch control and Wi-Fi. Samsung lists it for both single and three phase models.
Installation and compliance
- Monobloc: the refrigerant circuit is sealed in the outdoor unit, so no refrigerant handling on site.
- For Boiler Upgrade Scheme funding the system must be MCS-designed and installed by an MCS-certified installer. Samsung warranty terms depend on approved installation and commissioning.
Delivery
Delivered on a tail-lift vehicle, kerbside, to mainland UK addresses. Heavy item delivery charge applies. Please check the unit for damage on delivery and note any damage on the paperwork before signing; unboxed or visibly damaged goods must be reported within 72 hours.
Full technical data (SCOP, sound power, dimensions, electrical data) is in the Samsung datasheet, available on request.
Recommended add-ons
- UK Cylinders FlowCyl heat pump cylinder: high-gain coil cylinder sized for low flow temperatures.
- UK Cylinders FlowCyl buffer vessel: adds system volume for defrost and protects run times.
- Samsung heat pump install kit (5–8kW): anti-freeze valves, magnetic filter, flexi hoses and feet, pump, diverter and sealed system kit.
- Samsung MWR-WW10N colour wired remote: an extra room controller.
- Samsung Wi-Fi Kit 2.0 (MIM-H04EN): only needed with the older MIM-E03EN kit; MIM-E03FN has Wi-Fi built in.
- Samsung MRW-TA remote temperature sensor, MOS-T1 2-zone thermistor kit and MHC-015EE base plate heater: coming soon, ask us to add them to your order.
- System protection: filters, anti-freeze and inhibitor and mounting and fixings.
