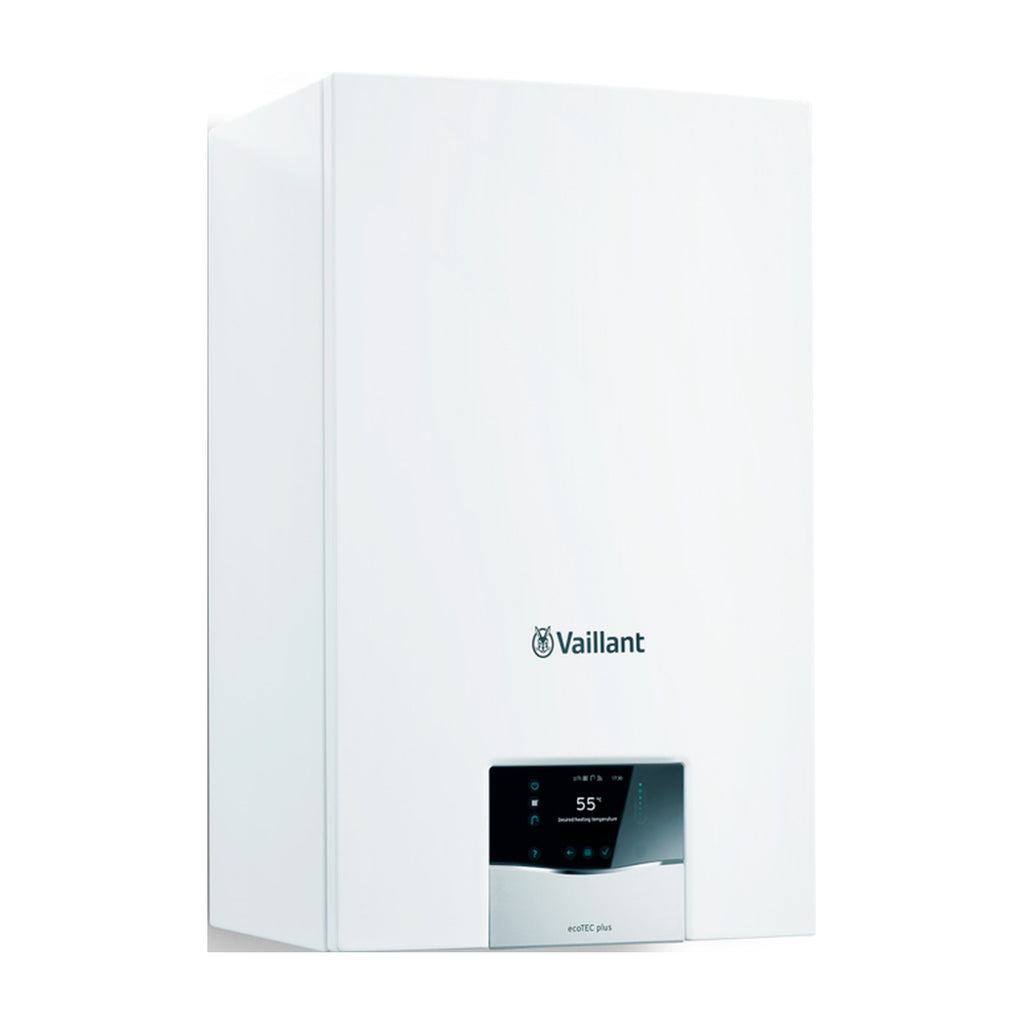

Vaillant ecoTEC plus System Boiler 10kW-35kW
The current Vaillant ecoTEC plus 600 system boiler (610 to 635) heats the radiators directly and supplies an unvented or vented hot water cylinder, with the pump and expansion vessel built in. Natural gas, with automatic LPG adaption on most outputs (not the 635).
Key points
- 10, 15, 20, 25, 30 and 35kW outputs; modulates down to 2.8kW (610-620)
- 720 x 440 x 352mm (635: 386mm deep)

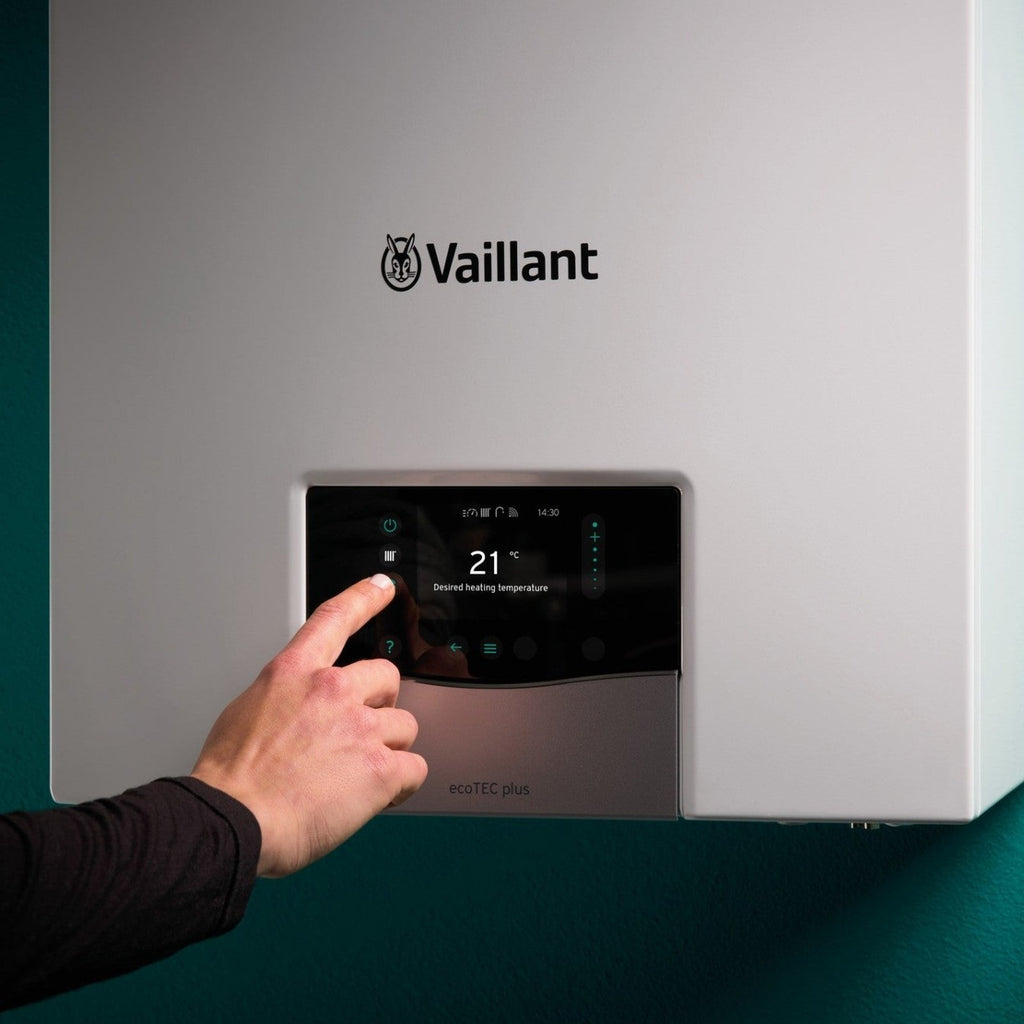

- Semi-touch interface with guided commissioning; IoniDETECT combustion monitoring
- Stainless steel heat exchanger; ErP A
- Smart home ready with myVAILLANT connect; compatible with Vaillant eBUS controls and standard S-plan/Y-plan wiring
Required with this boiler: a flue kit
Vaillant supplies this boiler without a flue. The Flue kit selector above Add to cart adds the Vaillant 60/100 horizontal flue kit 0.7m (0010039324) by default, as a separate line in your basket. Choose the 60/100 vertical flue kit for a roof exit, and add extensions for longer runs.
Only choose "I already have this" if you already have a compatible Vaillant ecoTEC 60/100 flue kit. Check maximum flue lengths and terminal positions in the installation manual.
What's included
- 1 x Vaillant ecoTEC plus system boiler in the output you select, as supplied by Vaillant (boiler, wall bracket and instructions)
- No flue included: choose your flue kit with the selector above Add to cart
Specification and price
Connections: 15mm gas, 22mm heating flow and return. ErP A.
| Model | Output (50/30°C) | Weight | Part number | Our code | Price (inc VAT) |
|---|---|---|---|---|---|
| ecoTEC plus 610 | 2.8-10.6kW | 34kg | 0010036009 | PLUMHEAT0065 | £1,468.99 |
| ecoTEC plus 615 | 2.8-15.9kW | 34kg | 0010036010 | - | £1,504.99 |
| ecoTEC plus 620 | 2.8-21.2kW | 34kg | 0010036011 | - | £1,799.99 |
| ecoTEC plus 625 | 3.9-26.5kW | 36kg | 0010036012 | - | £1,914.99 |
| ecoTEC plus 630 | 4.2-32.2kW | 36kg | 0010036013 | PLUMHEAT0070 | £2,059.99 |
| ecoTEC plus 635 | 5.0-37.7kW | 40.5kg | 0010036014 | - | £2,517.99 |
Recommended add-ons
Tick these in the add-on list above Add to cart, or follow the links:
- Vaillant Boiler Protection Kit 22mm: Vaillant's own magnetic filter, part of its extended guarantee terms.
- Vaillant 60/100 flue extension: for longer flue runs.
- EPH A27-HW 2-zone programmer: heating and hot water timing for S-plan or Y-plan.
- EPH CP4 wireless programmable thermostat pack: wireless room control.
Installation and guarantee
Installation must be by a Gas Safe registered engineer (oil: OFTEC registered) and commissioned with the Benchmark checklist. Manufacturer guarantees require registration after installation and annual servicing; extended guarantee terms are the manufacturer's and may require their approved filter/installer.
Delivery and collection
Delivered by pallet/courier (£29.99 per order) or collect free from Leafbridge, Lincoln. Order-in boilers usually 2-4 working days.
Vaillant's ecoTEC plus combi and system installation manual, air/flue installation manual and domestic range brochure are in the PDF downloads at the bottom of this page.
Shop the Vaillant ecoTEC range
- Vaillant ecoTEC plus combi 26-40kW
- Vaillant ecoTEC plus 940 storage combi 40kW
- Vaillant ecoTEC plus regular (open vent) boiler 12-35kW
- Vaillant ecoTEC pro combi 24-30kW
Flues and accessories: horizontal flue kit · vertical flue kit · flue extensions · Boiler Protection Kit. Browse all boilers and Vaillant.
Pair it with an unvented hot water cylinder and an expansion vessel.
