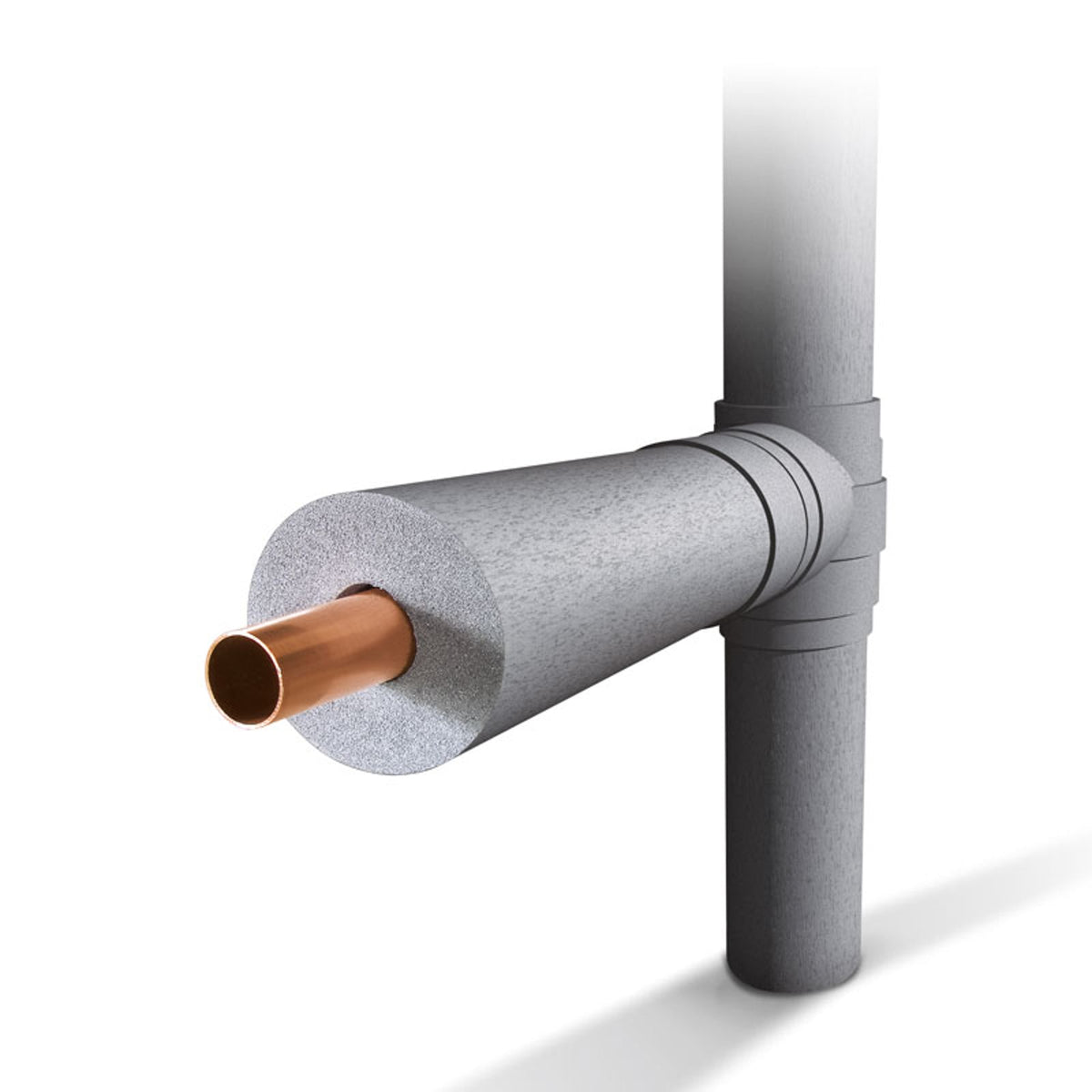

Armacell ArmaLight Tubolit DG Polyethylene Pipe Insulation, 2m Lengths
Armacell Tubolit DG is grey, closed-cell polyethylene foam pipe insulation (lagging) from Armacell's ArmaLight range, supplied in 2 metre lengths, slit along its length so it pushes straight over installed copper or plastic pipe. We stock 13mm wall for general heating and hot and cold water pipework, and 19mm wall for heat pump primaries and runs where a thicker insulation layer is specified.
- Armacell ArmaLight Tubolit DG, factory-made polyethylene foam (PEF) to EN 14313
- Declared thermal conductivity λ ≤ 0.040 W/(m·K) at 40°C mean
- Reaction to fire C(L)-s1,d0 (EN 13501-1) for 9mm to 19mm wall: low smoke, self-extinguishing
- Maximum operating temperature 100°C
- Also reduces structure-borne pipe noise (up to 30 dB(A), EN ISO 3822-1)
- 2 metre lengths, sold individually
Is the 19mm wall the same product?
Yes. Armacell's UK Tubolit DG range is made in 9mm, 13mm, 19mm and 25mm walls from the same grey PE foam, covered by the same technical datasheet. The 19mm wall has the same thermal conductivity and the same C(L)-s1,d0 fire class as the 13mm; it simply gives a thicker insulation layer.
What's included
One 2 metre length of pipe insulation in the size selected.
Sizes and prices
| Pipe size | Wall thickness | Length | Armacell code | Price (inc VAT) |
|---|---|---|---|---|
| 15mm | 13mm | 2m | TL-15/13-DGU | £2.49 |
| 22mm | 13mm | 2m | TL-22/13-DGU | £2.99 |
| 28mm | 13mm | 2m | TL-28/13-DGU | £3.69 |
| 35mm | 13mm | 2m | TL-35/13-DGU | £5.49 |
| 15mm | 19mm | 2m | TL-15/19-DGU | £4.99 |
| 22mm | 19mm | 2m | TL-22/19-DGU | £6.99 |
| 28mm | 19mm | 2m | TL-28/19-DGU | £7.99 |
Specification
| Material | Closed-cell polyethylene foam (PEF) to EN 14313, grey |
| Thermal conductivity | λd ≤ 0.040 W/(m·K) at 40°C (EN ISO 8497) |
| Reaction to fire | C(L)-s1,d0, 9mm to 19mm wall (EN 13501-1) |
| Operating temperature | Up to 100°C |
| Length | 2m |
Downloads
Download the Armacell Tubolit DG datasheet and range brochure (PDF)
Options
Choose the size to match your pipe's outside diameter and the wall thickness you need. Insulation is supplied per 2 metre length; add the quantity of lengths you need to cover the run.
Installation and compliance
Push the insulation over the pipe through the slit, butt joints tightly together and seal joints, bends and the slit with insulation tape for the best result. Armacell recommends ArmaFlex 520 adhesive where joints are glued. Tubolit DG is designed for pipework inside the building; for outdoor runs, such as heat pump primaries, use a UV-protected external insulation like Primary Pro. Check the insulation thickness required by your heat pump manufacturer, MCS design or Building Regulations Part L for your application.
Delivery and collection
Free UK delivery on orders over £50, £4.99 on orders under £50. Free collection from our Lincoln unit, usually ready within 24 hours.
