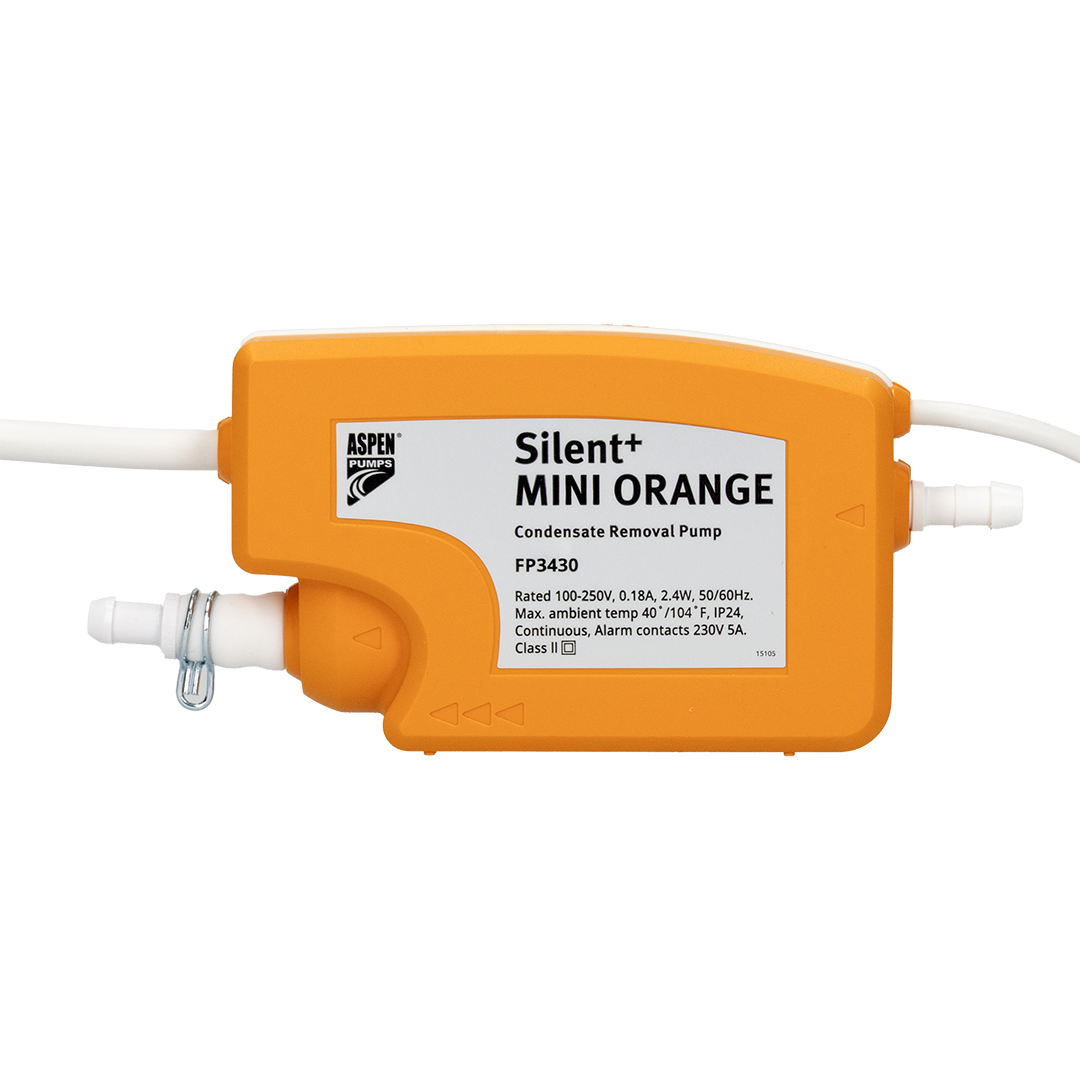

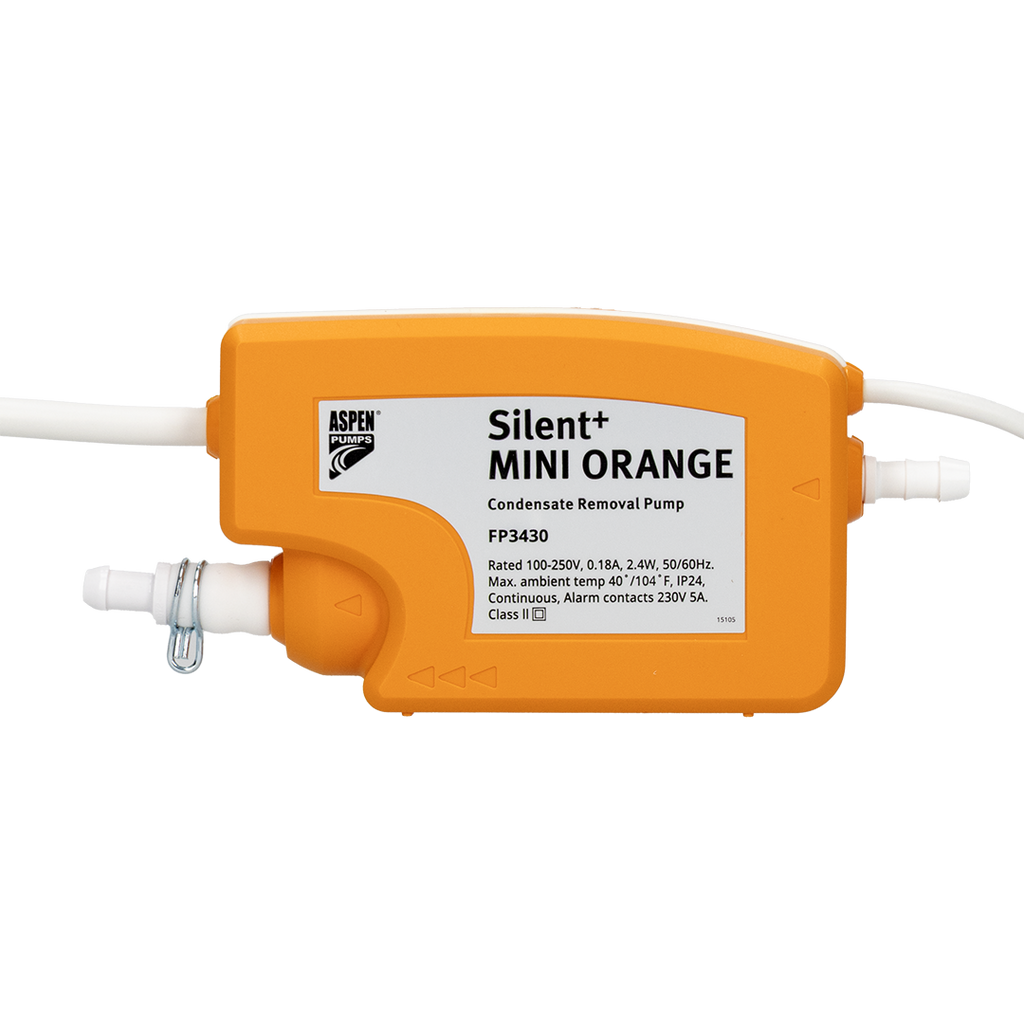

Aspen Silent+ Mini Orange Gen 5 Condensate Pump (FP3430)

The Aspen Silent+ Mini Orange Gen 5 is a quiet, variable-speed mini condensate pump for ducted units, floor-standing and chassis units and high wall split air conditioning and air-to-air heat pump units up to 40kW (136,000 Btu/h). Capacitance sensing adjusts the flow to the amount of condensate, so the pump runs only as hard as it needs to. It suits installation in a ceiling void or similar space where gravity drainage isn't possible.

• Maximum flow 35 L/h at 0m head, maximum recommended head 10m, maximum suction lift 1.5m
• Quiet operation: as low as 16 dB(A) at 1m (Aspen figure, solid wall construction with a 2kW unit)
• Capacitance sensing with variable-speed, on-demand operation
• Self-priming
• 5A normally closed safety switch to stop the indoor unit if the pump can't keep up
• 100-250V AC 50/60Hz, 2.4W, Class II, IP24
• 3 year manufacturer's warranty

What's included

• Silent+ Mini Orange Gen 5 pump
• Reservoir with filter and lid
• 1.5m plug and play cable
• 1.5m clear PVC tube
• 150mm clear vent hose
• 220mm inlet hose
• Drain connector kit (straight connector and rubber elbow)
• Quick start guide

Specification and price

Options

The Gen 5 plug and play cable is not backwards compatible with earlier Mini Orange models, so replace the pump and cable together. For a smaller high wall pump, see the Aspen Mini Blanc. For a pump hidden inside trunking, see the Aspen Silent+ Mini Lime trunking kit.

Installation and compliance

Install to Aspen's instructions and the indoor unit manufacturer's requirements. The pump needs a permanent mains supply, so the electrical connection (including the safety switch) should be made by a competent person in line with BS 7671. Run the discharge to a suitable drain.

Delivery and collection

Free UK delivery on orders over £50, £4.99 on orders under £50. Free collection from our Lincoln unit, usually ready within 24 hours.

Manufacturer datasheet is in the PDF downloads at the bottom of this page.
