Samsung EHS ClimateHub Mono Tank 200L–260L
£3,899.99
Taxes included.
Free Shipping
On orders over £100* (On Select Products)
Secure Payment
100% secure checkout
Easy Returns
30-day return policy
Pickup available at F3 Castings Way, Leafbridge, Castings Way, Lincoln
Usually ready in 24 hours

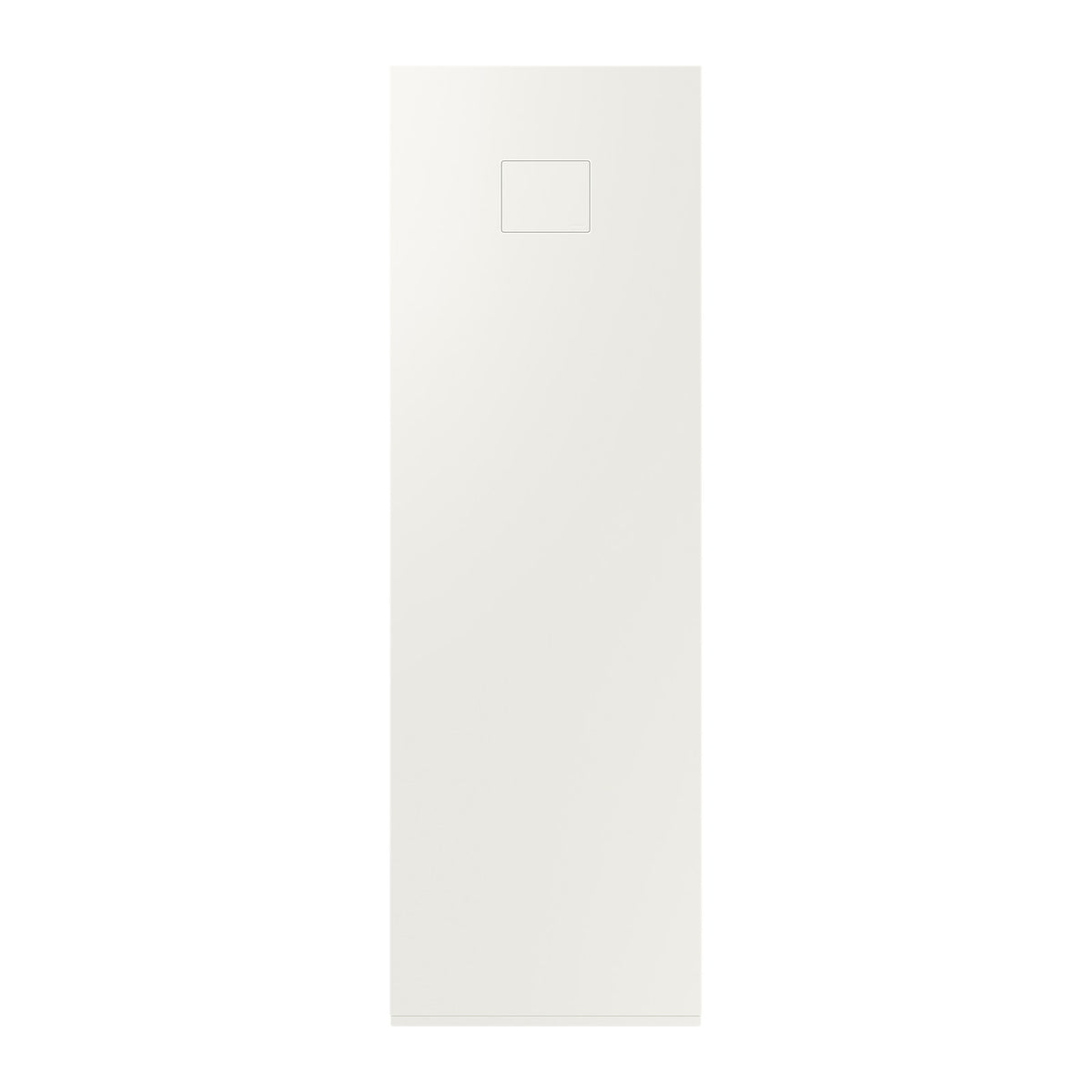

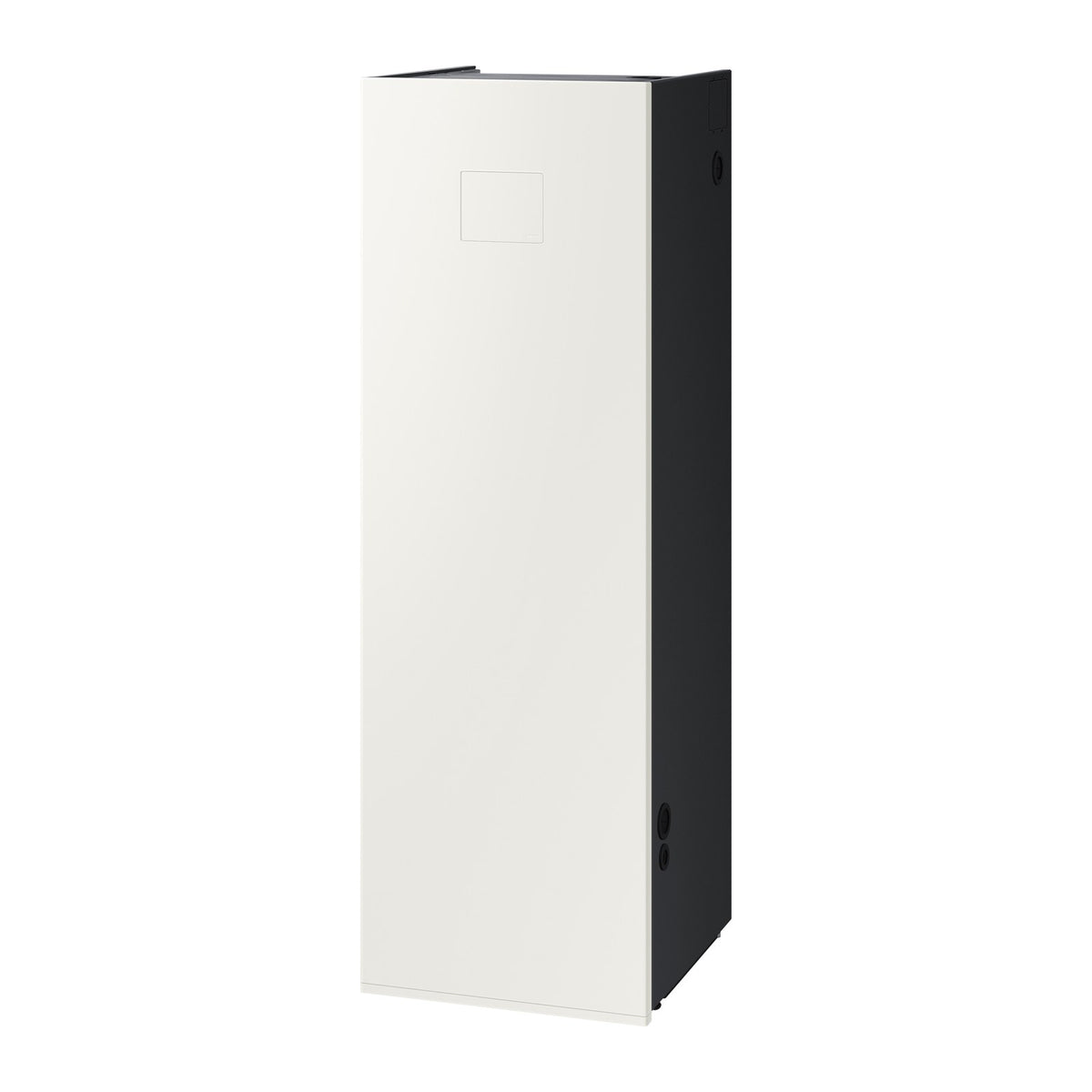

Samsung EHS ClimateHub Mono Tanks 200L–260L
Samsung ClimateHub for monobloc heat pumps: an indoor unit that combines the hydraulic module, controls and a stainless steel hot water cylinder in one floor-standing cabinet. Pairs with any Samsung R32 or R290 mono, so no separate MIM control kit or cylinder is needed.
- ClimateHub 2.0: 200L in a 600×600mm footprint, 7" touch control and Wi-Fi included, works with single and three phase outdoor units
- ClimateHub 1.5: 260L, Wi-Fi included, single or three phase versions
- Replaces the MIM control kit and separate cylinder: one tidy indoor unit
- Works with Samsung Mono R32 Gen 6 and Mono R290 outdoor units
Also required: a G3 kit, and a Samsung mono outdoor unit
Samsung requires a G3 unvented safety kit for each ClimateHub installation; it is not supplied by Samsung. Ask us and we will quote one with your order.
Choose your outdoor unit from the Mono R32 Gen 6 or Mono R290 ranges and in the Control kit selector choose "I already have this / it is supplied with my system": the ClimateHub has the control built in.
Models and prices
| Model | Code | Price |
|---|---|---|
| 200L ClimateHub 2.0 (600×600mm, 7" touch control & Wi-Fi) | AE200DNWMPK/EU | £3,899.99 |
| 260L ClimateHub 1.5, single phase (Wi-Fi) | AE260CNWMEG/EU | £3,379.99 |
| 260L ClimateHub 1.5, three phase (Wi-Fi) | AE260CNWMGG/EU | £3,729.99 |
Installation and compliance
- For Boiler Upgrade Scheme funding the system must be MCS-designed and installed by an MCS-certified installer.
- Samsung warranty terms depend on approved installation and commissioning.
Delivery
Supplied to order from Samsung and delivered on a tail-lift vehicle, kerbside, to mainland UK addresses. Heavy item delivery charge applies. Check the goods on delivery and note any damage before signing; unboxed or visibly damaged goods must be reported within 72 hours.
Recommended add-ons
- Samsung MHC-400FE 4kW or MHC-600FE 6kW tank backup heater (ClimateHub 1.5 only).
- Homely smart thermostat kit with Samsung Modbus interface.
- Samsung MWR-WW10N wired remote: an extra room controller.
- System protection: filters, anti-freeze and inhibitor.
Shop the Samsung EHS range
Pair it with a Samsung R290 mono for high flow temperatures.
- Samsung EHS Mono R32 Gen 6 heat pump 5–16kW
- Samsung EHS Mono R290 heat pump 5–16kW
- Samsung EHS Mono R290 with integral hydro (pump & control kit) 5–16kW
- Samsung EHS Mono HT Quiet R32 8–14kW
- Samsung Mono Hydrobox AE160DNYMPK
- Samsung EHS Split R32 heat pump 4–16kW
Browse all Samsung air source heat pumps, Samsung EHS or heat pump cylinders & buffers.
