Samsung EHS Split R32 Air Source Heat Pump 4kW–16kW
£3,652.61
Taxes included.
Free Shipping
On orders over £100* (On Select Products)
Secure Payment
100% secure checkout
Easy Returns
30-day return policy
Pickup available at F3 Castings Way, Leafbridge, Castings Way, Lincoln
Usually ready in 2-4 days
Samsung EHS Split R32 Air to Water Heat Pump

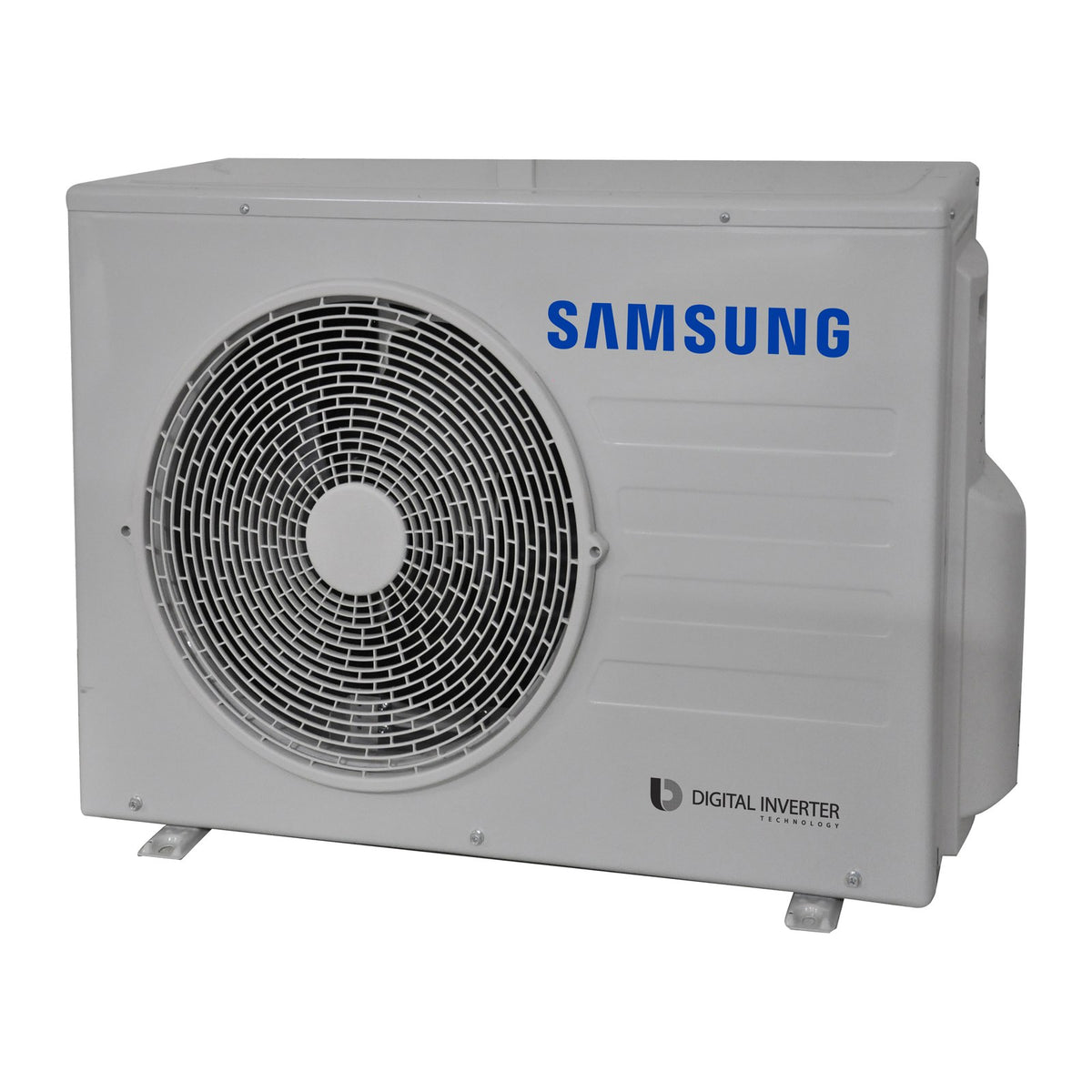

Samsung EHS R32 split air to water heat pump: a compact outdoor unit connected by refrigerant pipework to an indoor hydro unit or ClimateHub, so there is no water pipework outside and no frost risk to the primary circuit.
- R32 split outdoor units from 4kW to 16kW, single or three phase
- Pairs with the Samsung hydro split unit (4–16kW) or ClimateHub integrated tanks
- No external water pipework: lower frost risk and smaller outdoor footprint
- Controller and Wi-Fi included with the hydro unit and 200L ClimateHub
Required with this unit: a Samsung split indoor unit
A split outdoor unit needs a Samsung indoor hydro unit or ClimateHub to work. Choose one in the "Indoor unit" option (the hydro split unit is selected by default):
- Hydro split unit AE160DNYSPG (£2,543.64): wall-hung, 4–16kW, controller and Wi-Fi included. Pair with a FlowCyl heat pump cylinder for hot water.
- 200L split ClimateHub AE200DNWSPG (£5,543.86): integrated hydro unit and 200L cylinder, controller included, suits all outputs.
- 260L split ClimateHub, single or three phase: 4–9kW outdoor units only. Supplied without a controller, so the MWR-WW10N remote (£118.80) is included in this option.
Only choose "Outdoor unit only" if you already have a compatible Samsung split indoor unit. ClimateHub tanks need a G3 kit, bought separately.
Outdoor units
| Output | Supply | Model | Outdoor only | Indoor options |
|---|---|---|---|---|
| 4kW | Single phase | AE040RXEDEG/EU | £1,108.97 | 4–9kW range: hydro unit, 200L or 260L ClimateHub |
| 6kW | Single phase | AE060RXEDEG/EU | £1,370.71 | 4–9kW range: hydro unit, 200L or 260L ClimateHub |
| 9kW | Single phase | AE090RXEDEG/EU | £1,747.58 | 4–9kW range: hydro unit, 200L or 260L ClimateHub |
| 9kW | Three phase | AE090RXEDGG/EU | £1,882.39 | 4–9kW range: hydro unit, 200L or 260L ClimateHub |

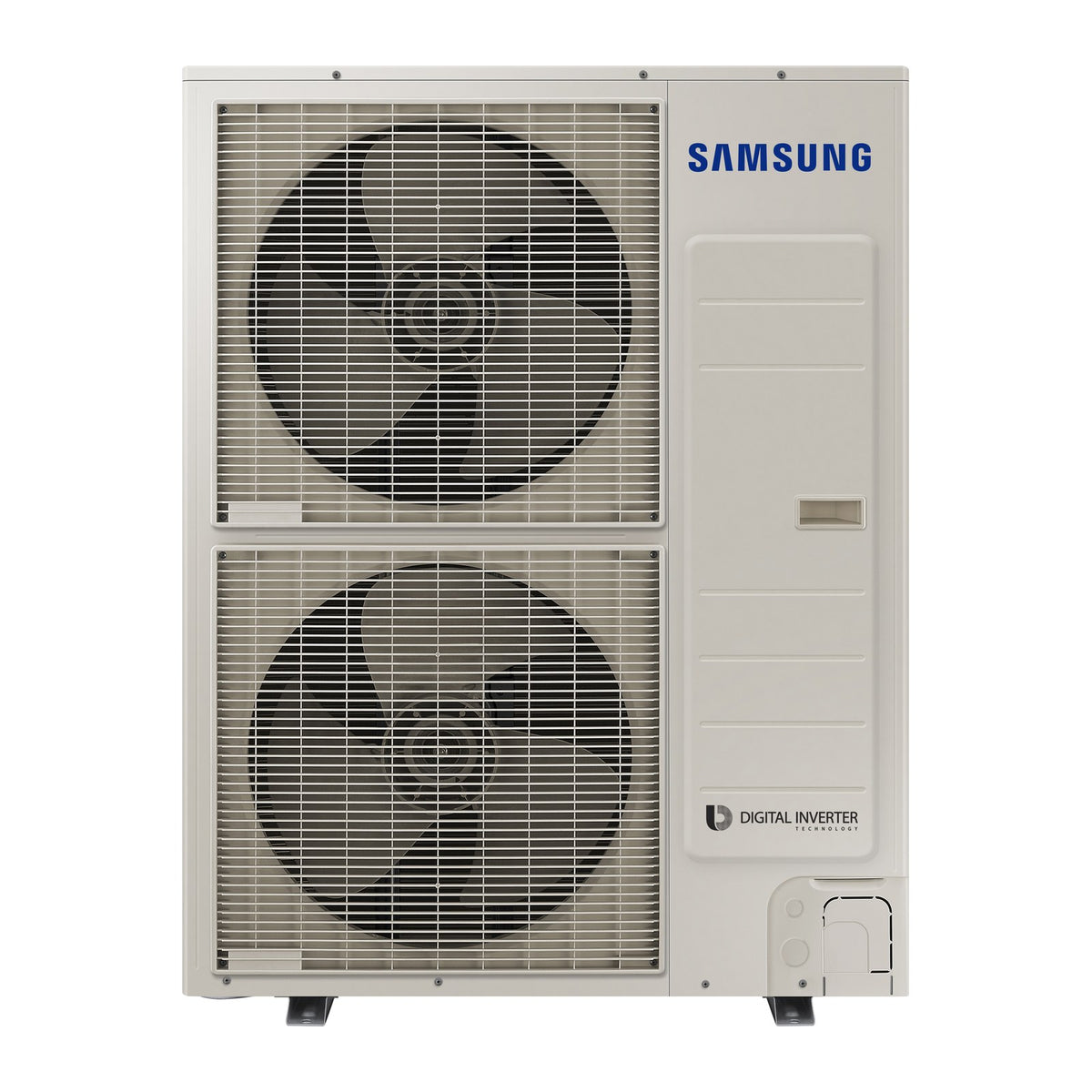

| 12.5kW | Single phase | AE125DXEDEG/EU | £2,544.62 | 12.5–16kW range: hydro unit or 200L ClimateHub |
| 16kW | Single phase | AE160DXEDEG/EU | £2,901.82 | 12.5–16kW range: hydro unit or 200L ClimateHub |
| 12.5kW | Three phase | AE125DXEDGG/EU | £2,705.02 | 12.5–16kW range: hydro unit or 200L ClimateHub |
| 16kW | Three phase | AE160DXEDGG/EU | £3,058.27 | 12.5–16kW range: hydro unit or 200L ClimateHub |
Installation and compliance
- Split system: R32 refrigerant pipework between outdoor and indoor units. Installation, pipework and commissioning must be carried out by an F-Gas certified engineer; we need your F-Gas certificate before dispatch.
- For Boiler Upgrade Scheme funding the system must be MCS-designed and installed by an MCS-certified installer.
Delivery
Delivered on a tail-lift vehicle, kerbside, to mainland UK addresses. Heavy item delivery charge applies. Check for damage on delivery and note it on the paperwork; report unboxed or damaged goods within 72 hours.
Full technical data is in the Samsung datasheet, available on request.
Recommended add-ons
- UK Cylinders FlowCyl heat pump cylinder: hot water with the hydro split unit.
- UK Cylinders FlowCyl buffer vessel: system volume for defrost.
- Samsung Wi-Fi Kit 2.0 (MIM-H04EN): app control for the 260L ClimateHub.
- Samsung MWR-WW10N wired remote: an extra room controller.
- Samsung MHC-015EE base plate heater, MRW-TA remote sensor, MHC-400FE/600FE tank backup heaters: ask us to add them.
- Refrigerant pipework and installation: pipework and connections, mounting and fixings.
Shop the Samsung EHS range
No refrigerant work on site? See the Samsung monobloc range: R32 Gen 6 mono 5kW–16kW, R290 mono 5kW–16kW and HT Quiet mono 8kW–14kW.
Browse all Samsung air source heat pumps or heat pump cylinders & buffers.
